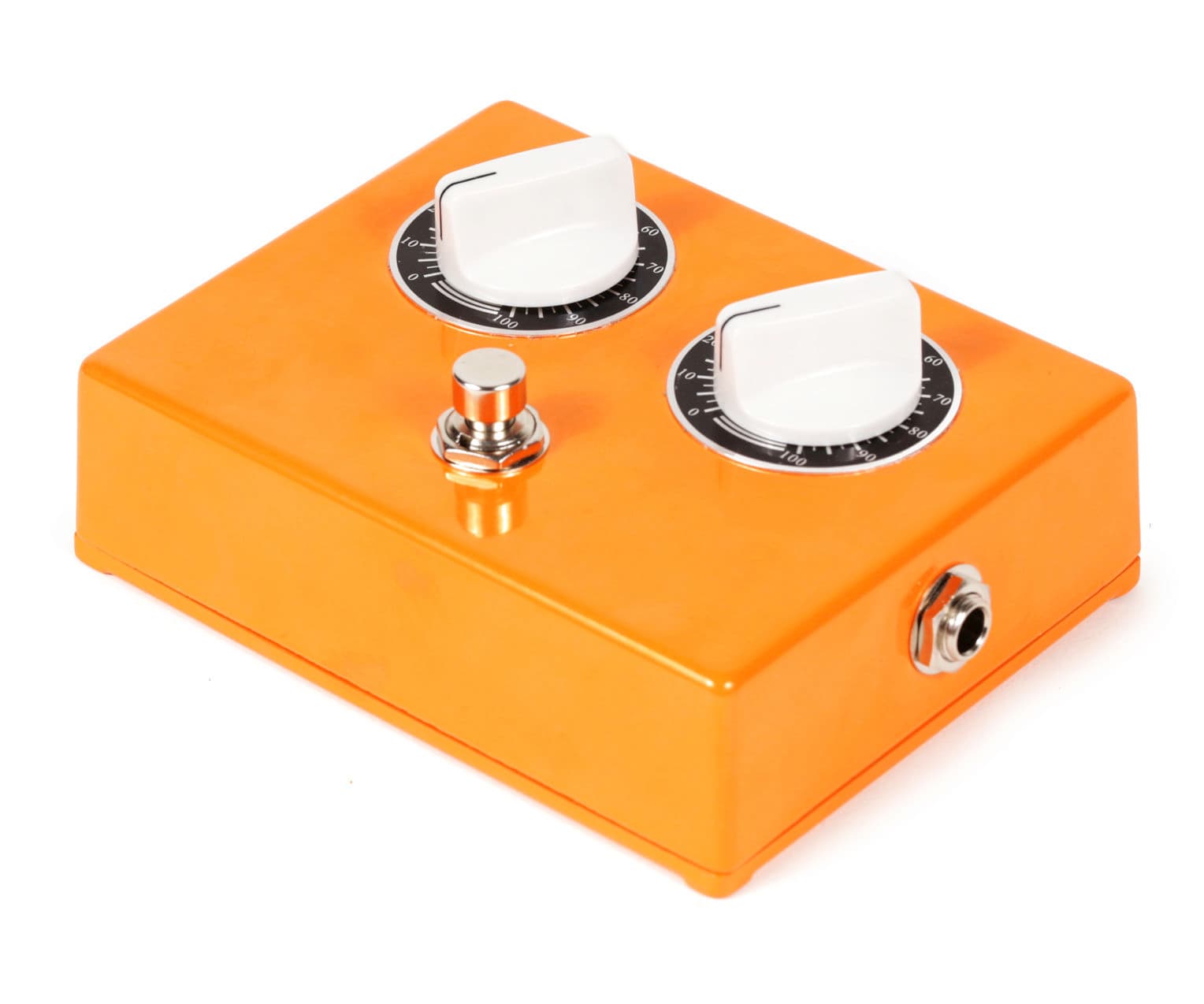

Making a DIY guitar fuzz pedal is a fun and easy electronics weekend project for hobbyists and guitarists alike. Making a classic fuzz pedal is much easier than you think. It just uses two transistors and a handful of other components. Aside from sharing the schematic, throughout this project I will also be going over basic tips and tricks for guitar pedal construction.
If you would like to learn more about electronics and reading schematics, check out the free Electronics Class!
Steps
1

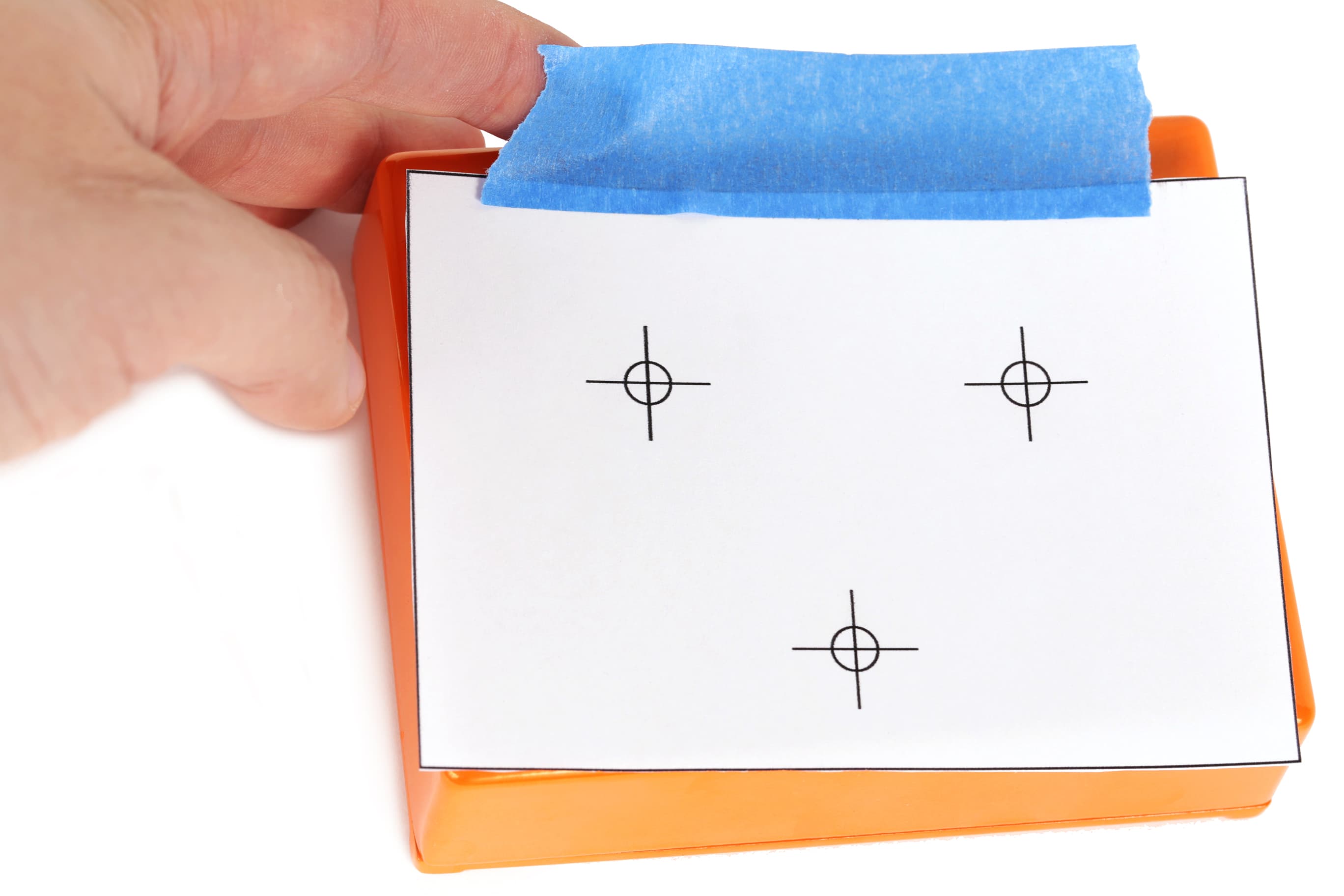

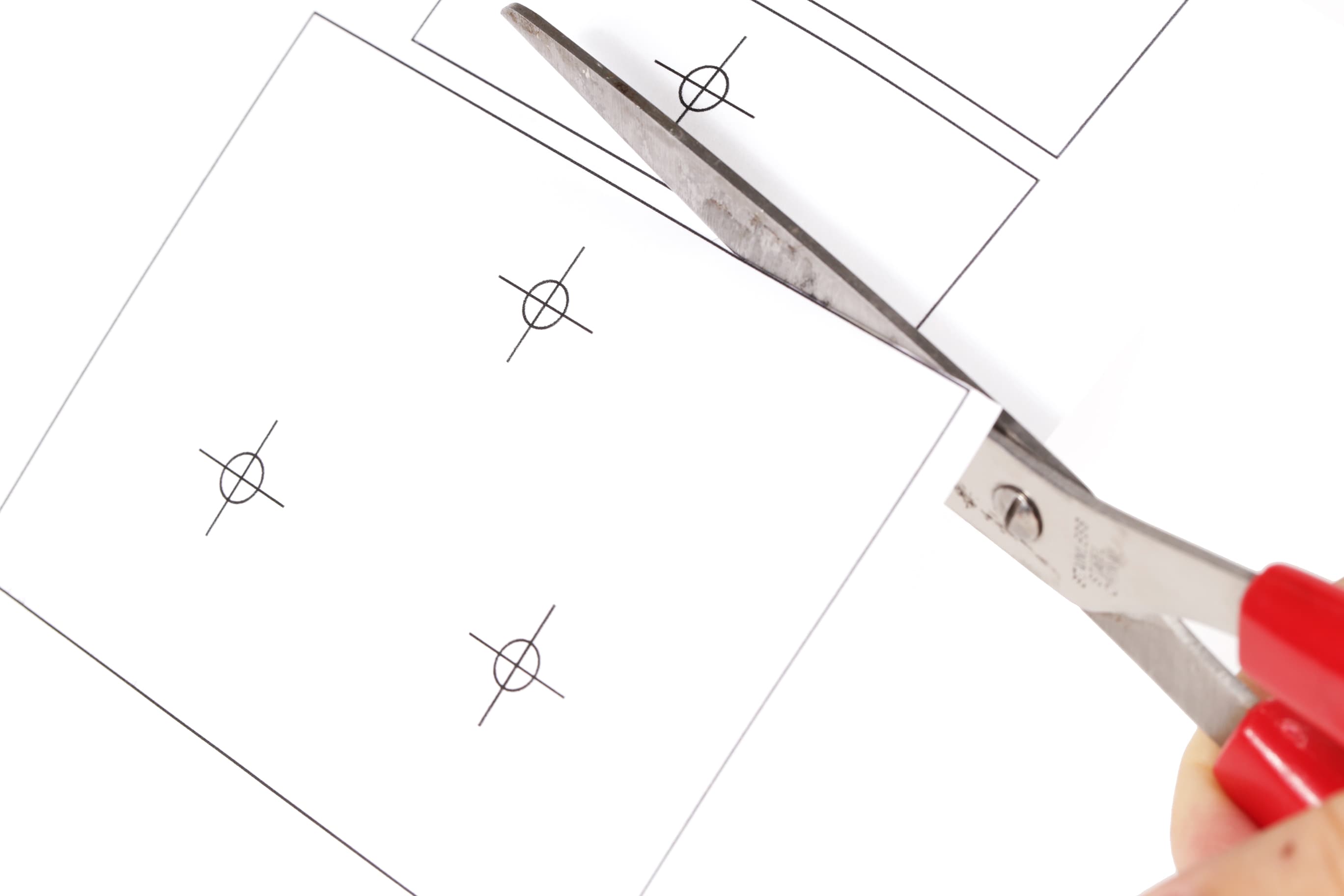

Attach the Drilling Guides
Attach the Drilling Guides
Attach the Drilling Guides
Attach the Drilling Guides

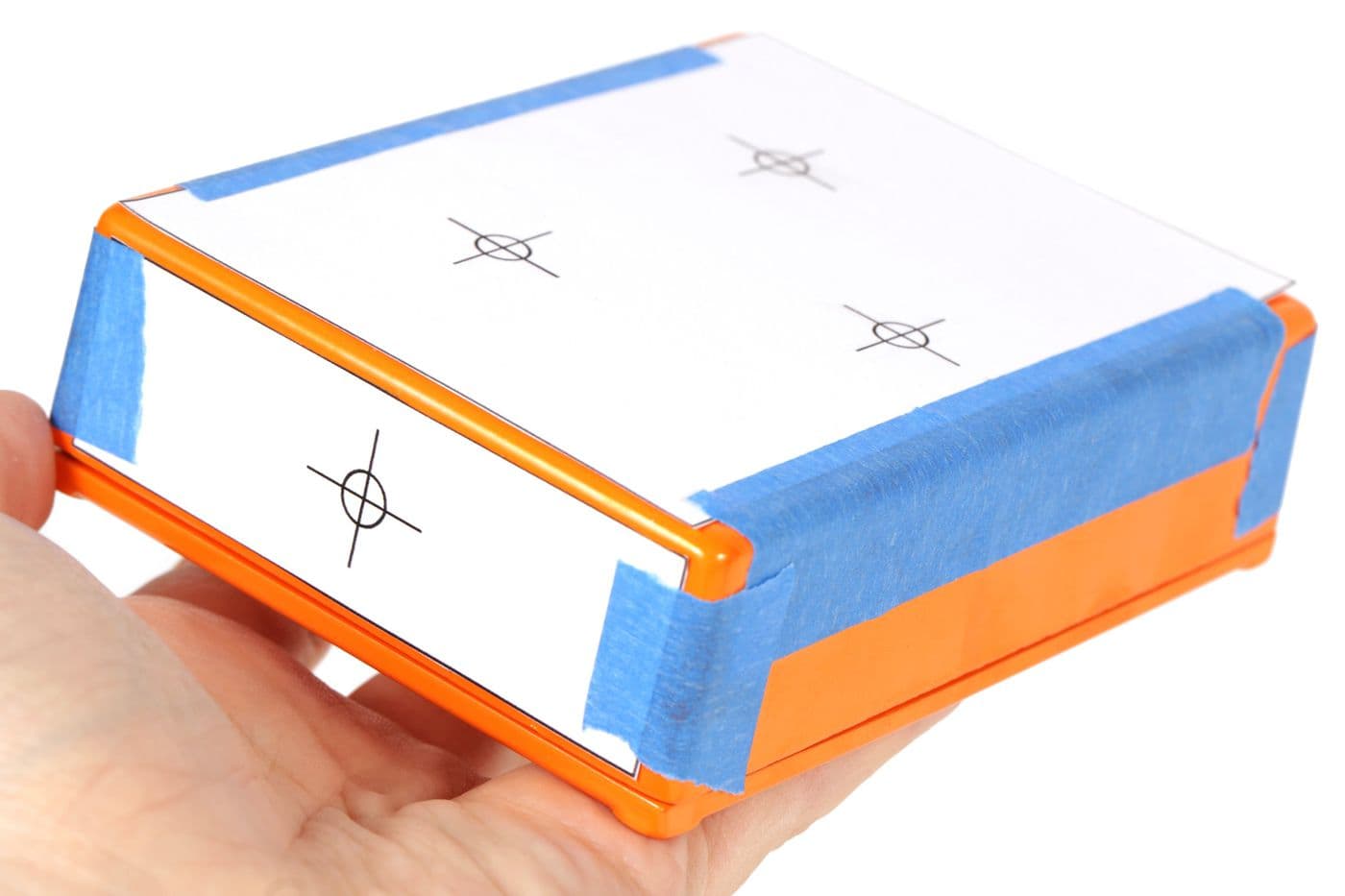

Cut out the drilling guides and attach them with masking tape centered upon the top and side faces of the enclosure (as appropriate).
2

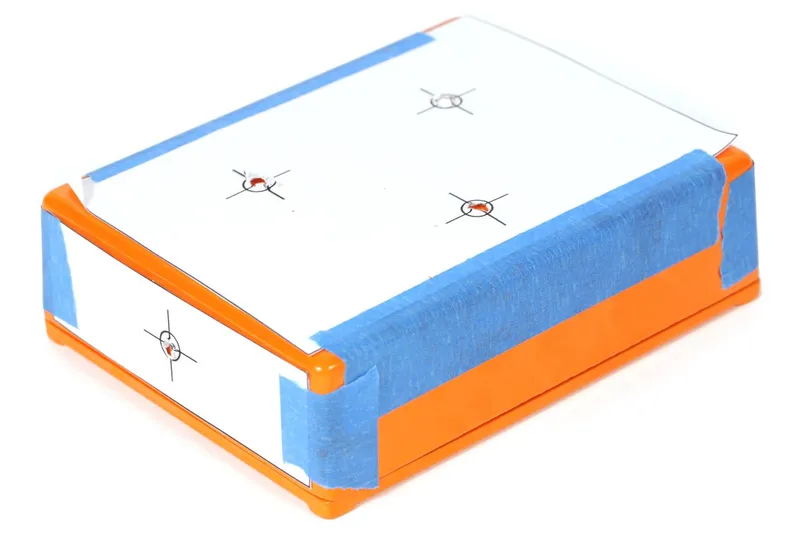

Mark the Centers
Mark the Centers
Mark the Centers
Mark the Centers

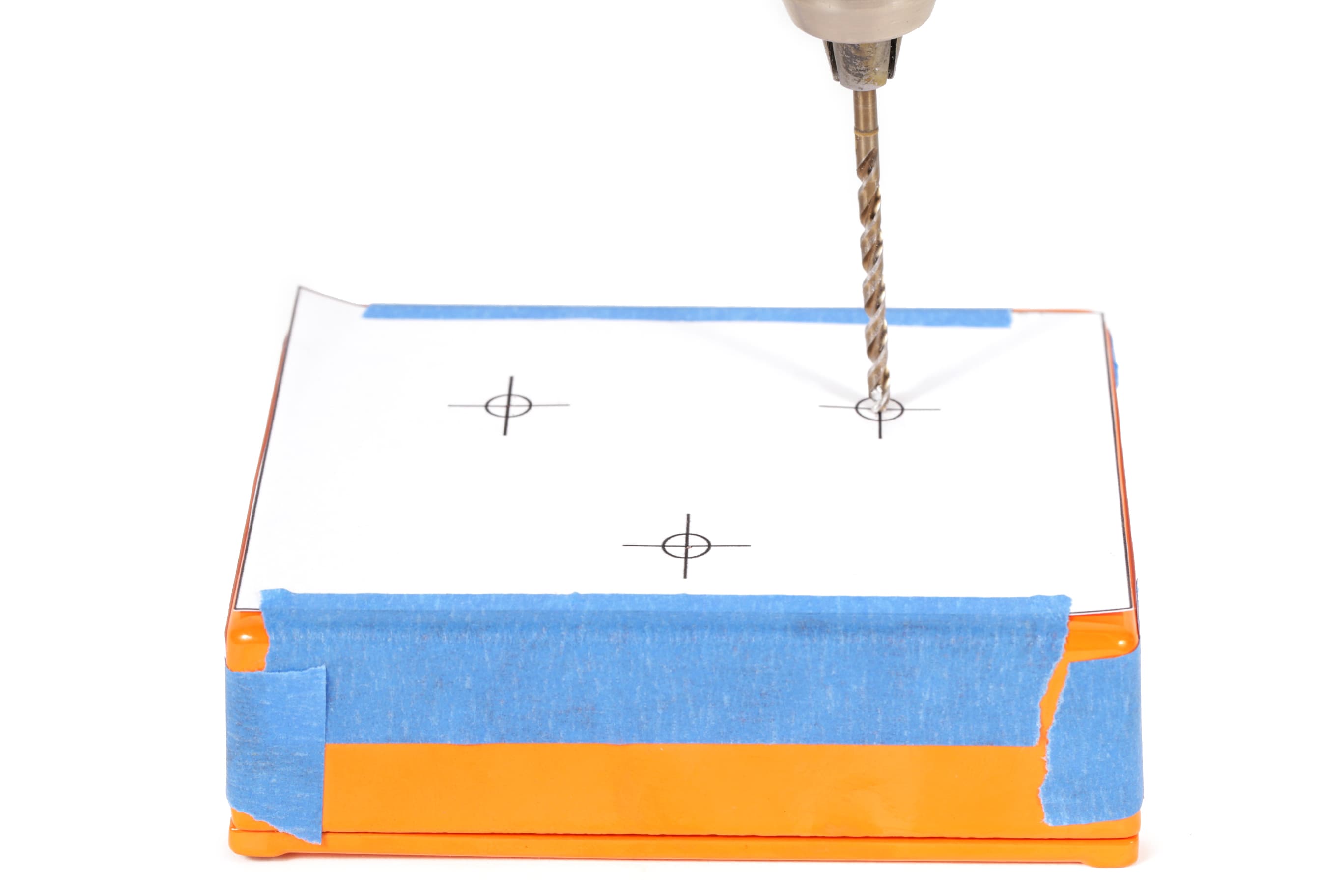

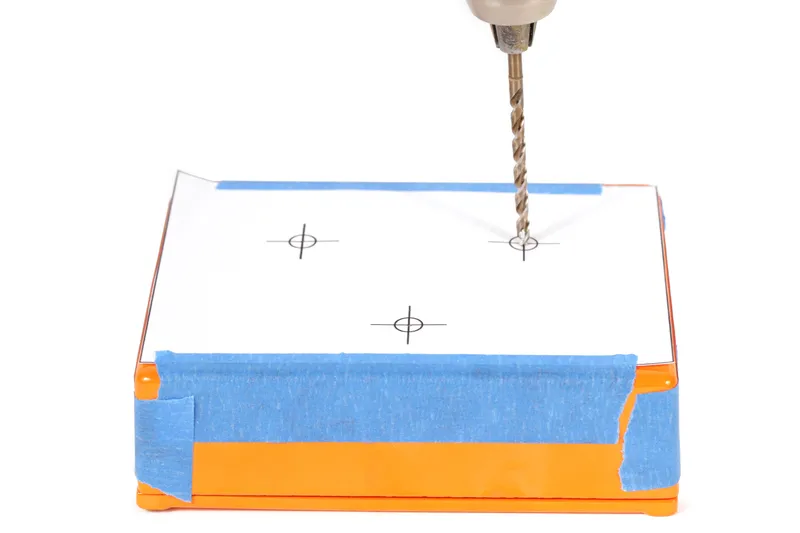

Mark the centers of each hole using a punch (or a nail if you don't have one).
Drill pilot holes for each marking using a 1/8" drill bit.
3

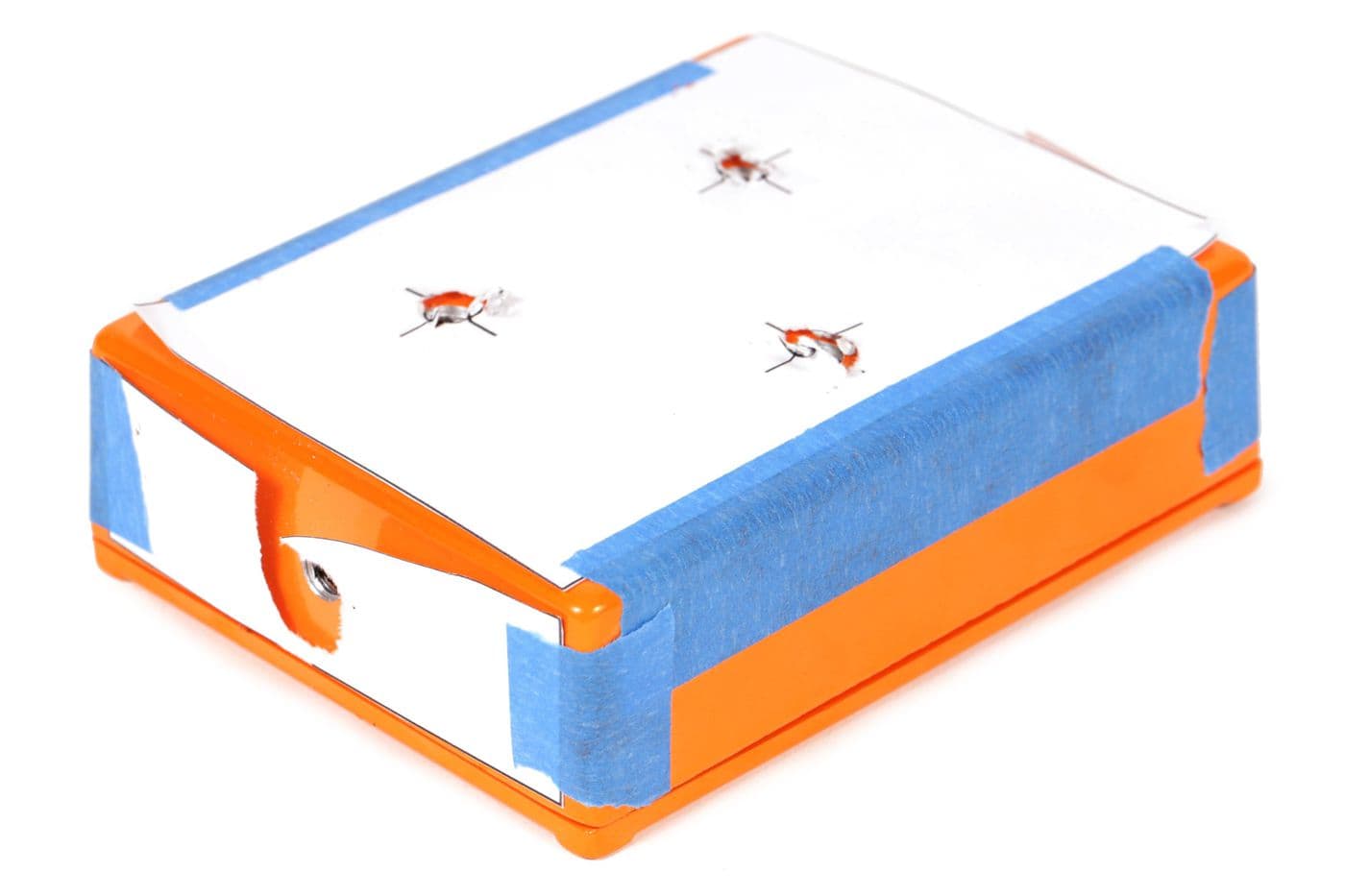

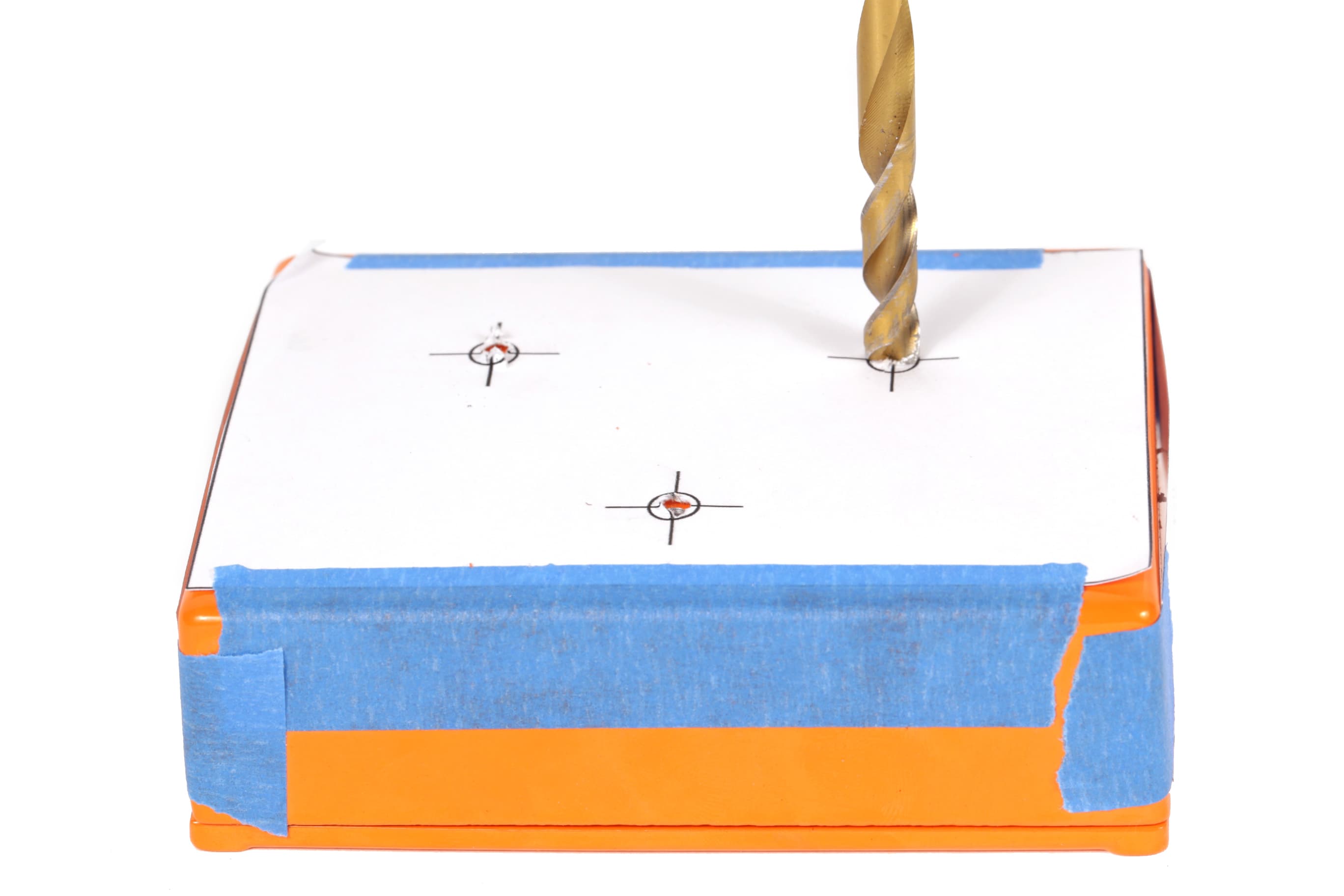

Drill 9/32" Holes
Drill 9/32" Holes
Drill 9/32" Holes
Widen all of the holes in the enclosure with a 9/32" drill bit (or appropriate for you potentiometers).
4

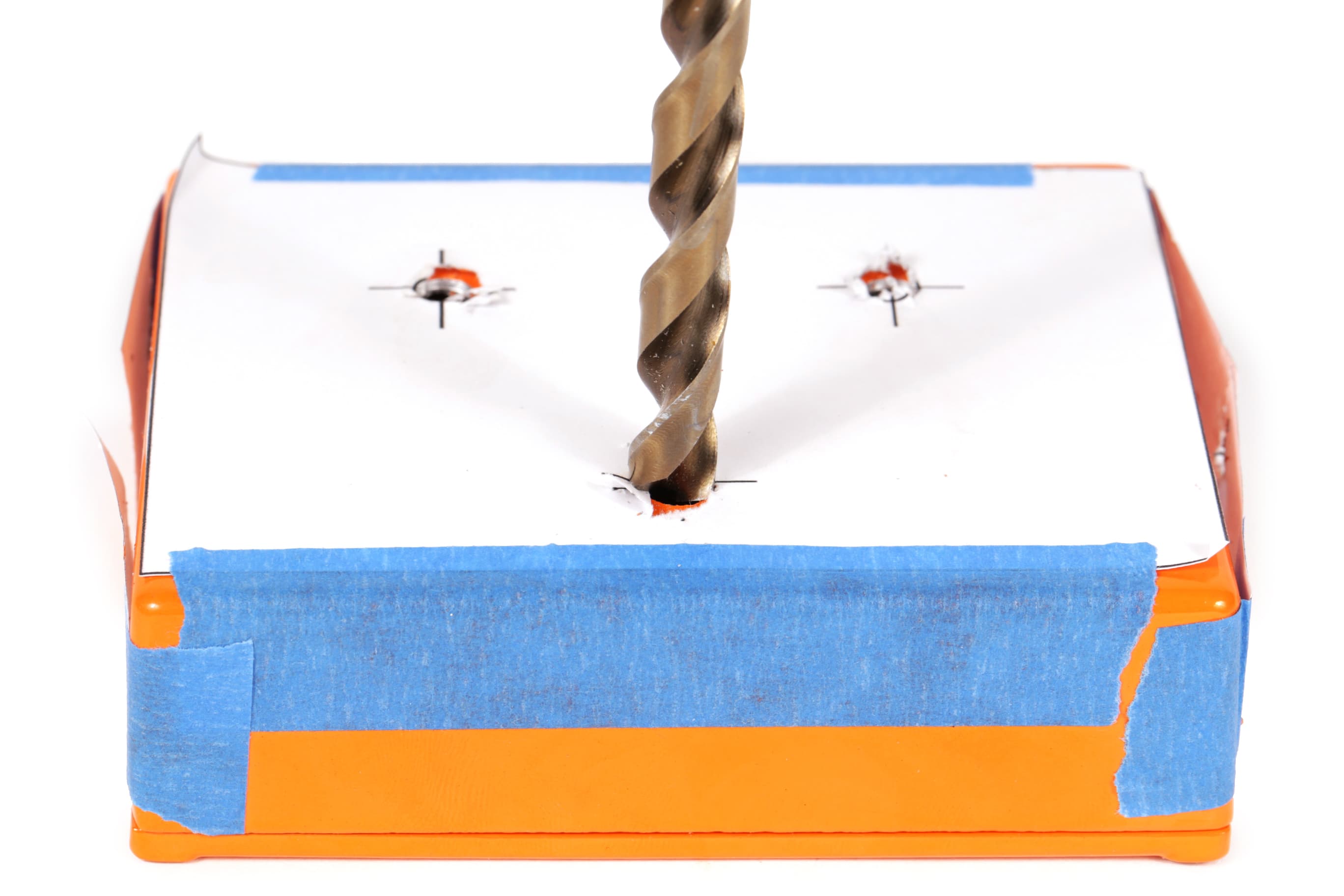

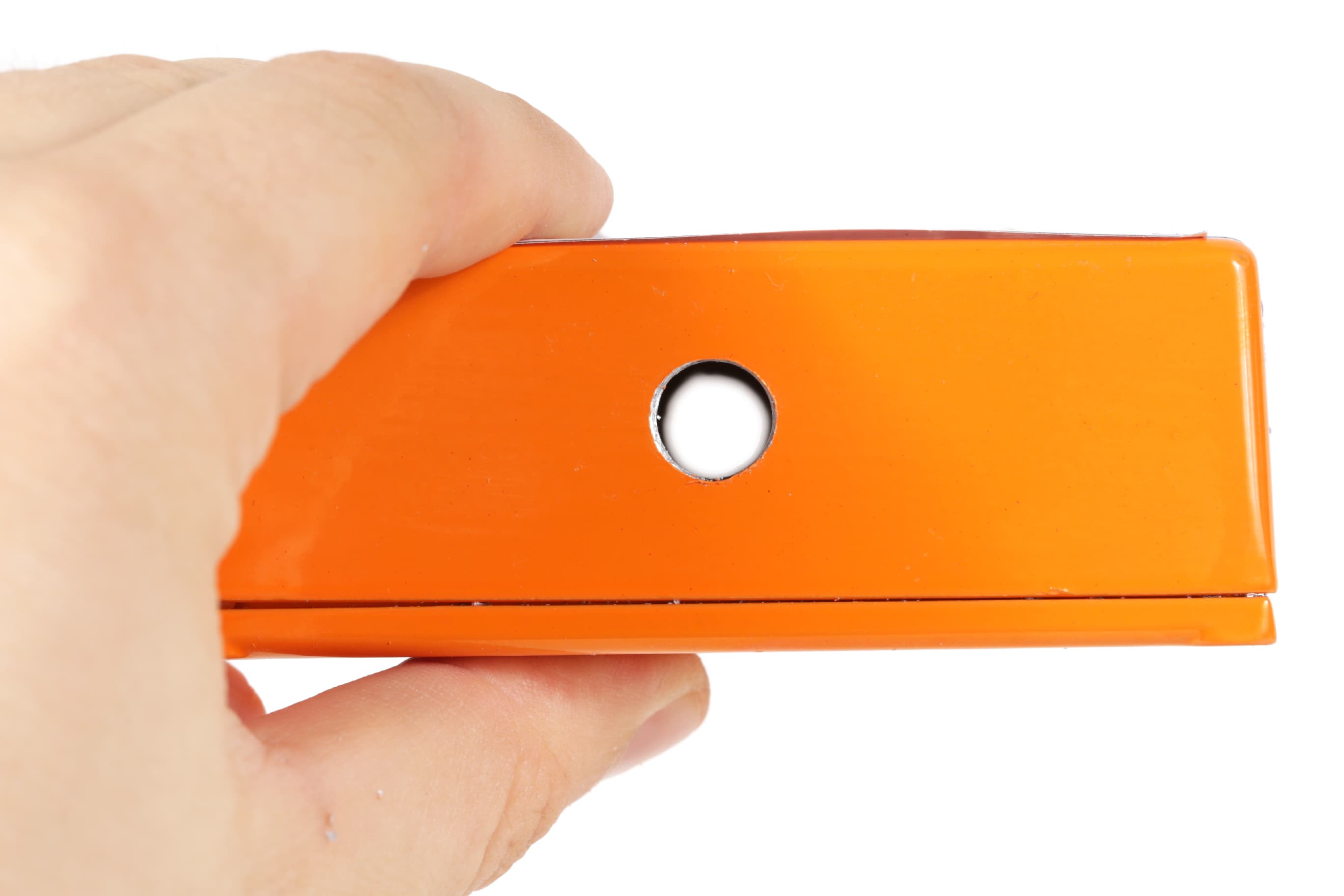

Drill 3/8" Holes
Drill 3/8" Holes
Drill 3/8" Holes
Drill 3/8" Holes

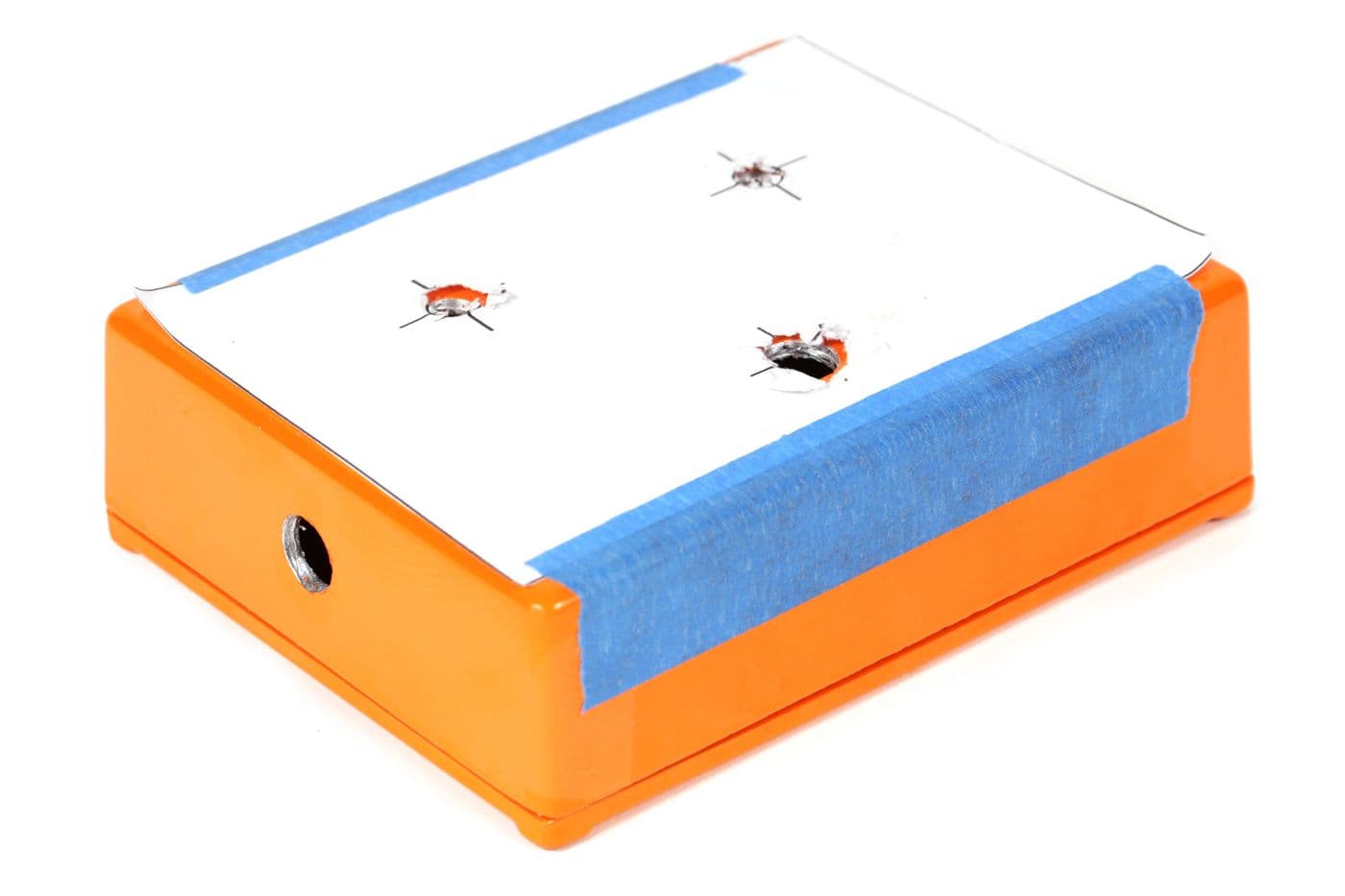

Widen the holes in the side of the enclosure using a 3/8" drill bit.
Also, widen the center hole in front of the enclosure with the same drill bit.
5

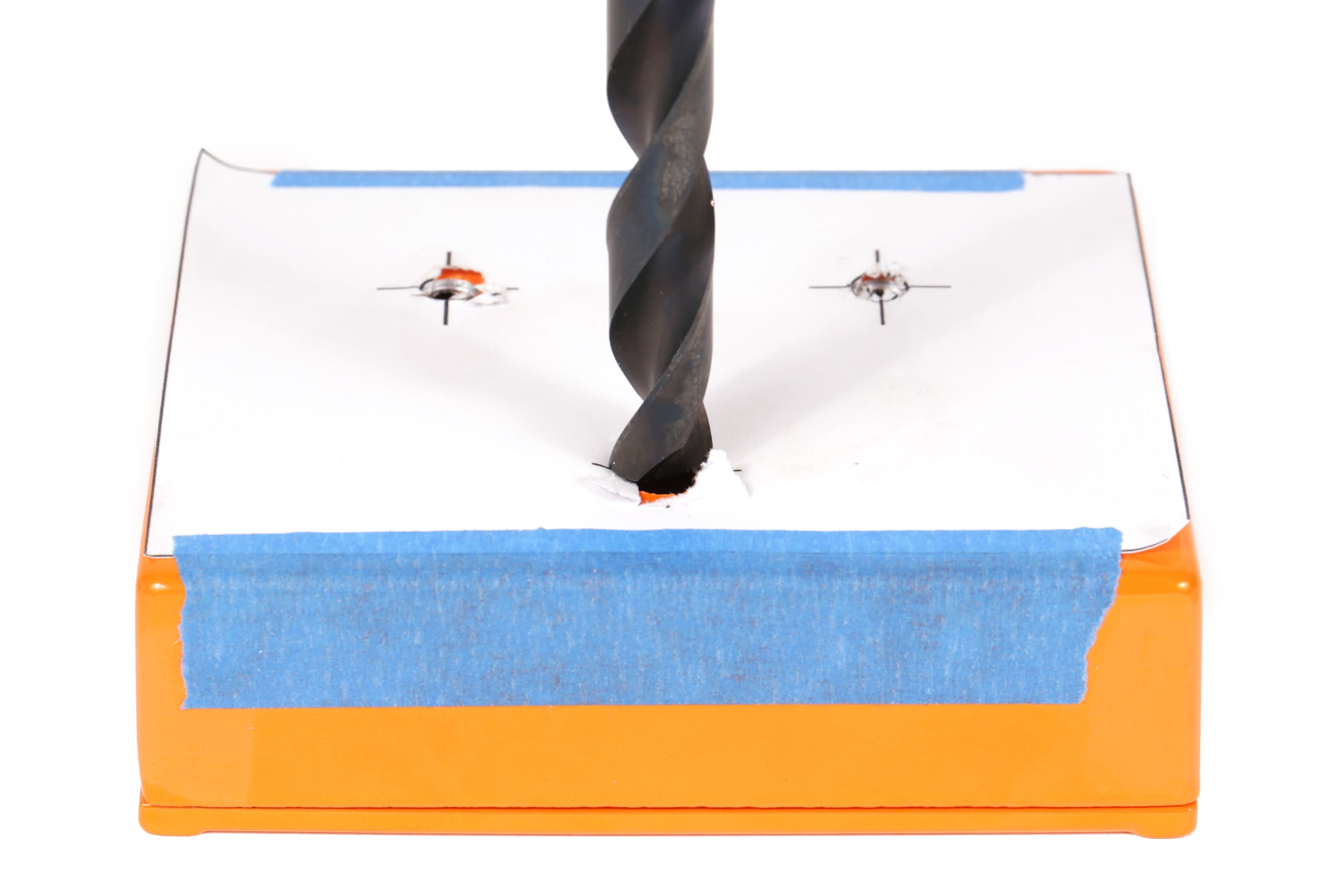

Drill a 1/2" Hole
Drill a 1/2" Hole
Drill a 1/2" Hole

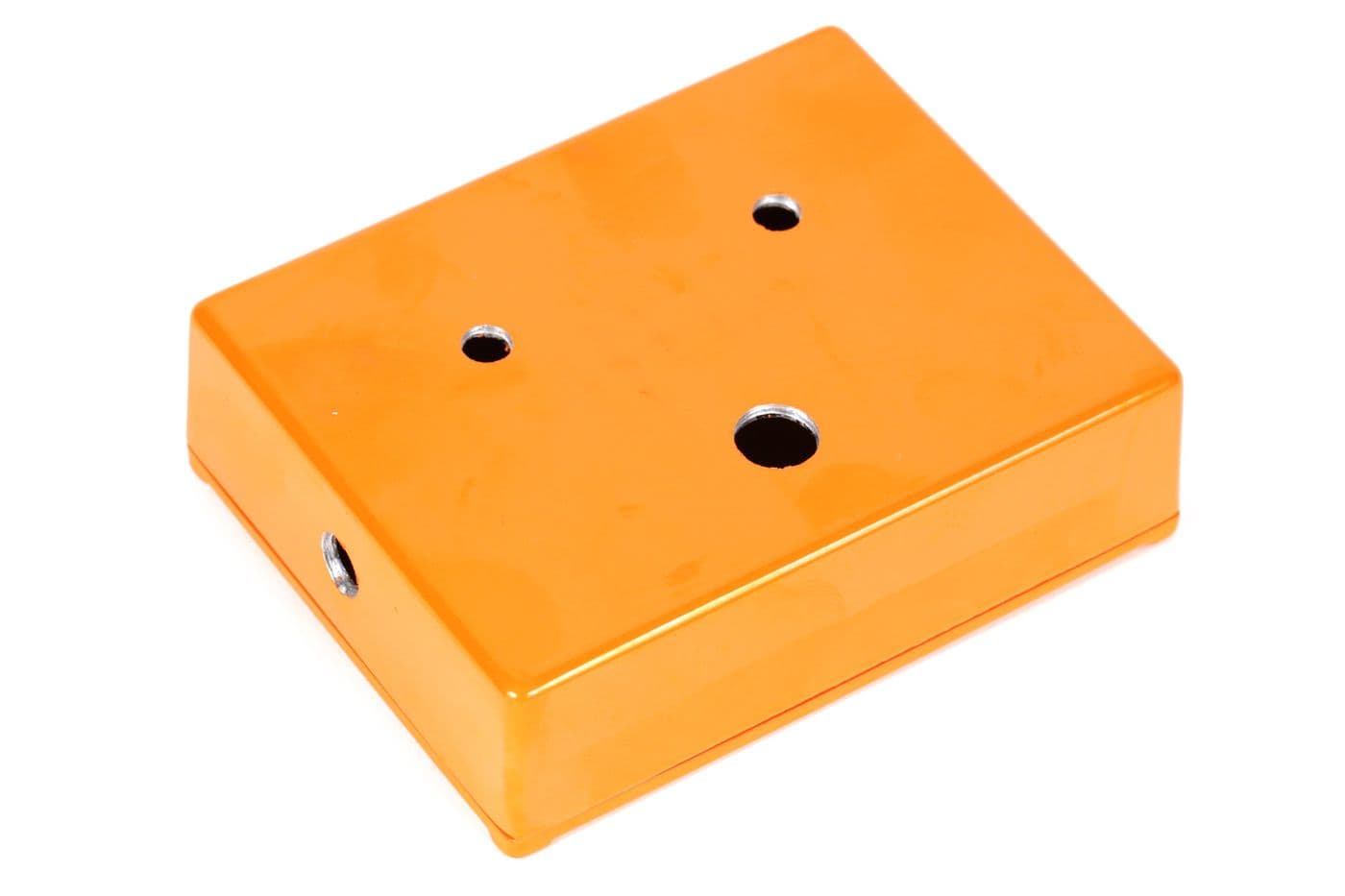

Finally, widen the center DPDT switch hole in the front of the enclosure with a 1/2" drill bit. You will likely want to clamp the enclosure down to your work table (or in a vise), before you drill this hole. A 1/2" drill bit can be aggressive.
6

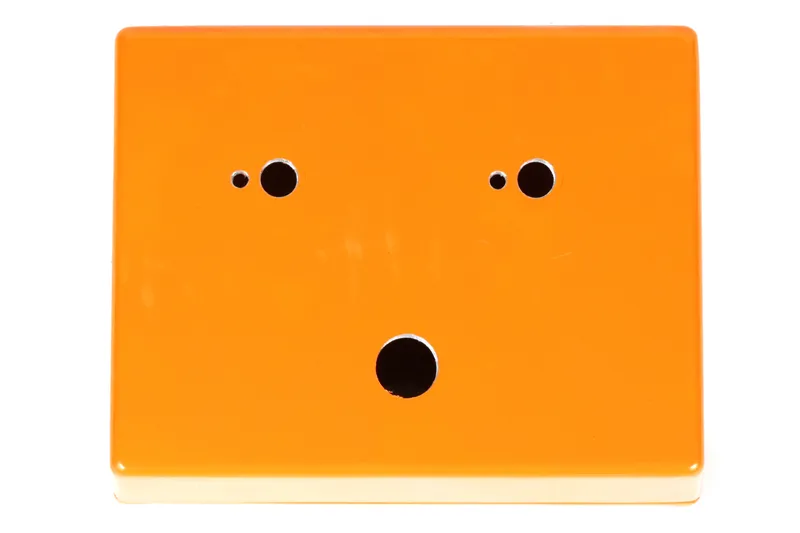

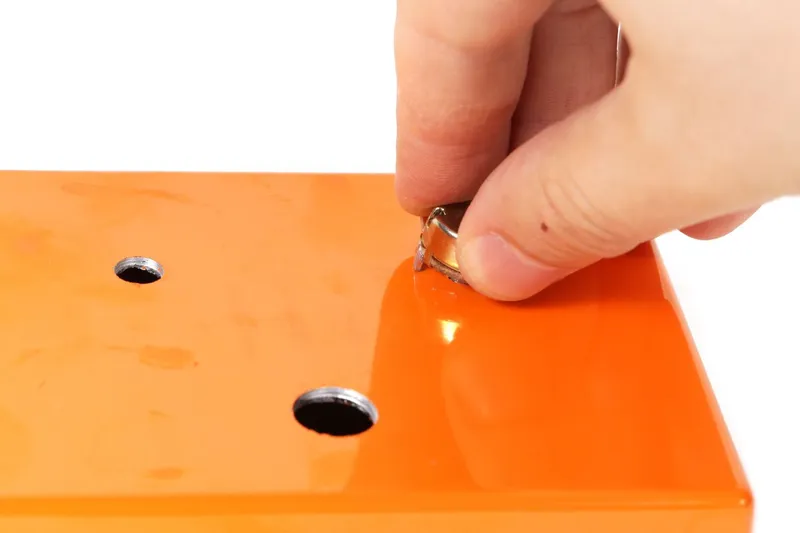

Mark the Mounting Tabs
Mark the Mounting Tabs
Mark the Mounting Tabs
Mark the Mounting Tabs

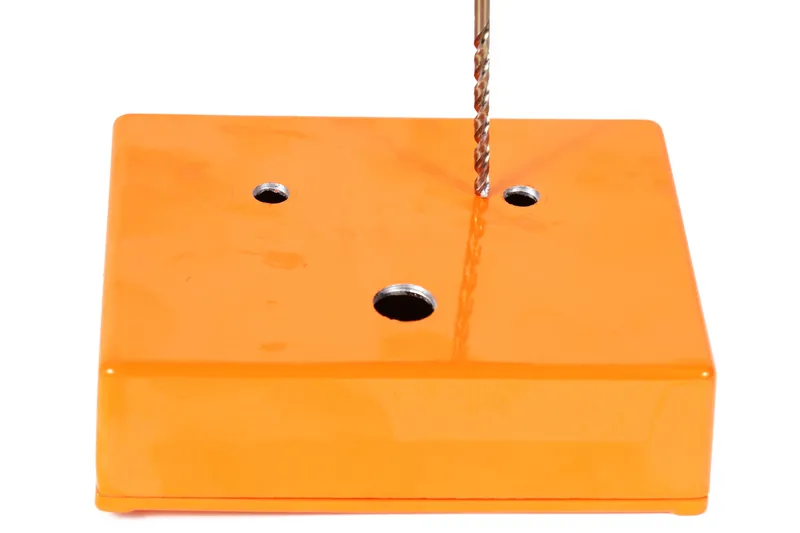

Insert the potentiometers into their front mounting holes backwards and upside down.
Wiggle, them back and forth, and notice you have scratched a line on the surface that corresponds to its mounting tab.
Drill a 1/8" hole along this line just to the left of the larger potentiometer mounting hole.
7

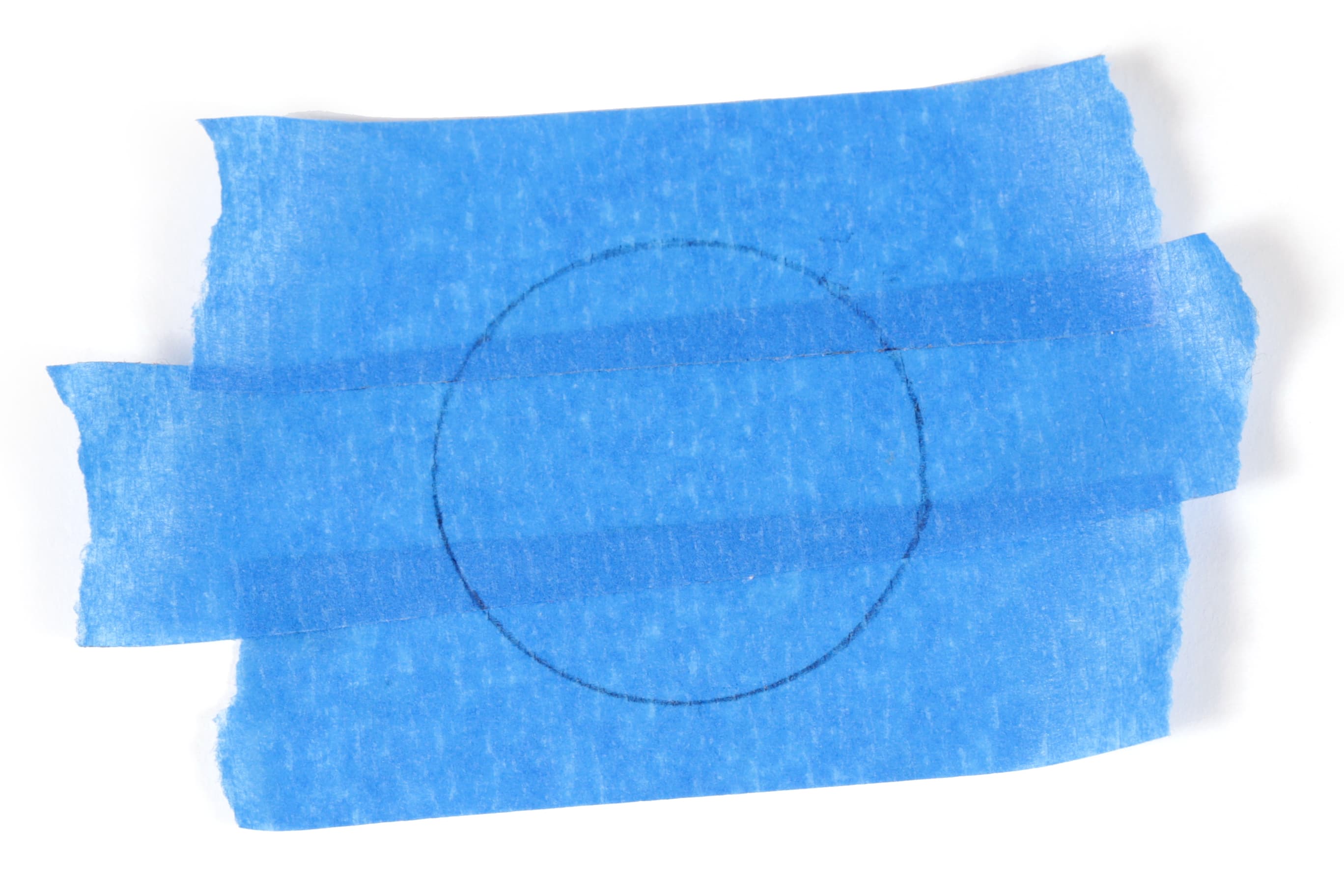

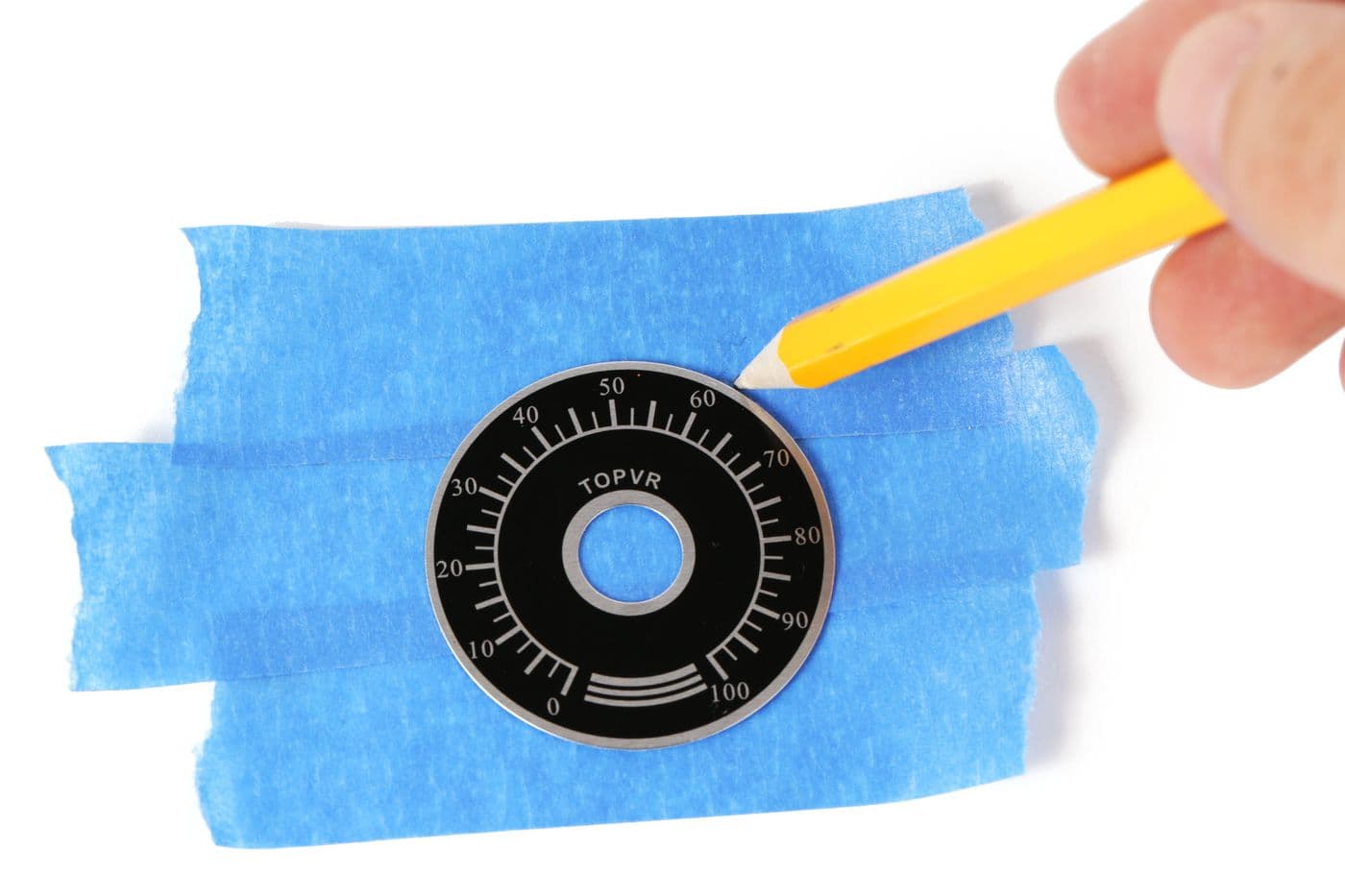

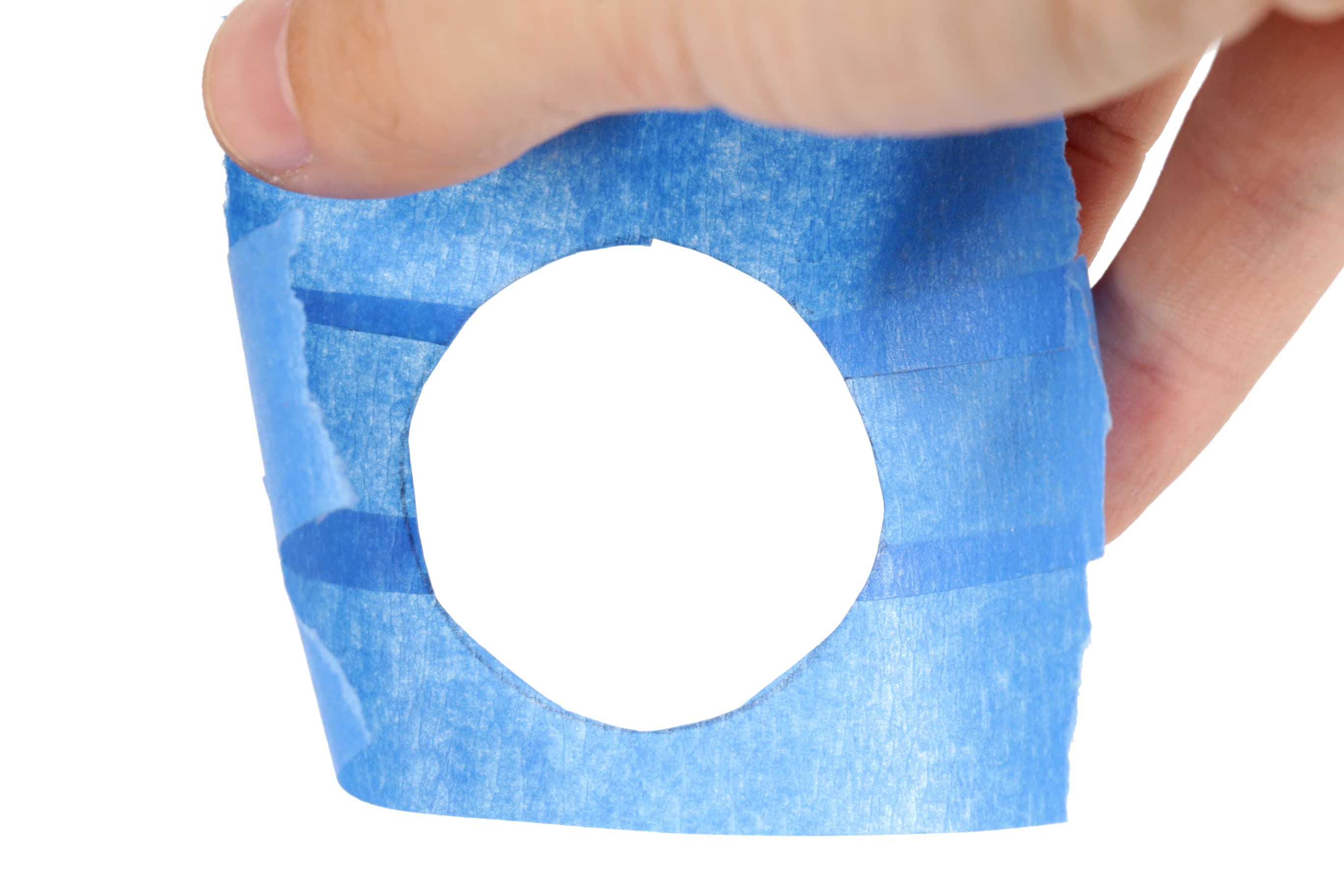

Create a Stencil
Create a Stencil
Create a Stencil
Create a Stencil
Create a Stencil
Lay one of the front dial plates on a piece of painters tape.
Trace and cut out its outline.
8

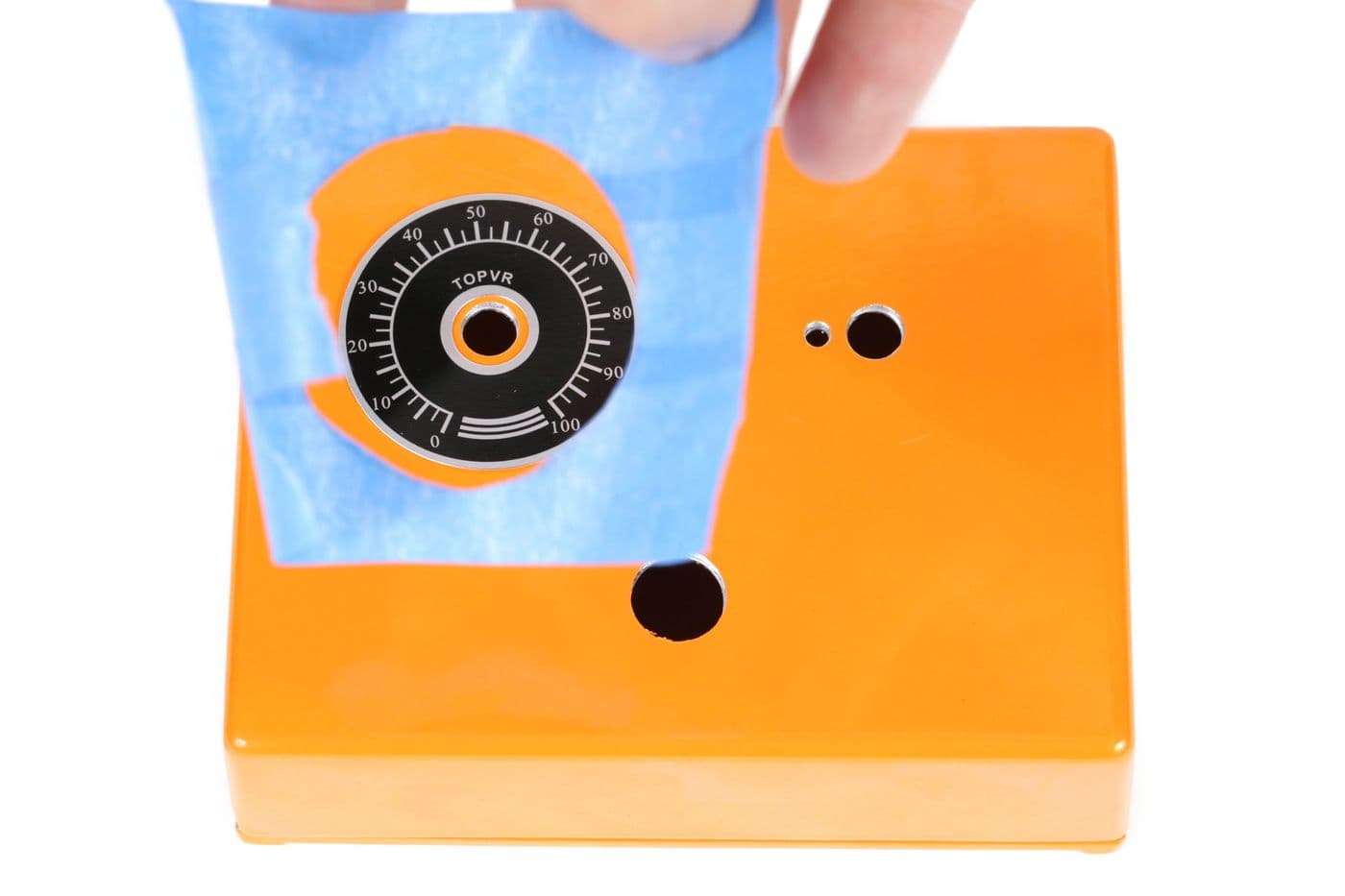

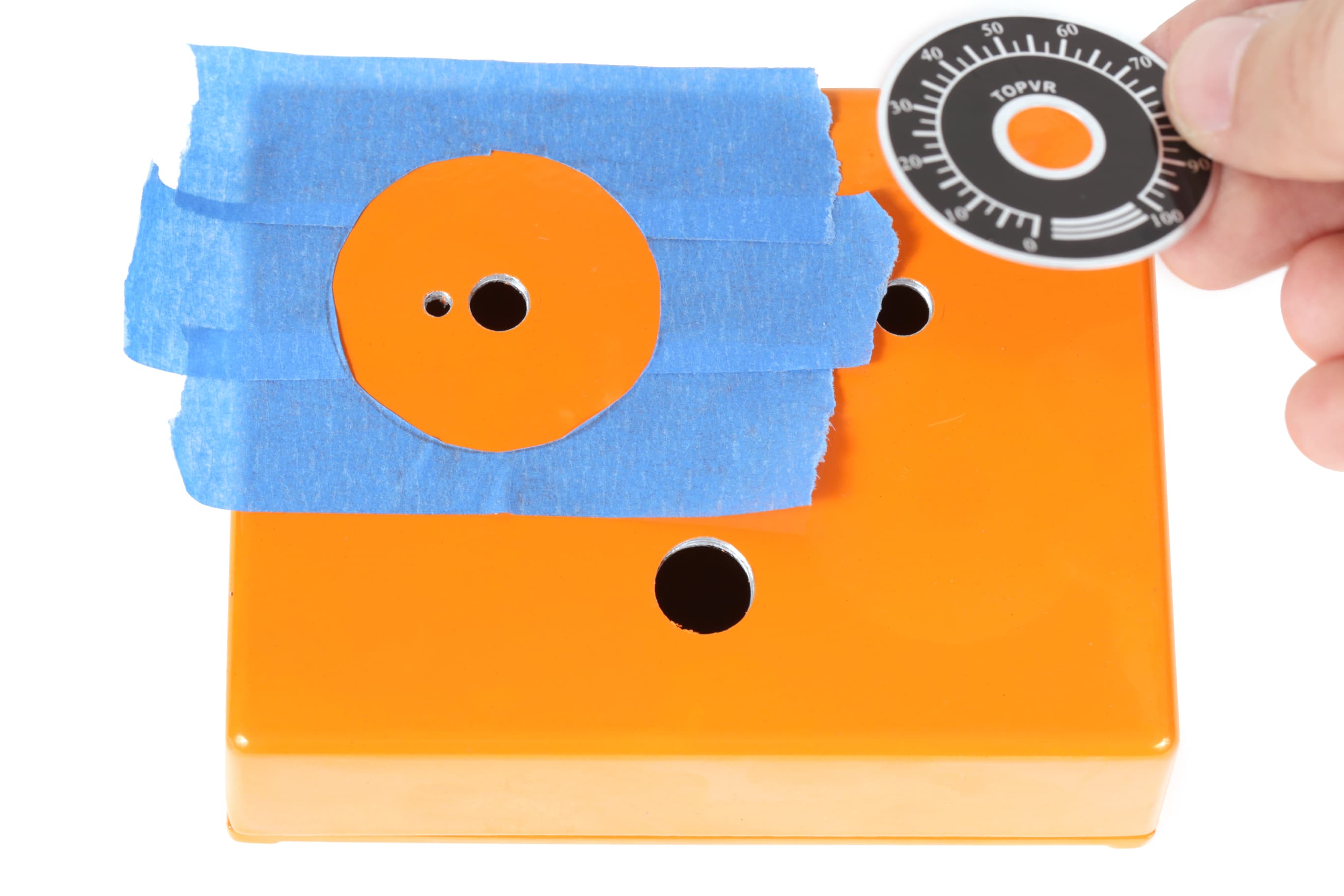

Place the Template
Place the Template
Place the Template

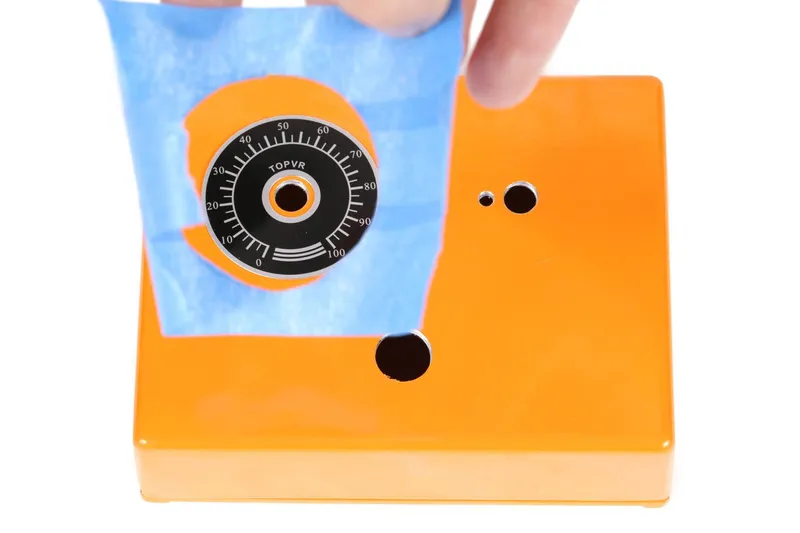

Center the front plate atop one of the potentiometer holes.
Place the tape template down around it, and stick it to the front surface of the enclosure.
9

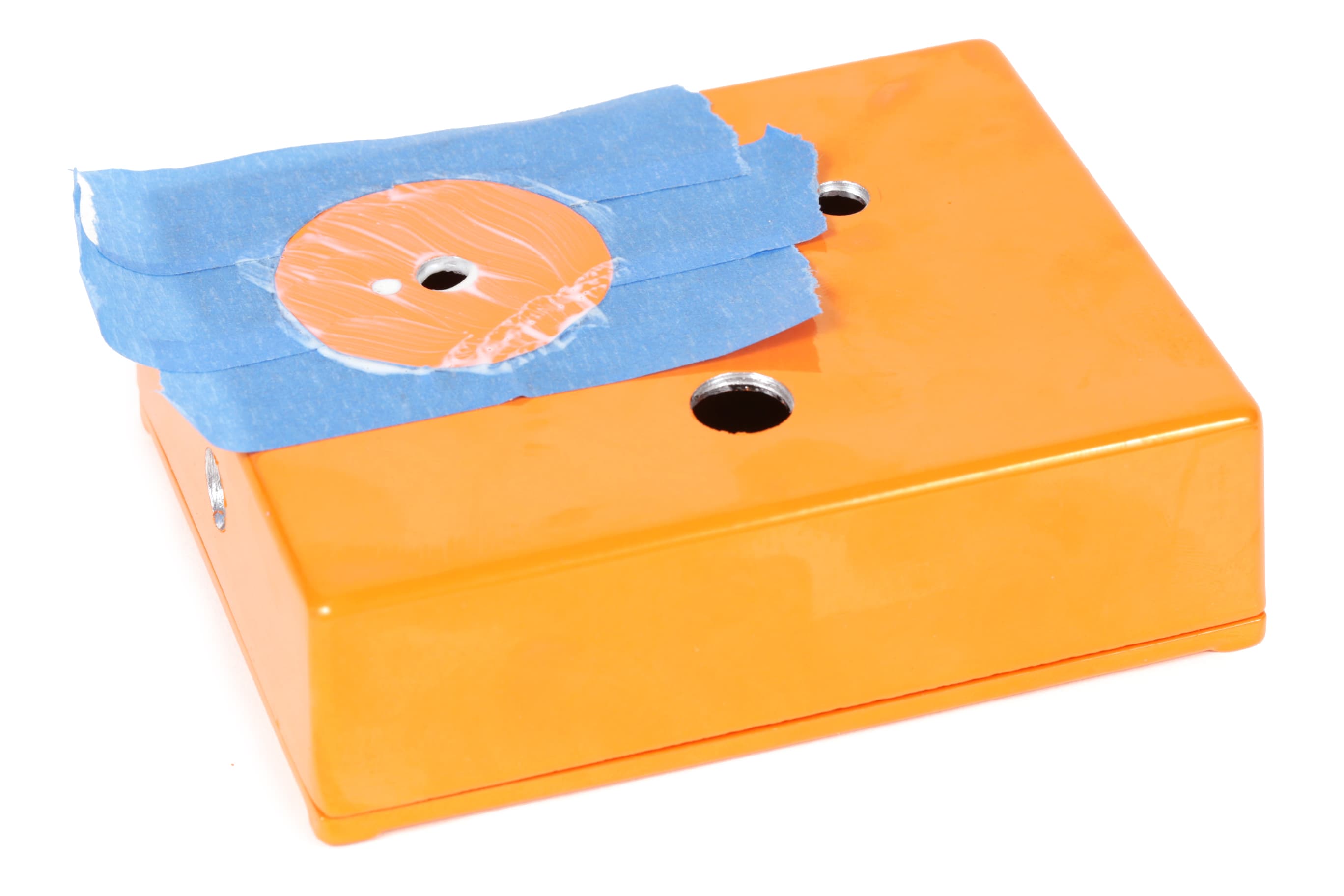

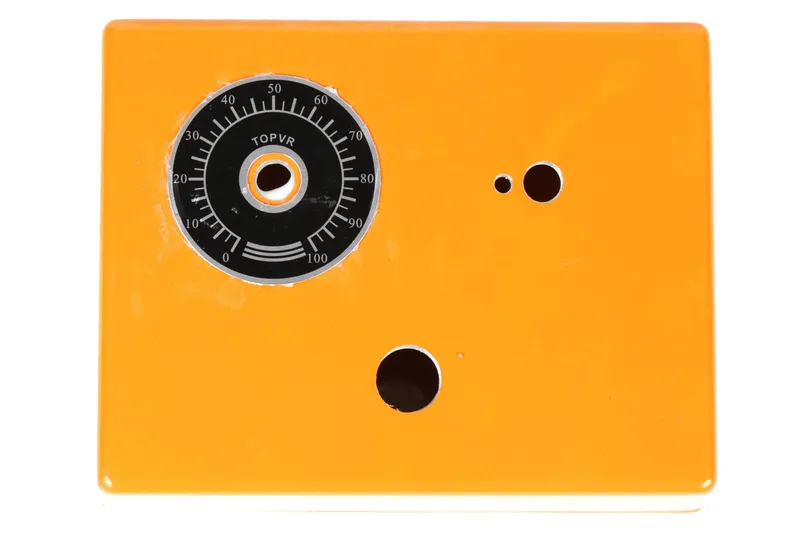

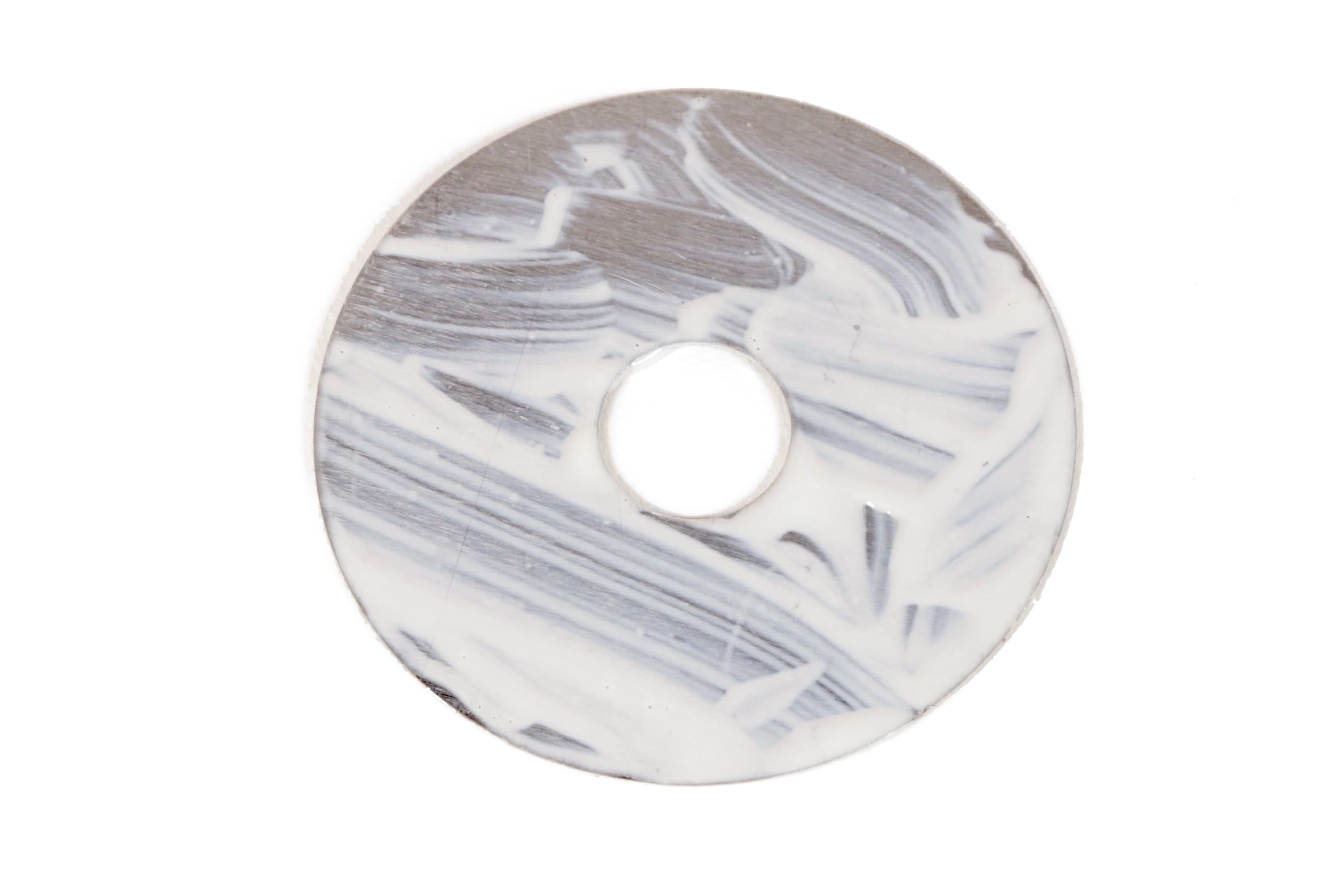

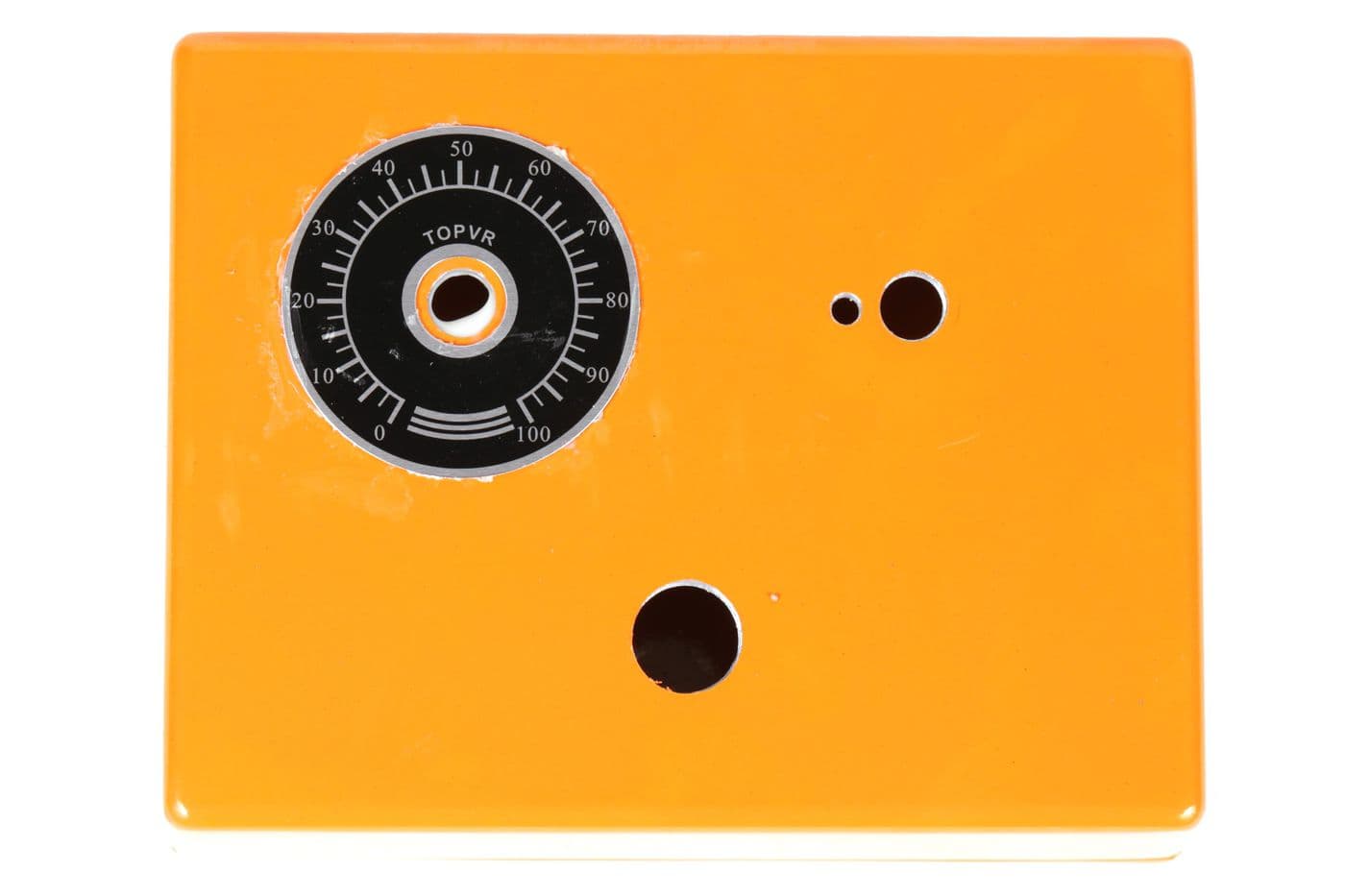

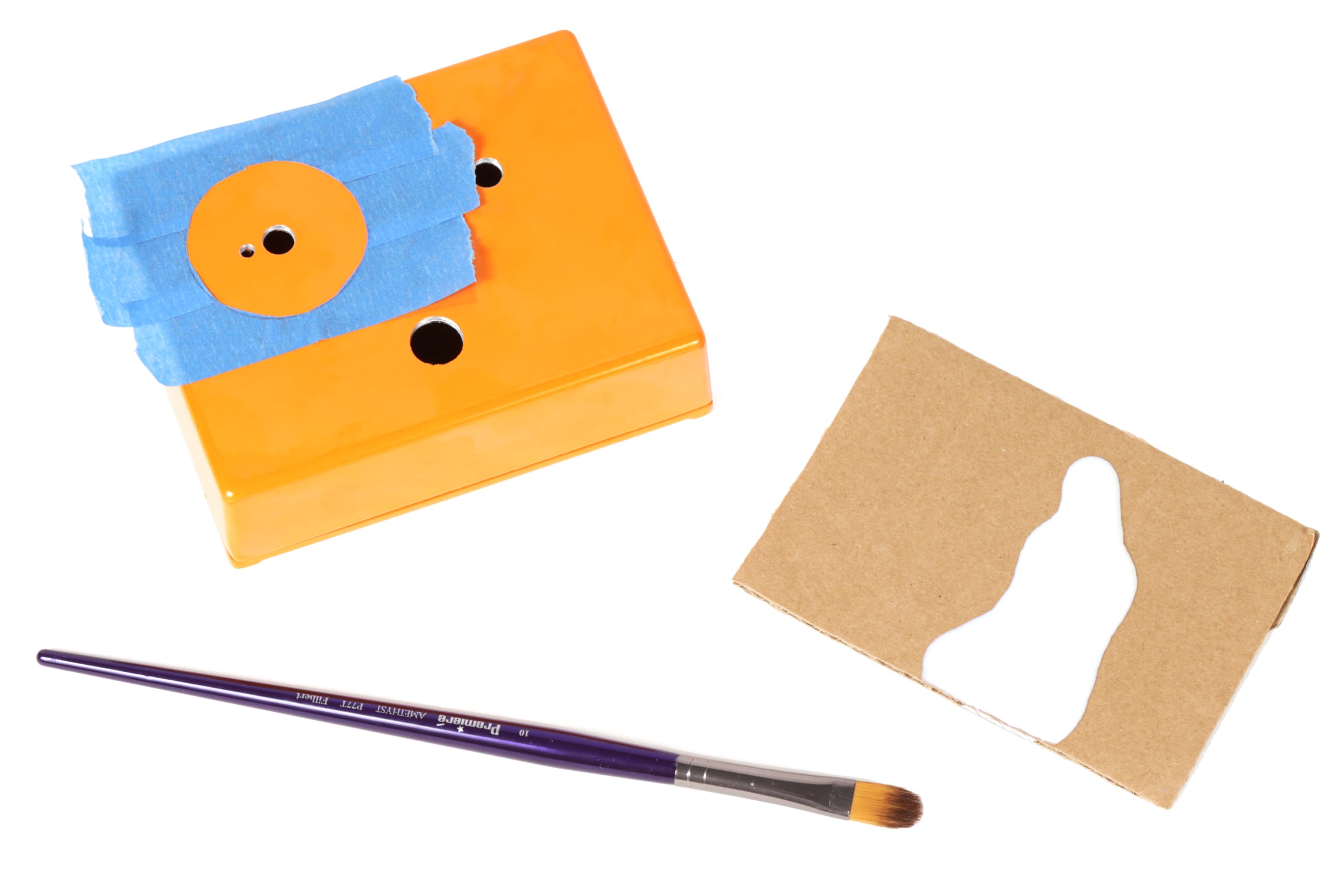

Glue Down
Glue Down
Glue Down
Glue Down
Glue Down
+2

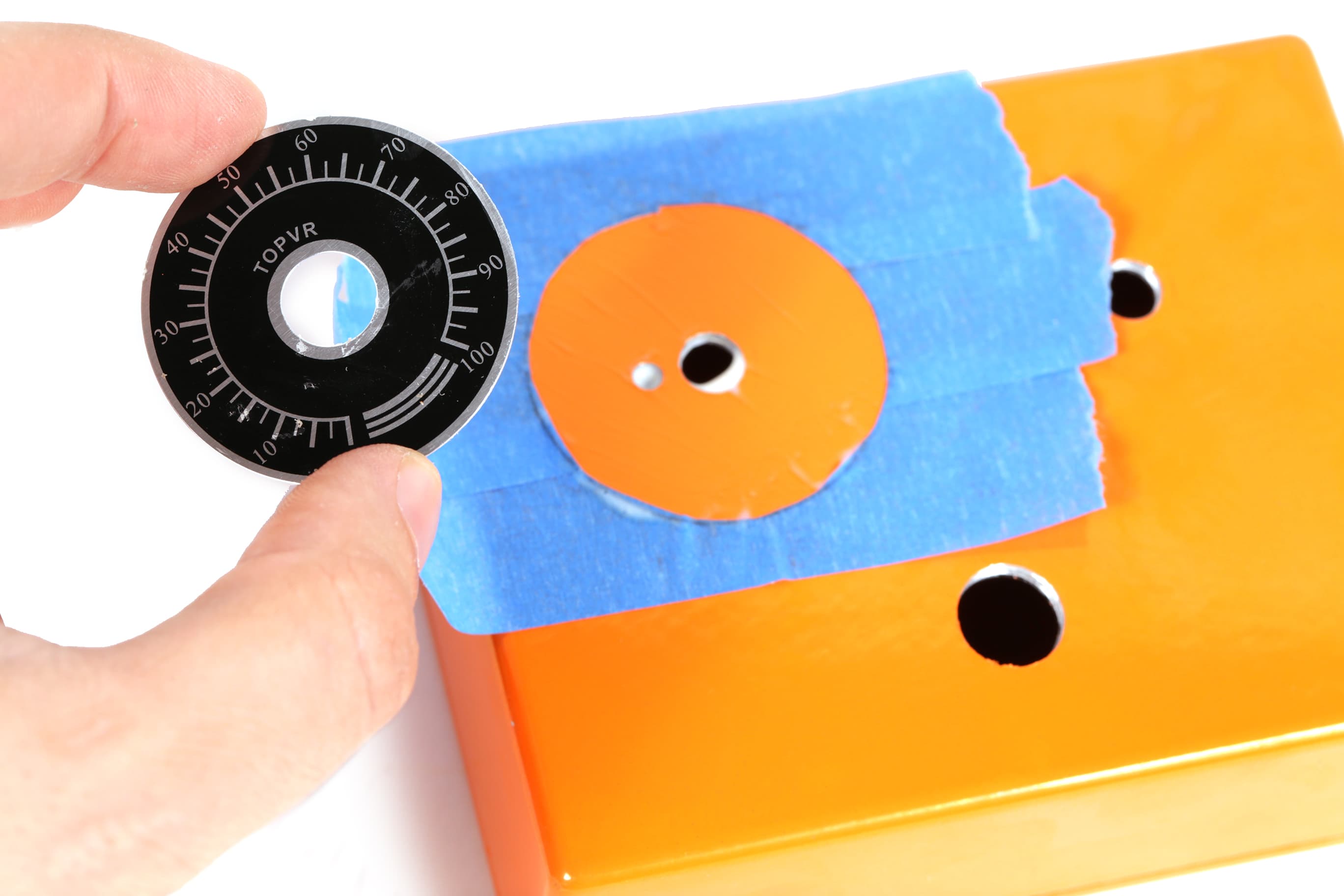

Apply contact cement to the center of the stencil and also the back of the front dial plate.
Wait for it to dry long enough to become tacky to the touch.
Once dry, press the dial firmly to the enclosure to glue it in place.
10

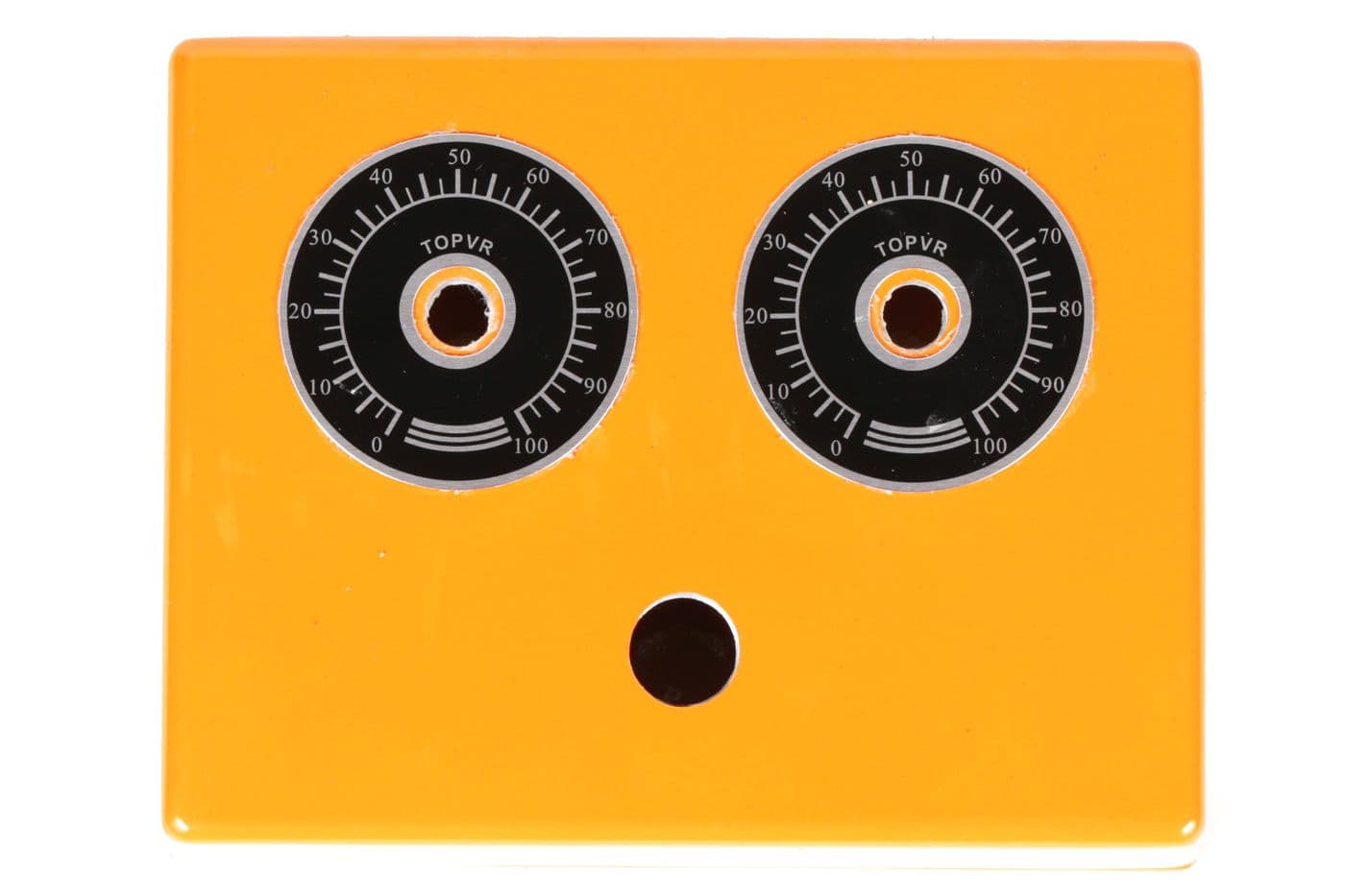

Repeat
Repeat
Repeat the process for the second dial.
11

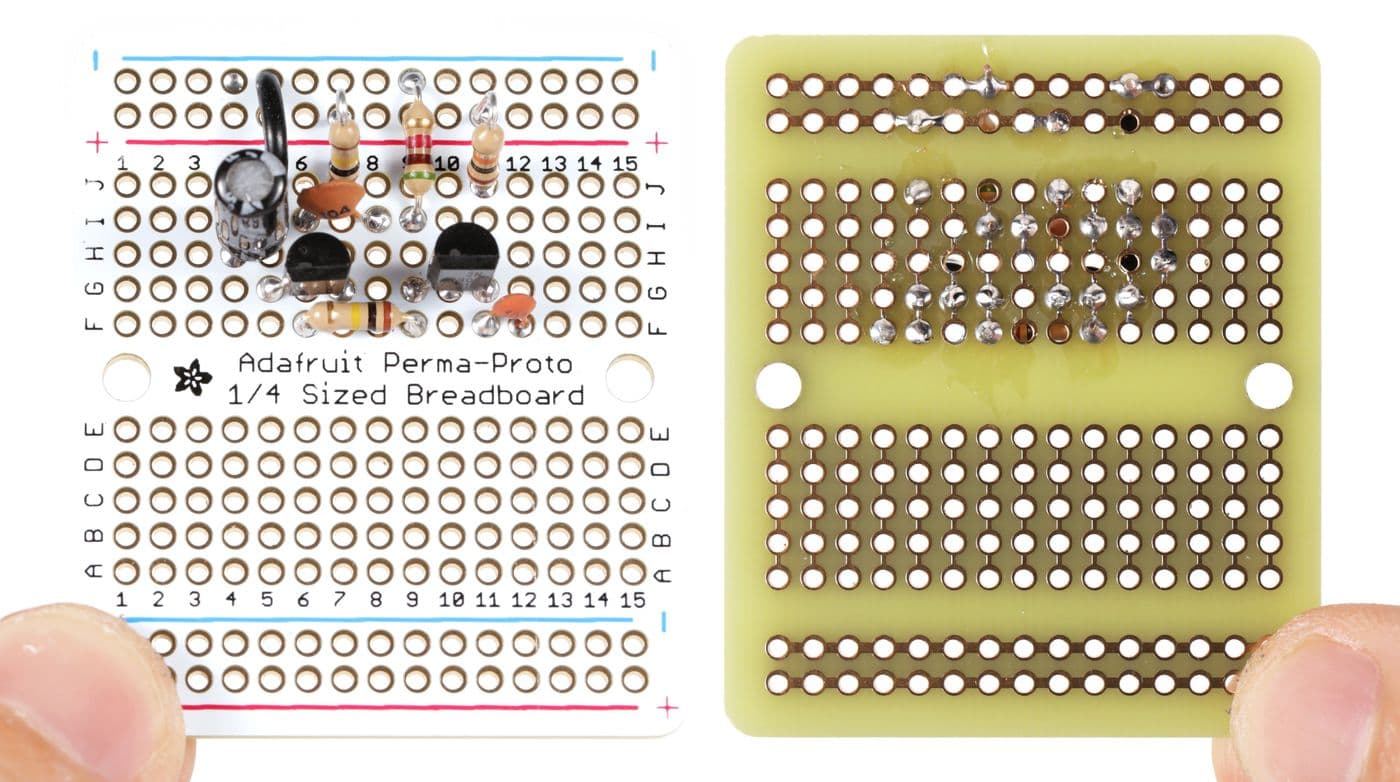

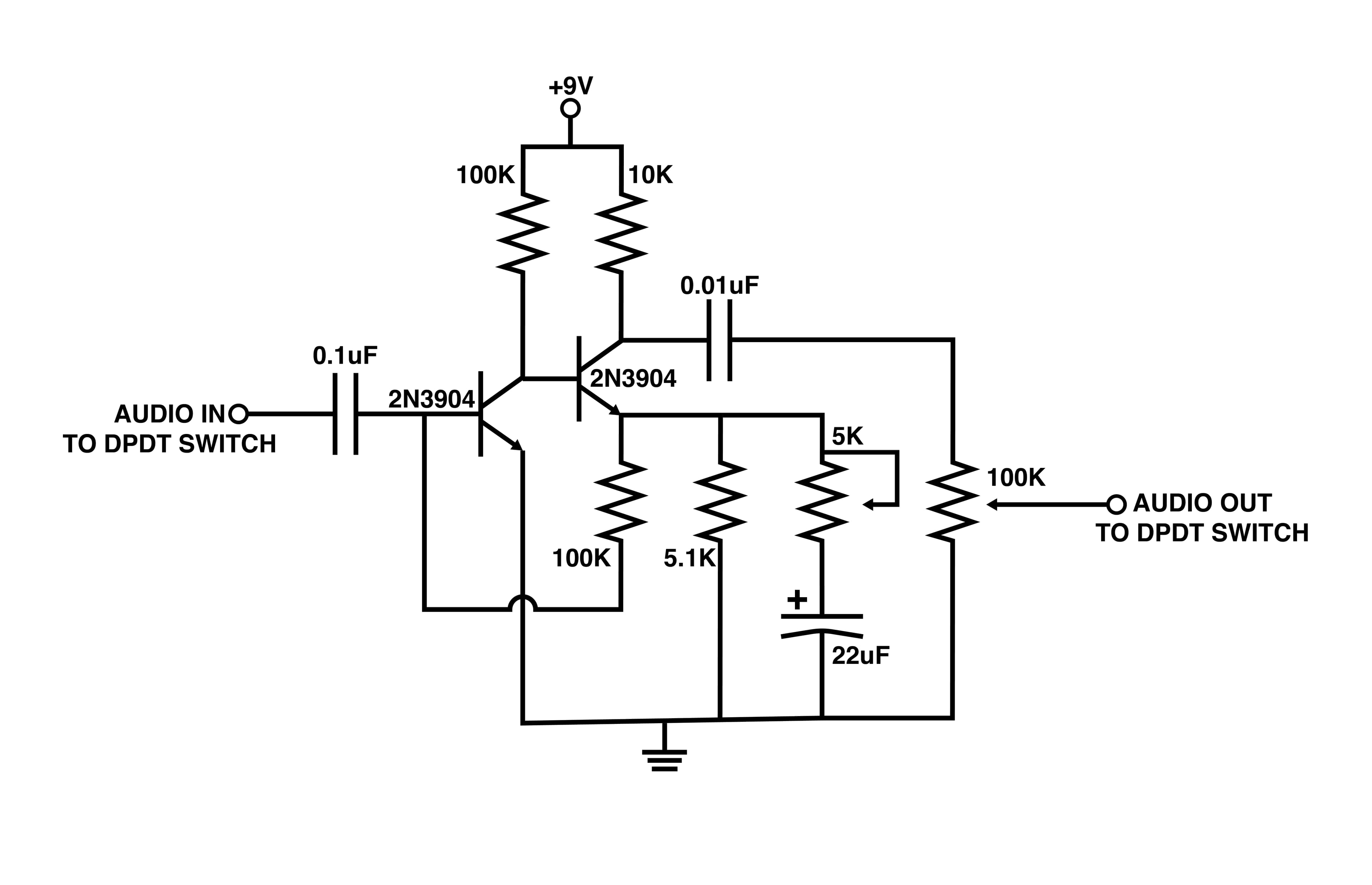

Build the Circuit
Build the Circuit
Build the Circuit

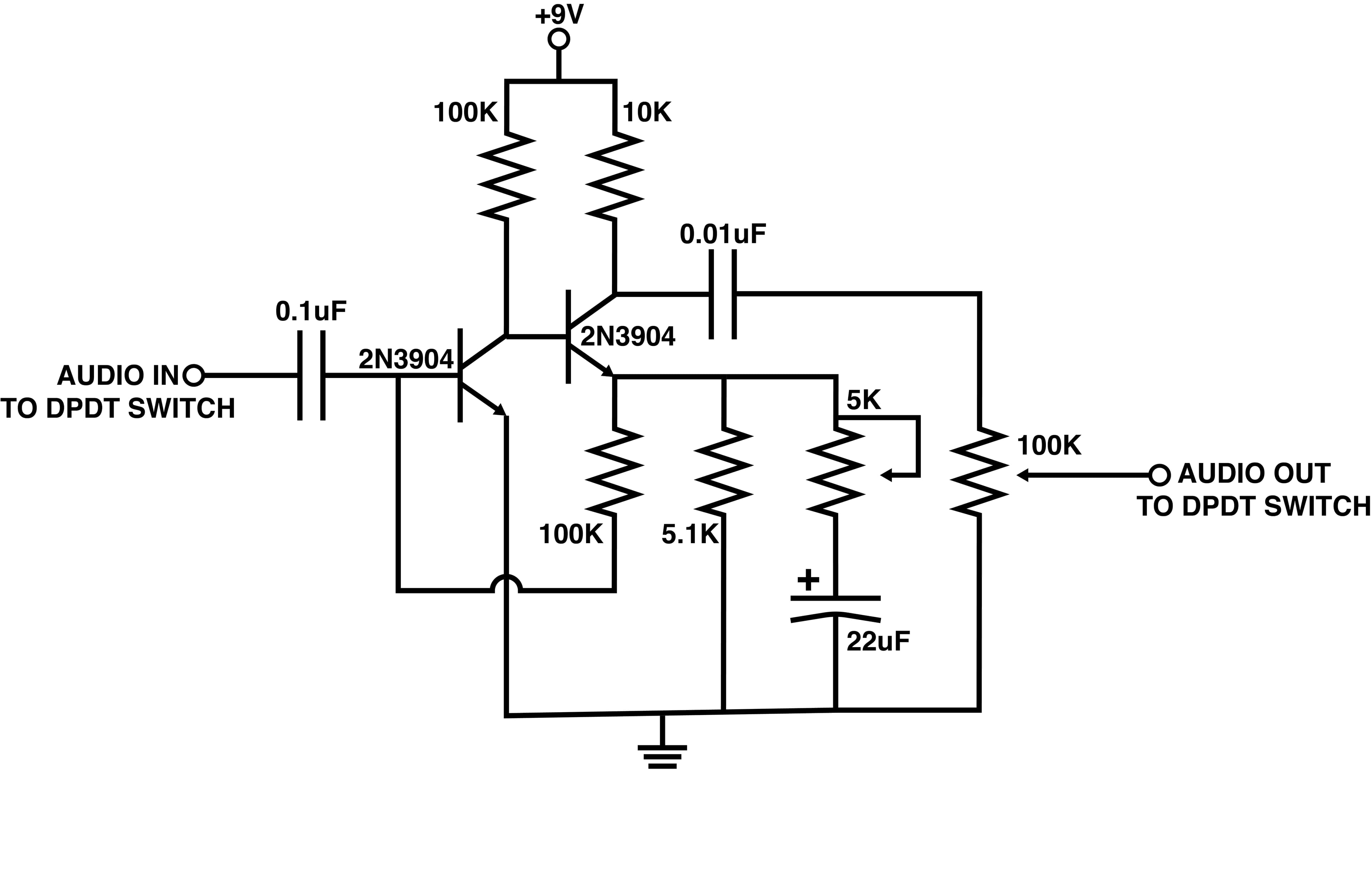

Build the circuit as specified in the schematic. For now, do now worry about wiring jacks, potentiometers, or anything else that might not attach directly to the circuit board.
This circuit is basically a 2-transistor gain circuit and a variation on the classic Fuzz Face guitar pedal. To learn more than you ever wanted to know about this circuit, check out R.G. Keen's Technology of the Fuzz Face article.
12
Wire the Potentiometers
Wire the Potentiometers

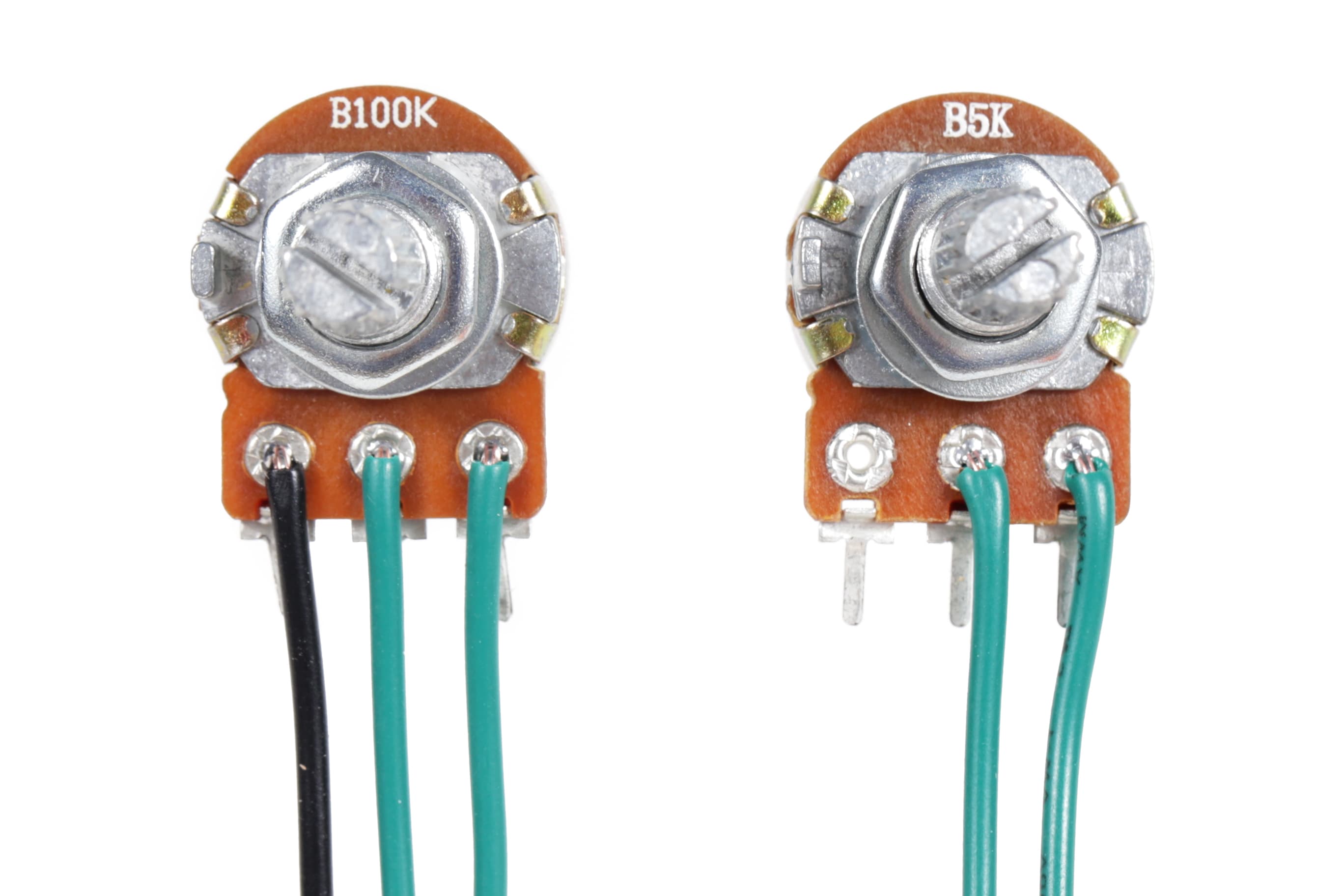

Solder 5" green wires to the center and right-hand pin (if the potentiometer knob is facing you) on both potentiometers.
Also solder a 5" black wire to the remaining outer pin on the 100K potentiometer.
13

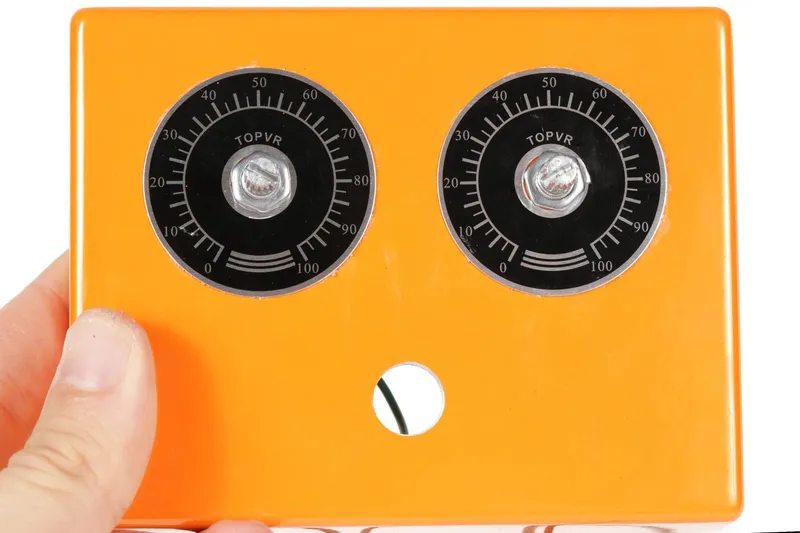

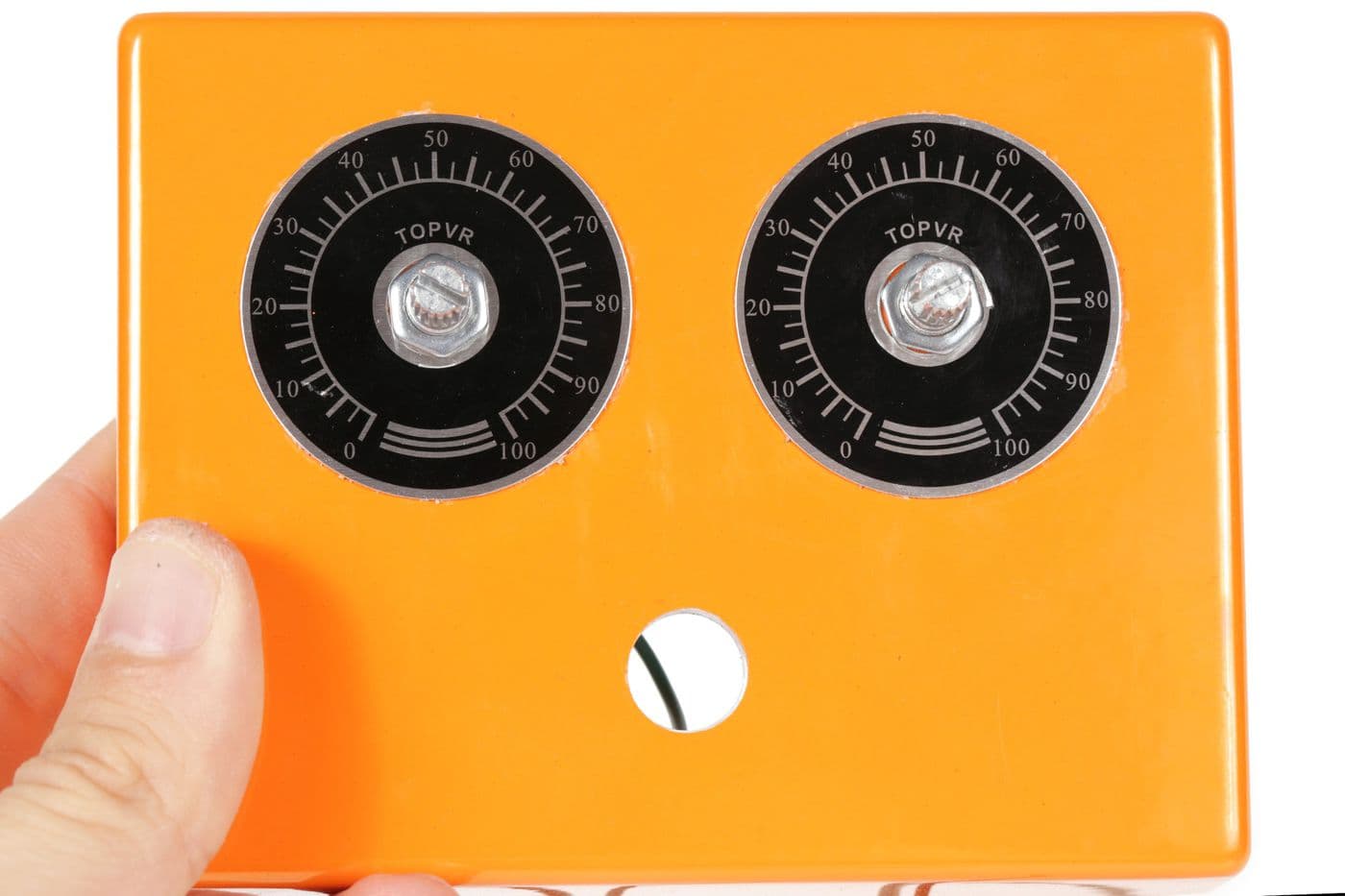

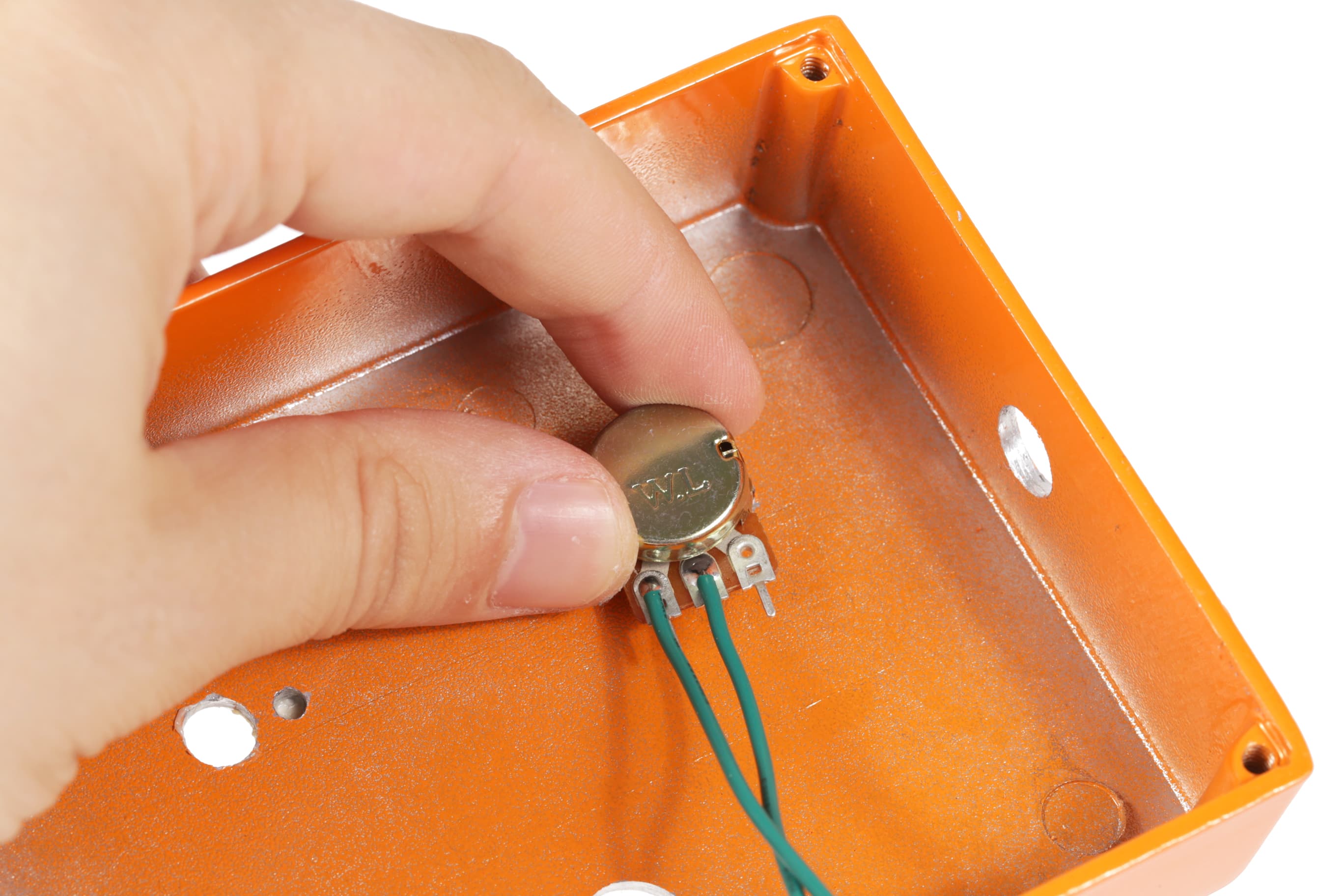

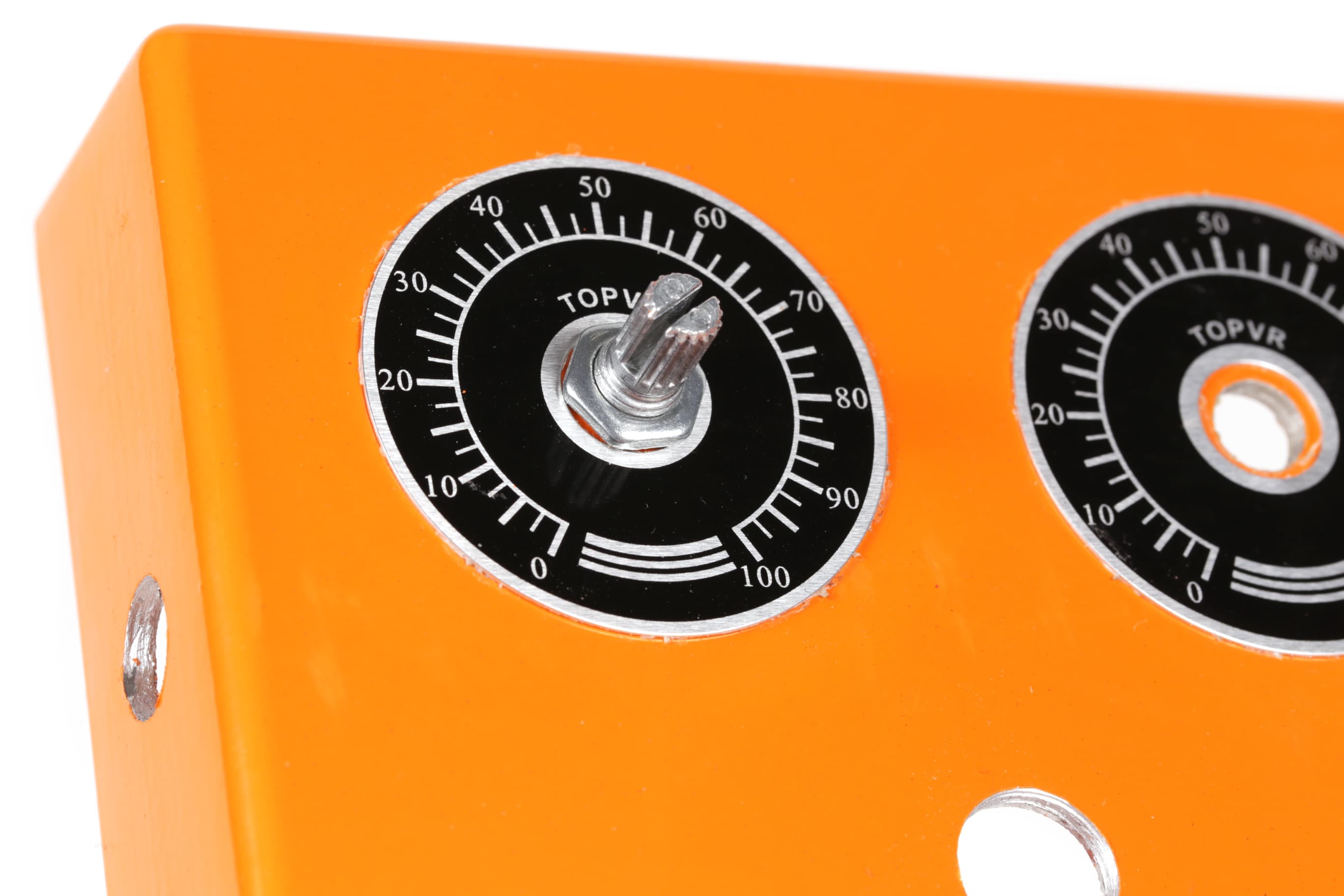

Mount the Potentiometers
Mount the Potentiometers
Mount the Potentiometers
Mount the Potentiometers
Mount the potentiometers to the enclosure by inserting it's shaft up through the hole in the enclosure, and fastening it in placing with its mounting screw.
14

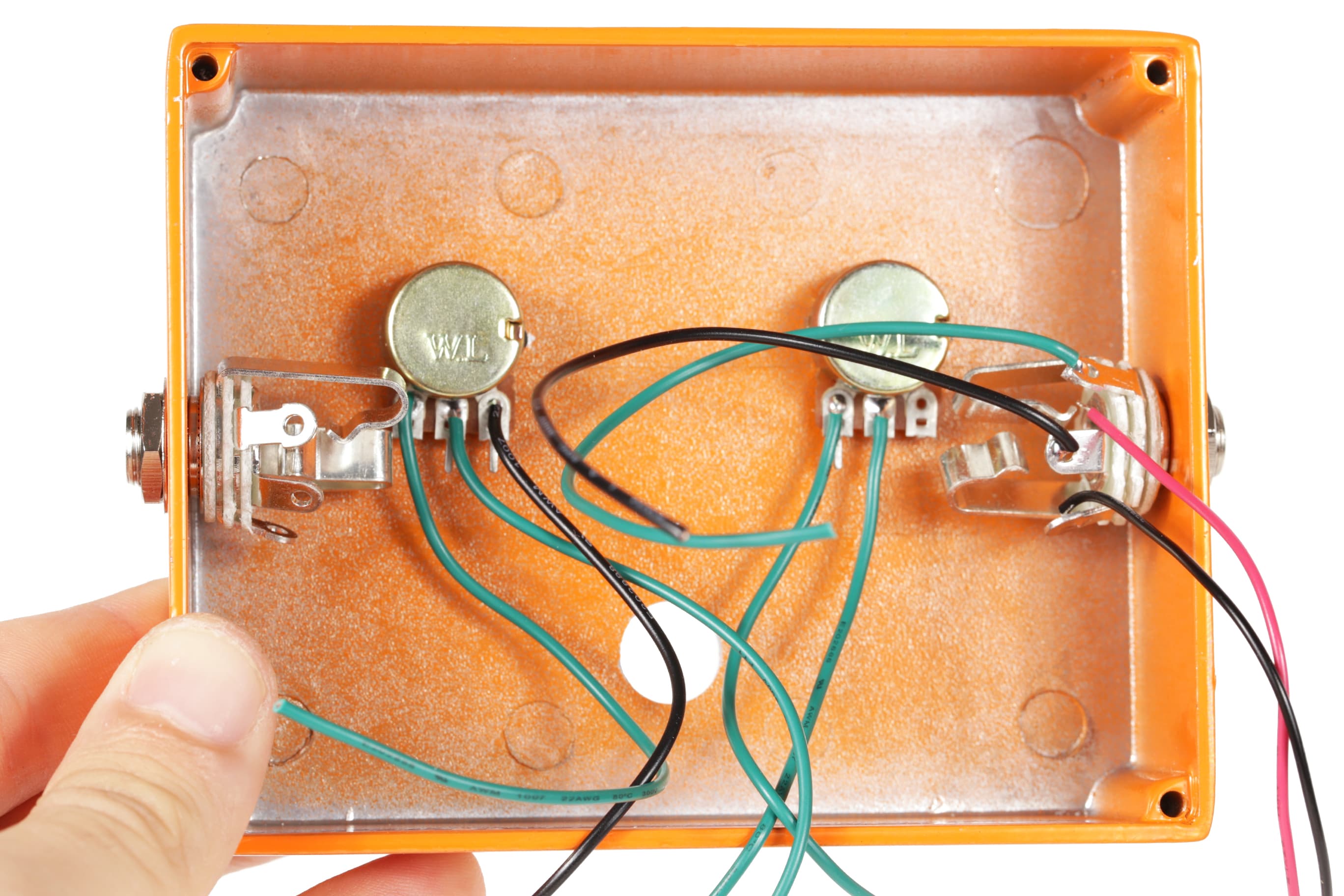

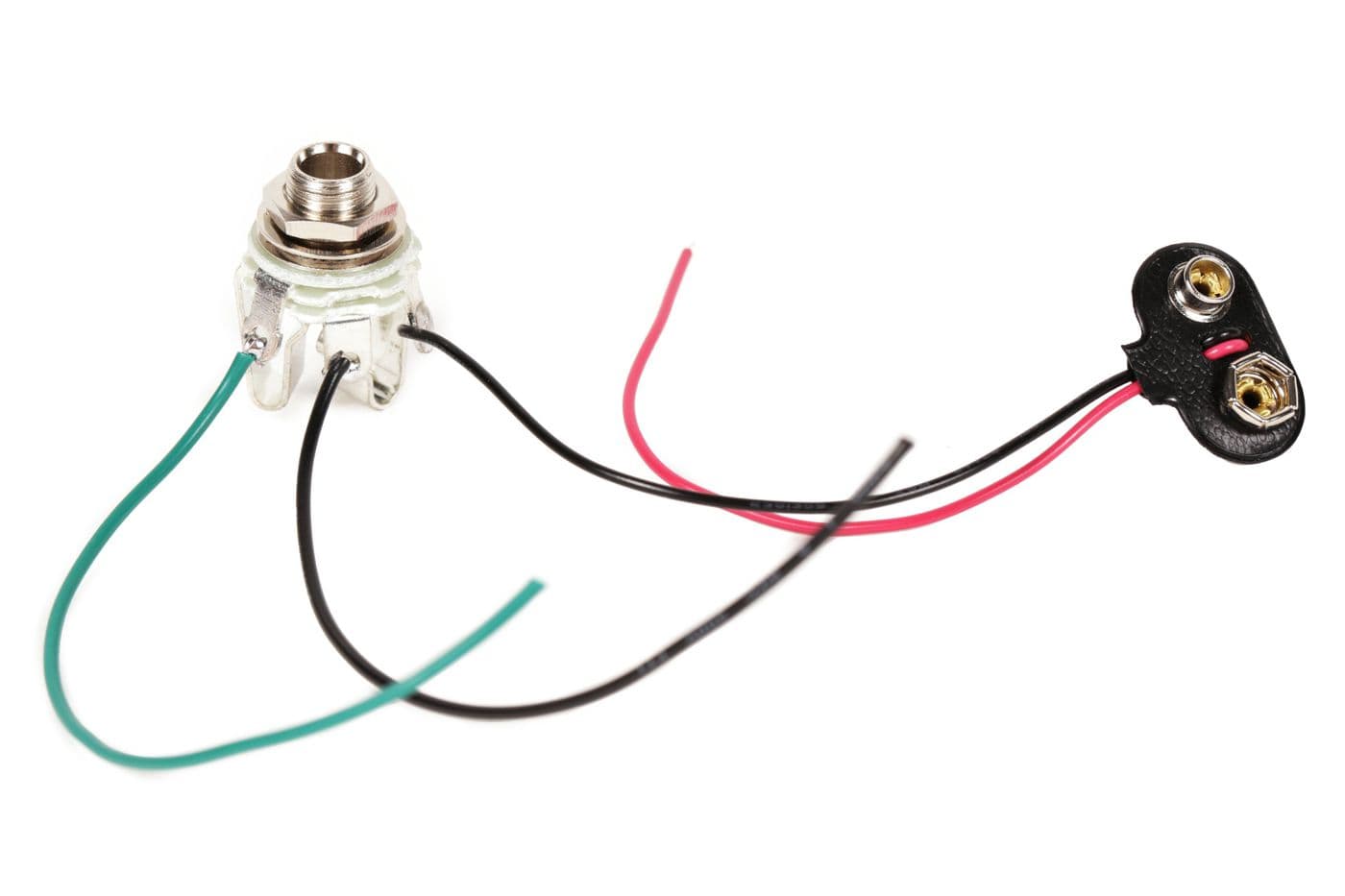

Wire the Power and Jack
Wire the Power and Jack
Connect a 5" black wire to the terminal connected to the center barrel jack.
Connect the black wire from the 9V battery clip to the terminal connected to the smaller signal tab.
Finally, connect a 5" green wire to the terminal connected to the longer signal tab.
15
Mount the jacks and potentiometers to the inside of the enclosure using their mounting nuts.
In my pedal, the input and gain pot will be on the left of the pedal, and the 100K volume pot and output jack will be on the right.
16

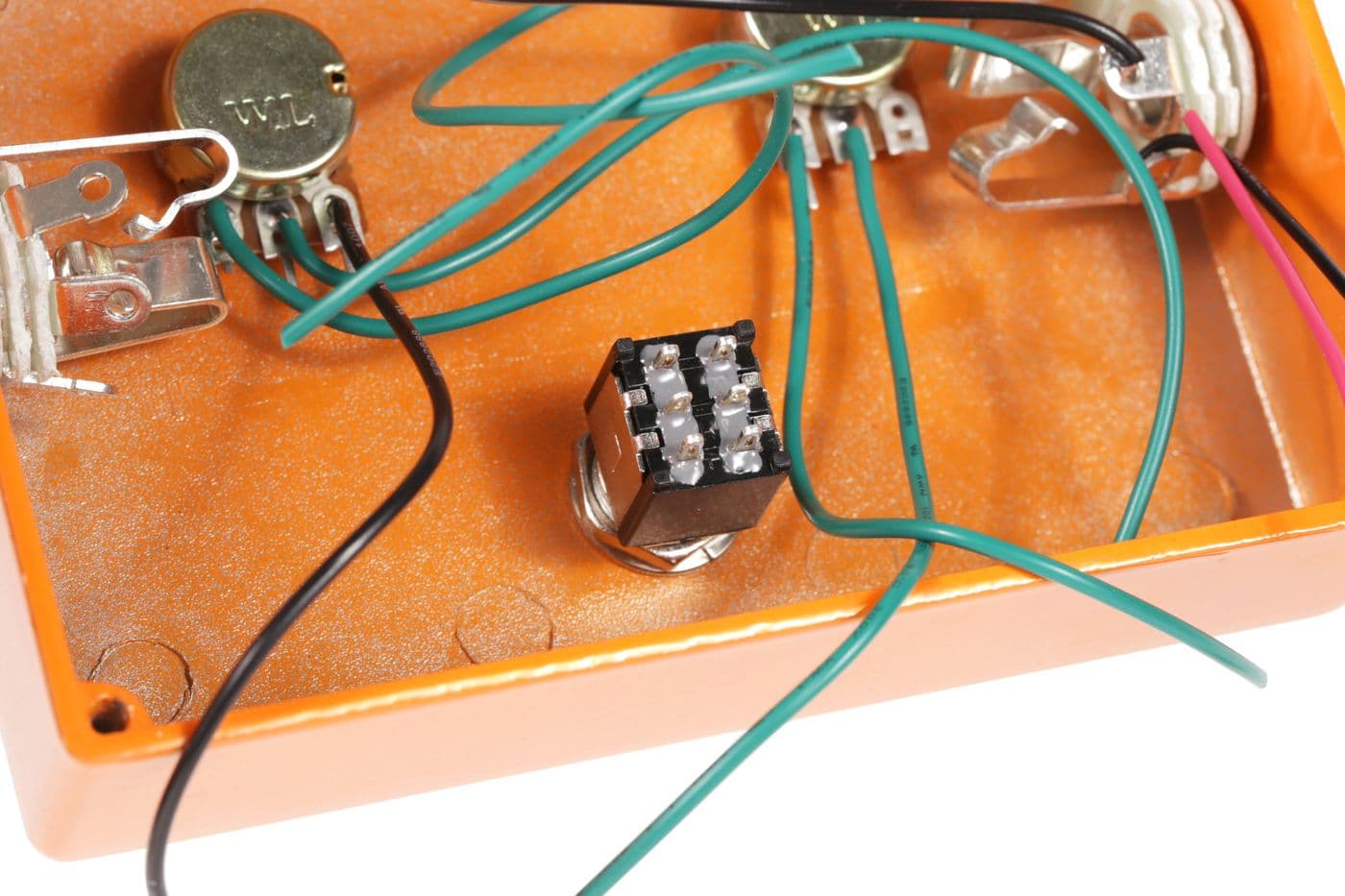

Mount the Switch
Mount the Switch
Mount the Switch

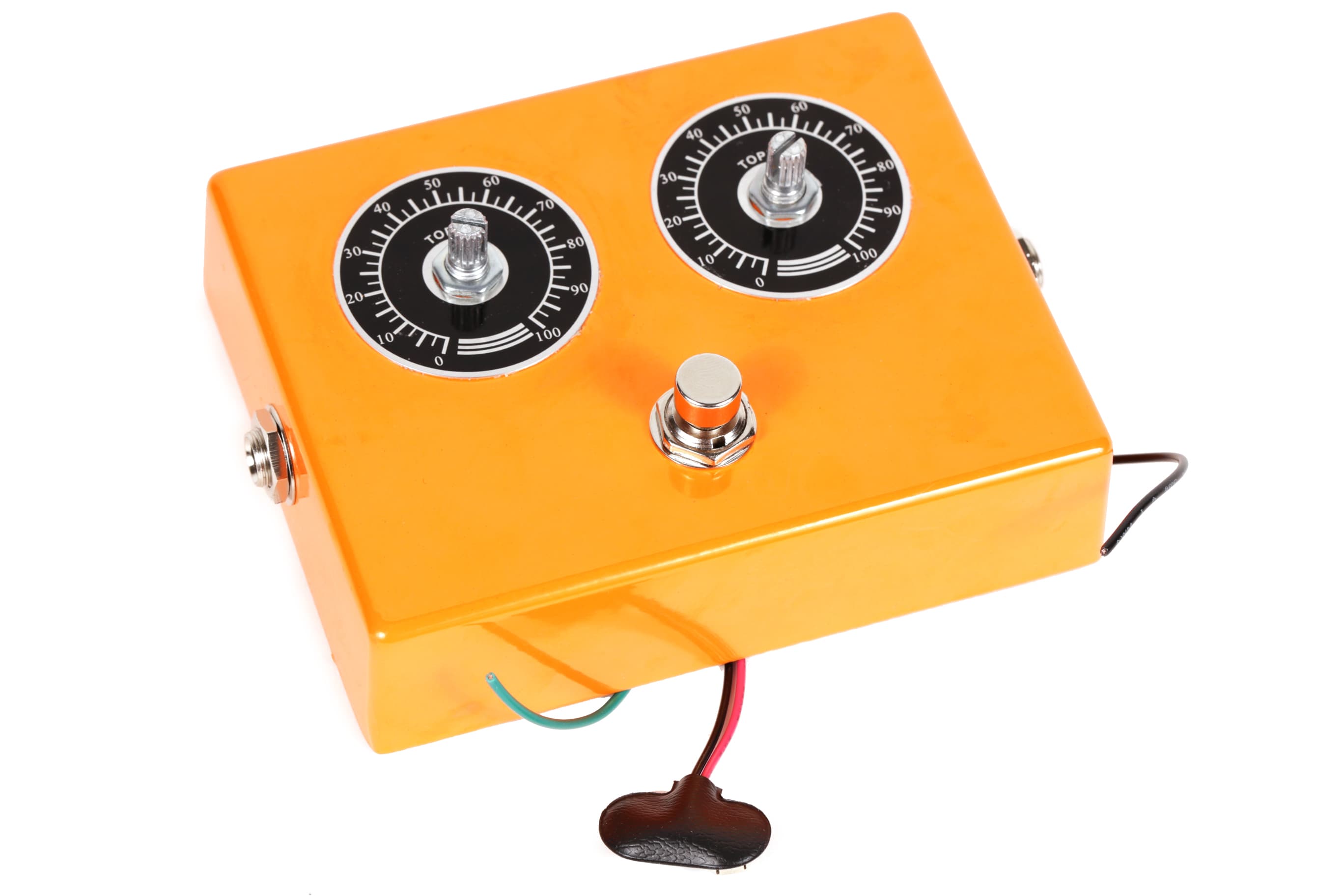

Mount the switch to the enclosure using its mounting hardware.
17

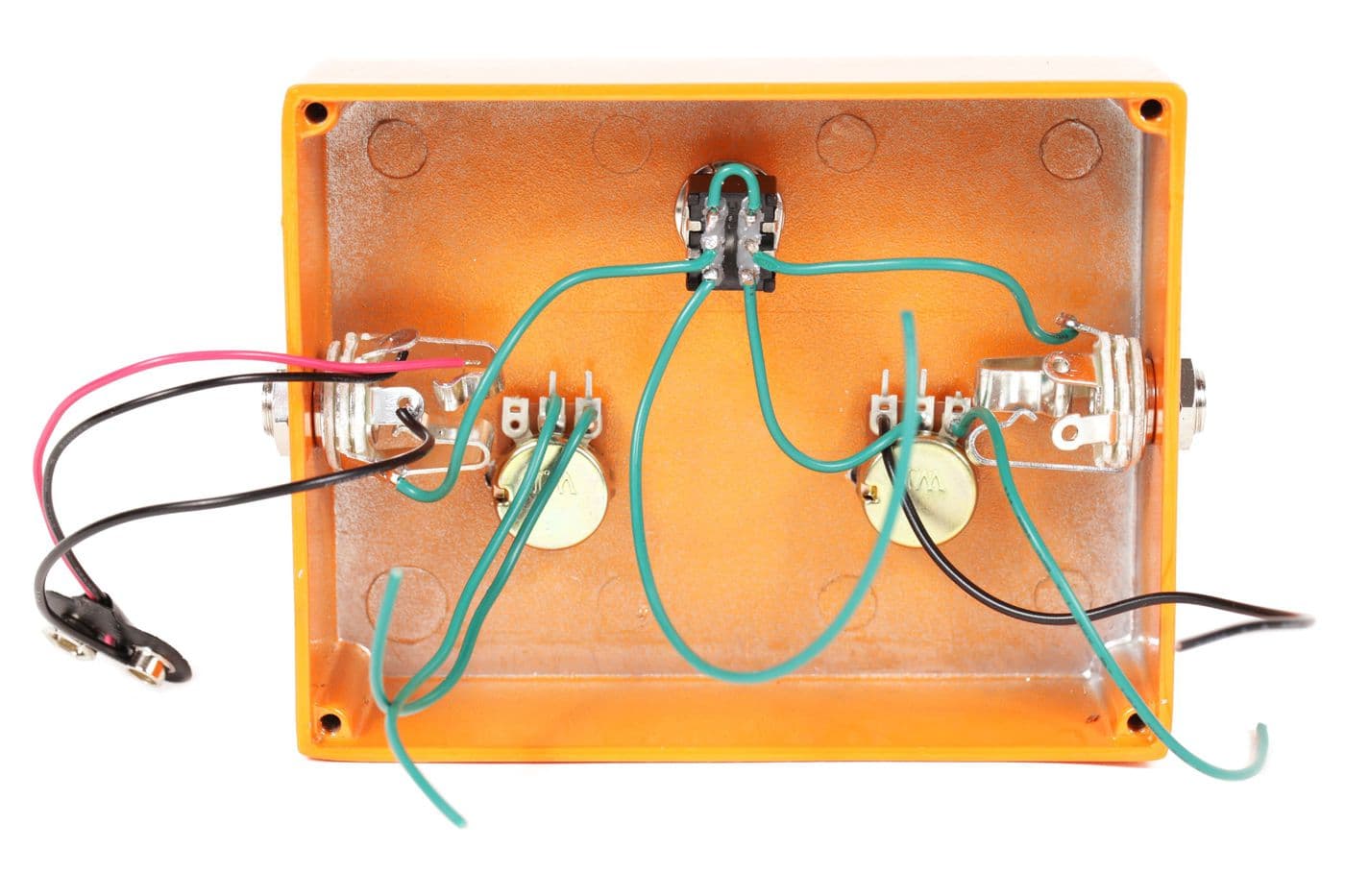

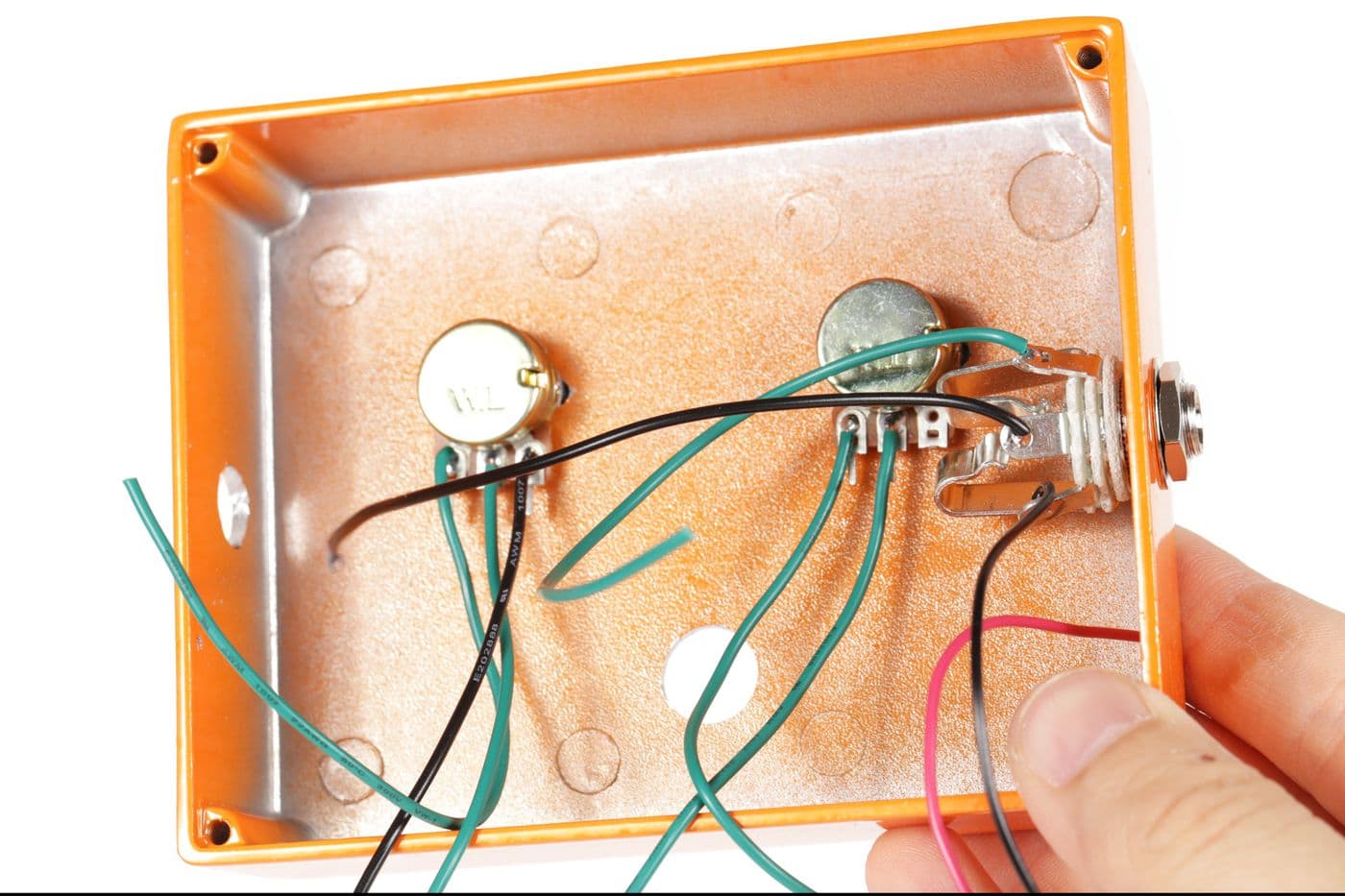

Wire the Switch
Wire the Switch
Connect one of the switch's center pin to the green wire connected to the audio / power jack.
Wire the other center pin to the identical pin on the other audio jack.
Wire together one set of outer pins.
Solder a wire between the remaining pin in-line with the output jack to the center pin on the volume potentiometer.
Finally, solder a green wire to the remaining free pin. This will later be attached to the circuit board.
18

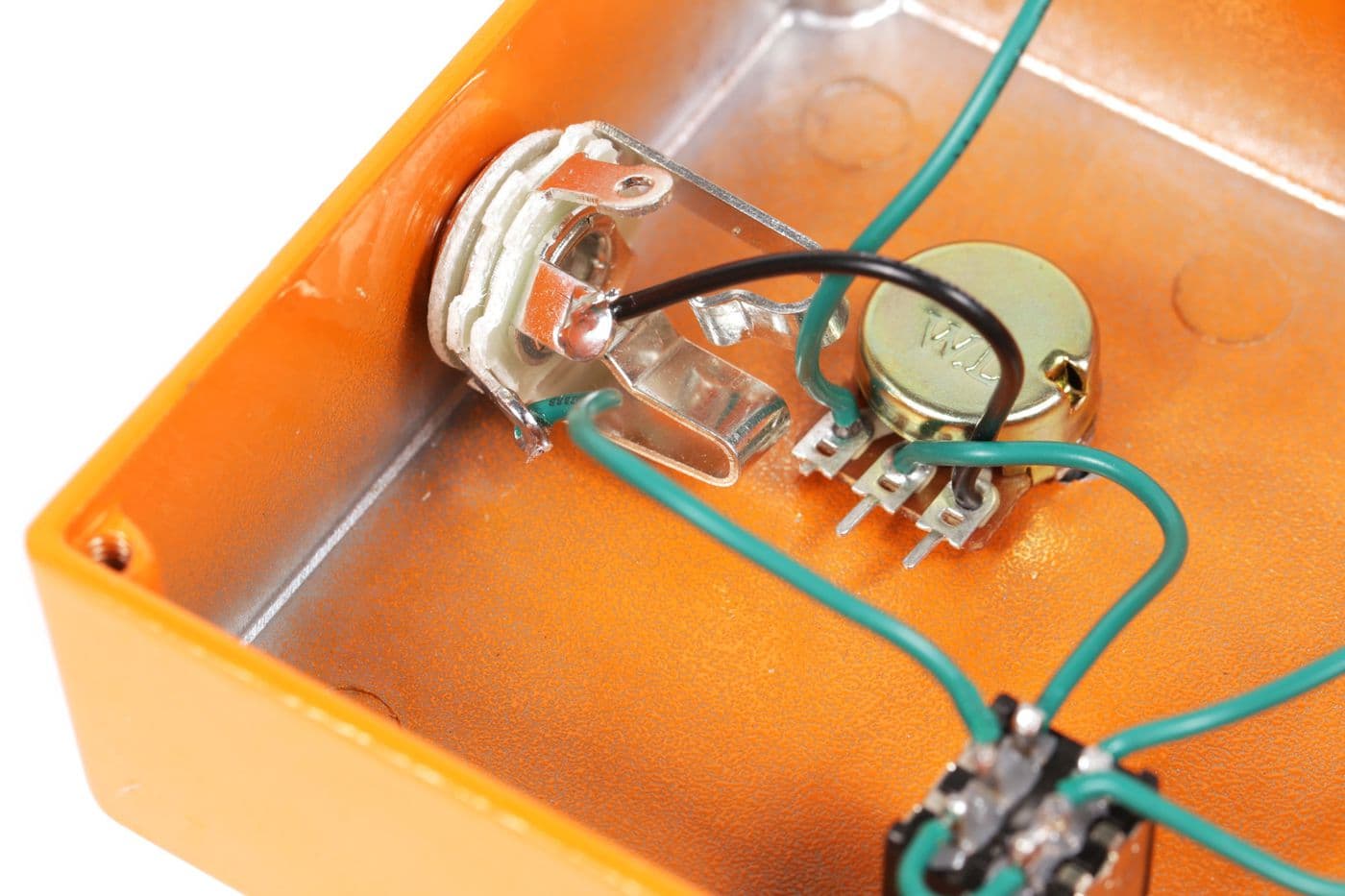

Ground Connection
Ground Connection
Connect the black ground wire from the volume potentiometer to the terminal on the audio jack connected to the barrel.
It is important to understand what is happening here, and that it will only work with a metal enclosure. Basically, since the other jack is using the barrel connection as a switch for the ground, the entire case is electrically connected to the ground plane. Thus, the barrel jack on the other jack is also connected to ground. So, by connecting the potentiometer to it, you are effectively connecting it to ground on the circuit board (without actually attaching it to the circuit board).
19

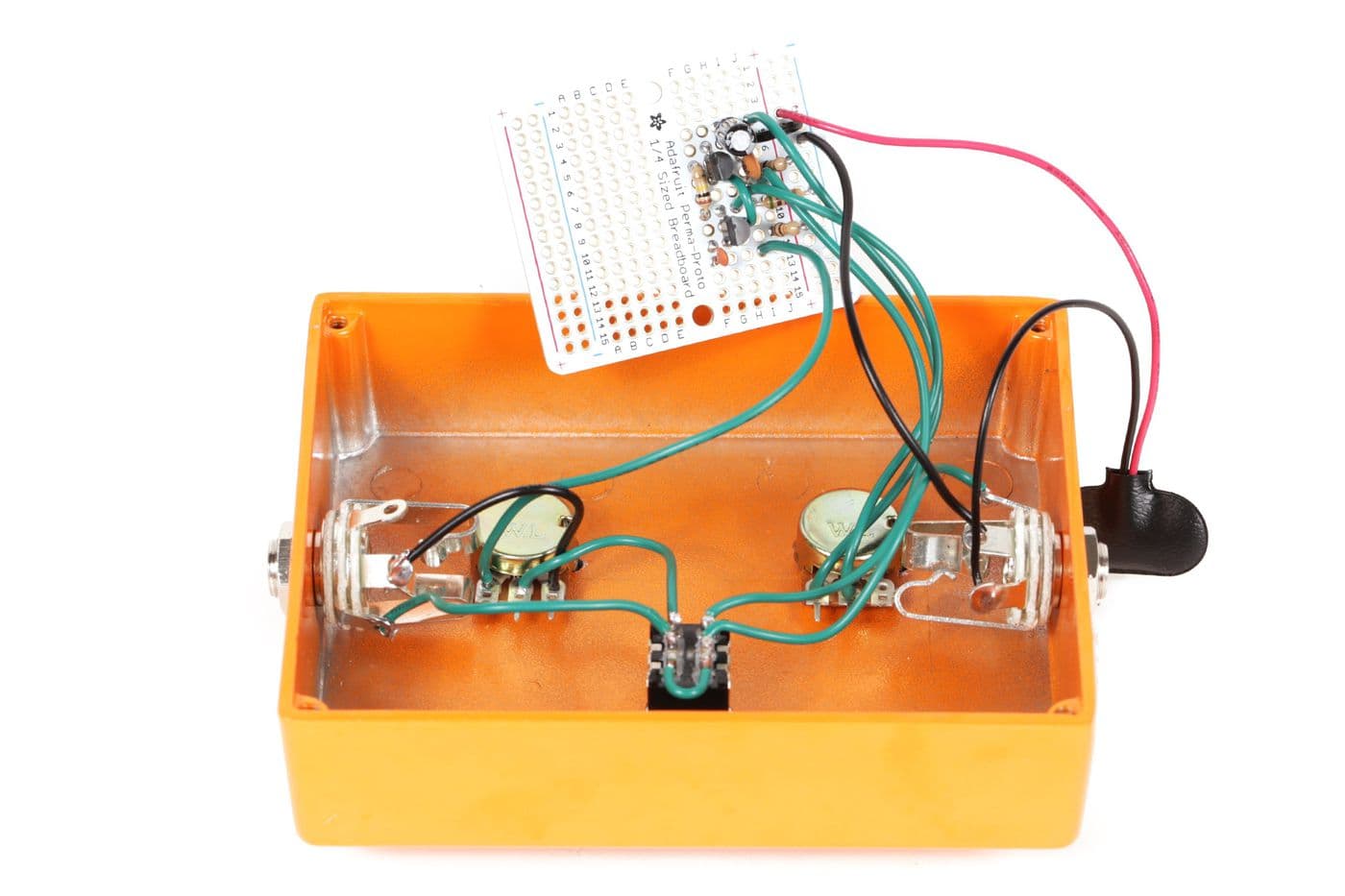

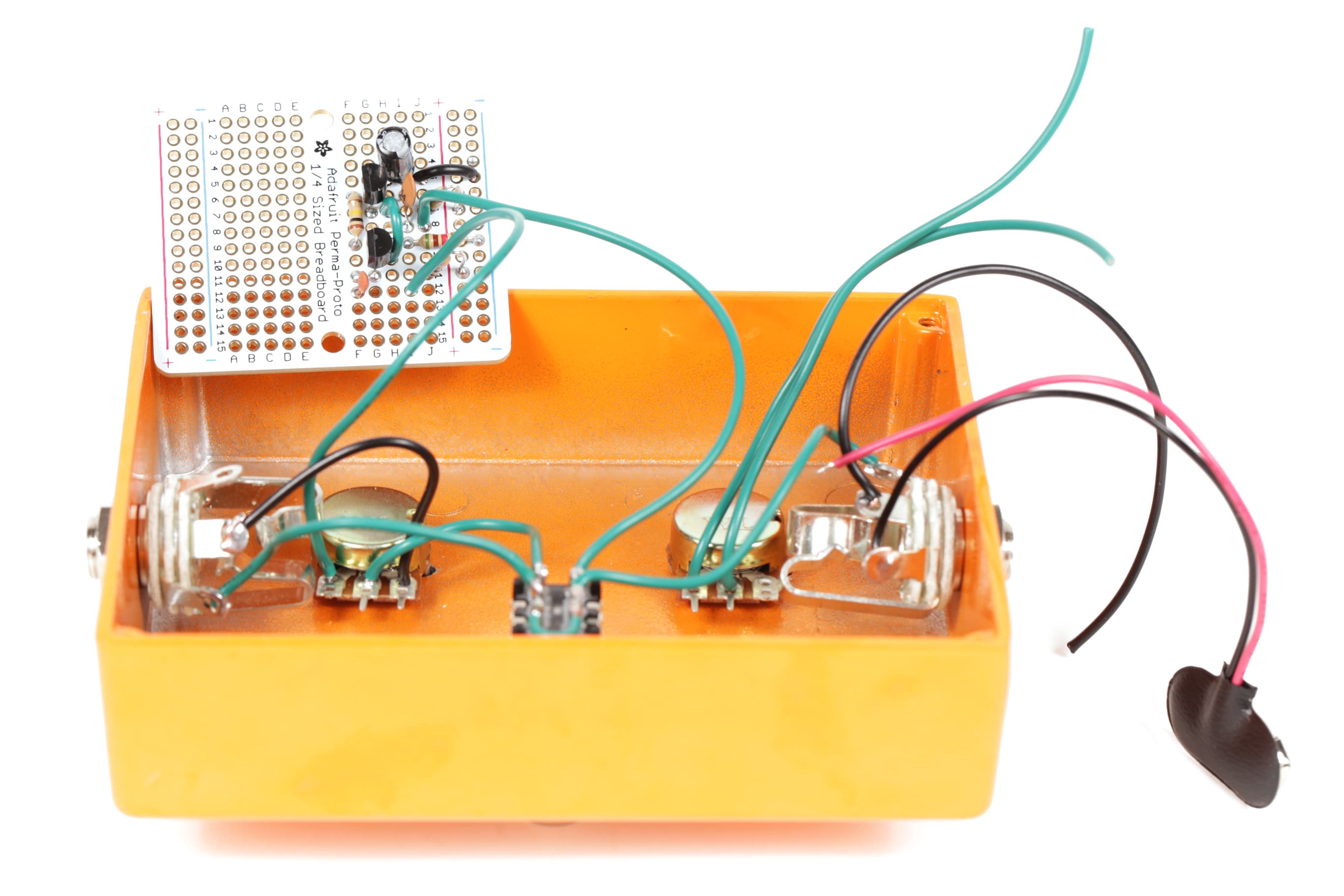

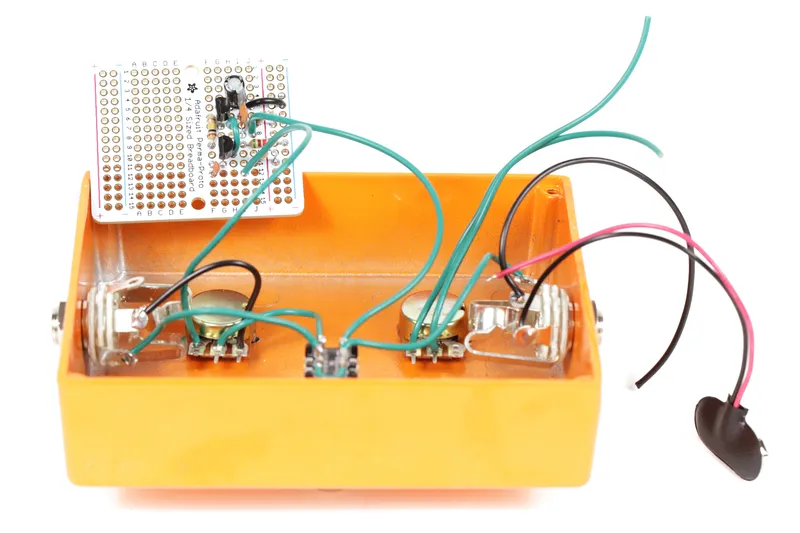

Wire the Circuit Board
Wire the Circuit Board
Wire the Circuit Board
Wire the Circuit Board

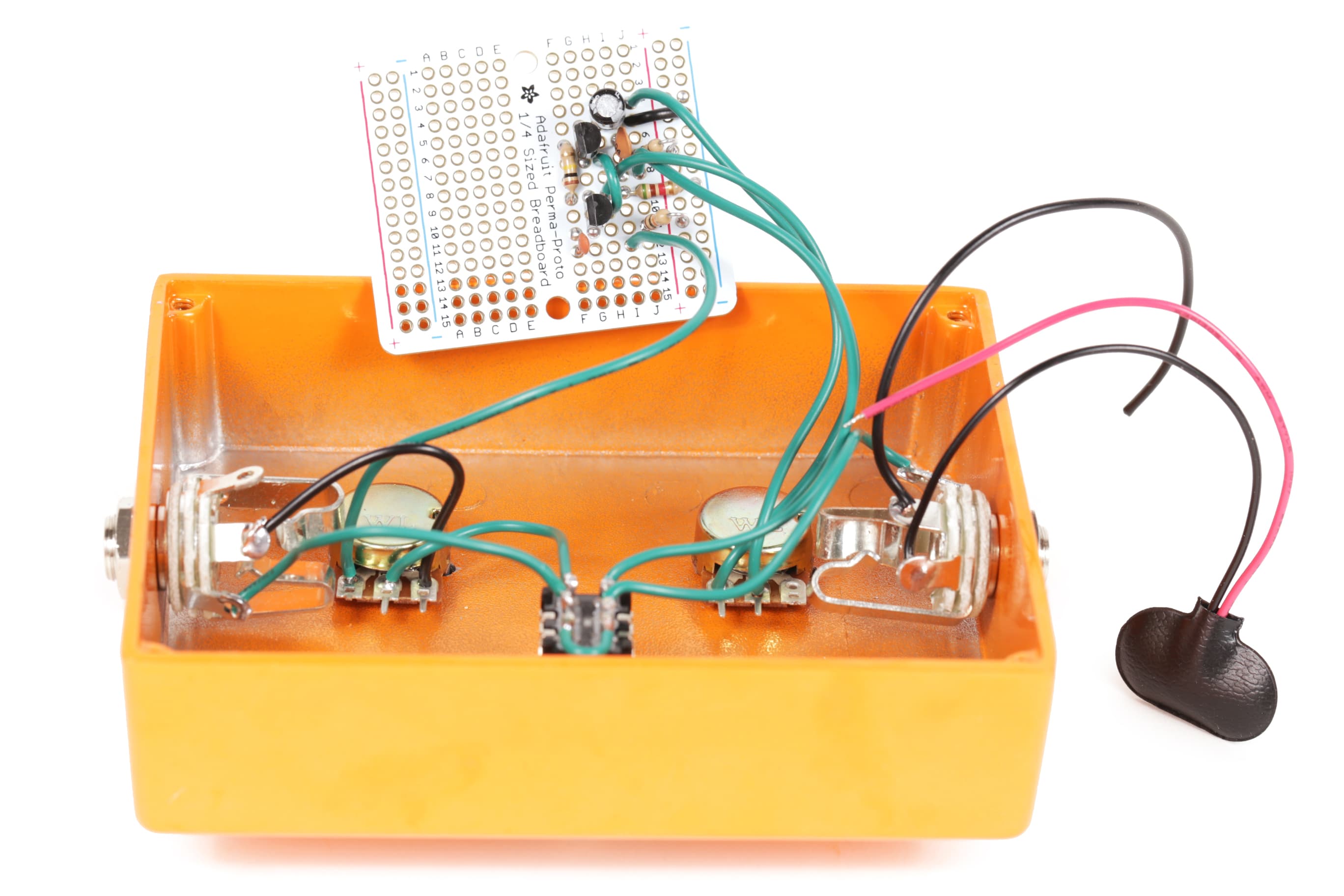

Now is time to attach the components mounted to the enclosure to the circuit board.
The red wire from the 9V power clip should go to the power rail, and the black wire from the stereo jack should be attached to the ground rail.
The gain potentiometer should be attached as specified in the schematic.
Lastly, the remaining unconnected switch wire in-line with the input should be connected to the input on the circuit, and remaining wire from the volume potentiometer should be connected to the output on the circuit board.
20

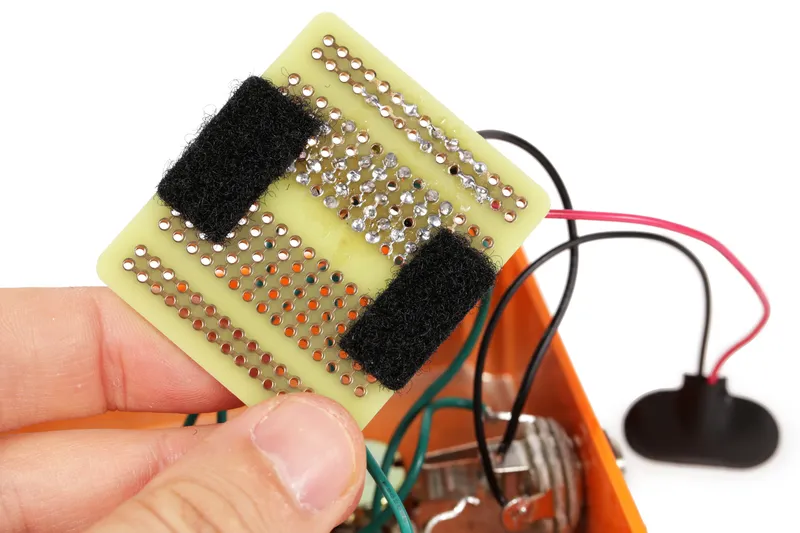

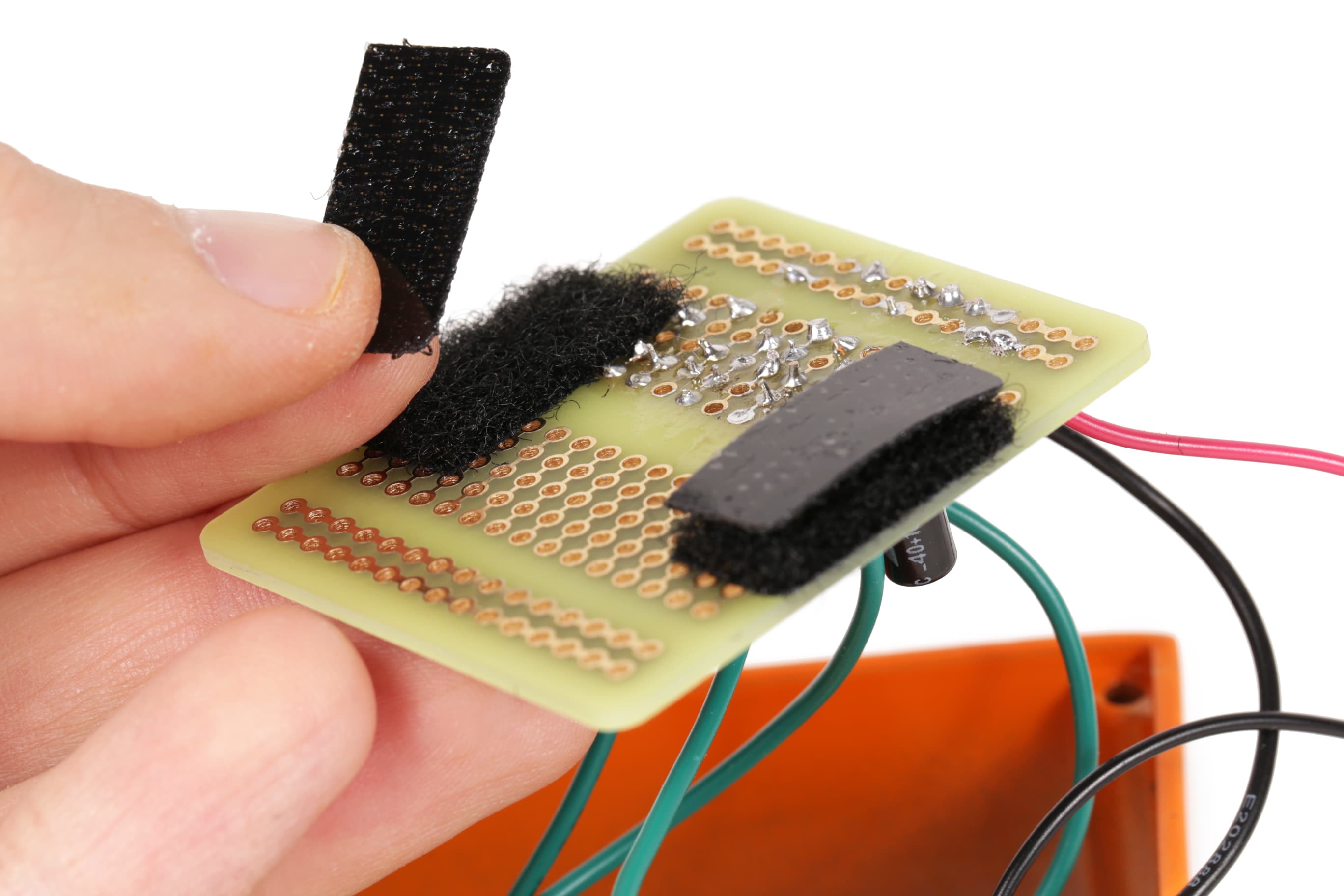

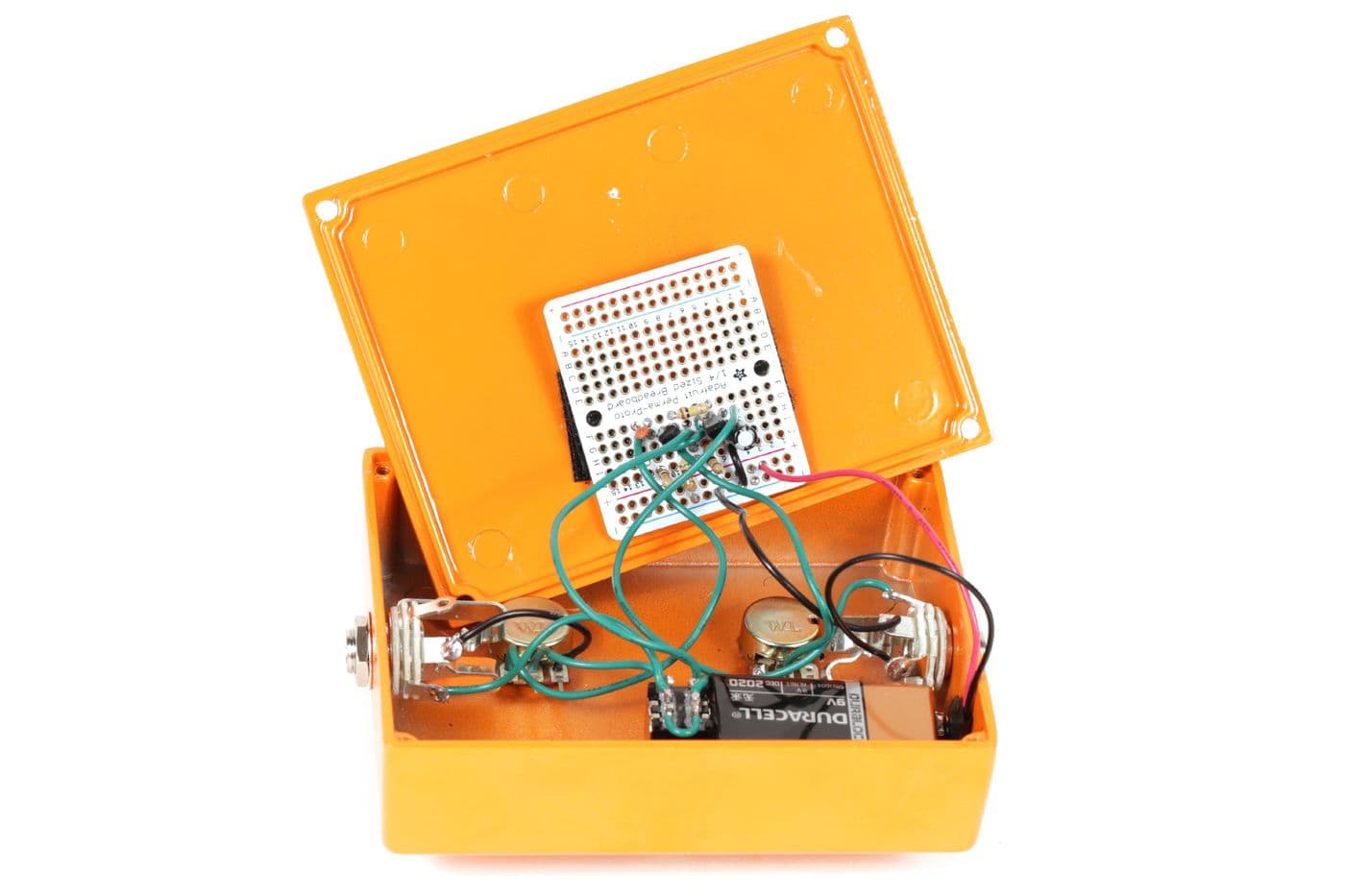

Velcro
Velcro
Velcro
Velcro
Velcro

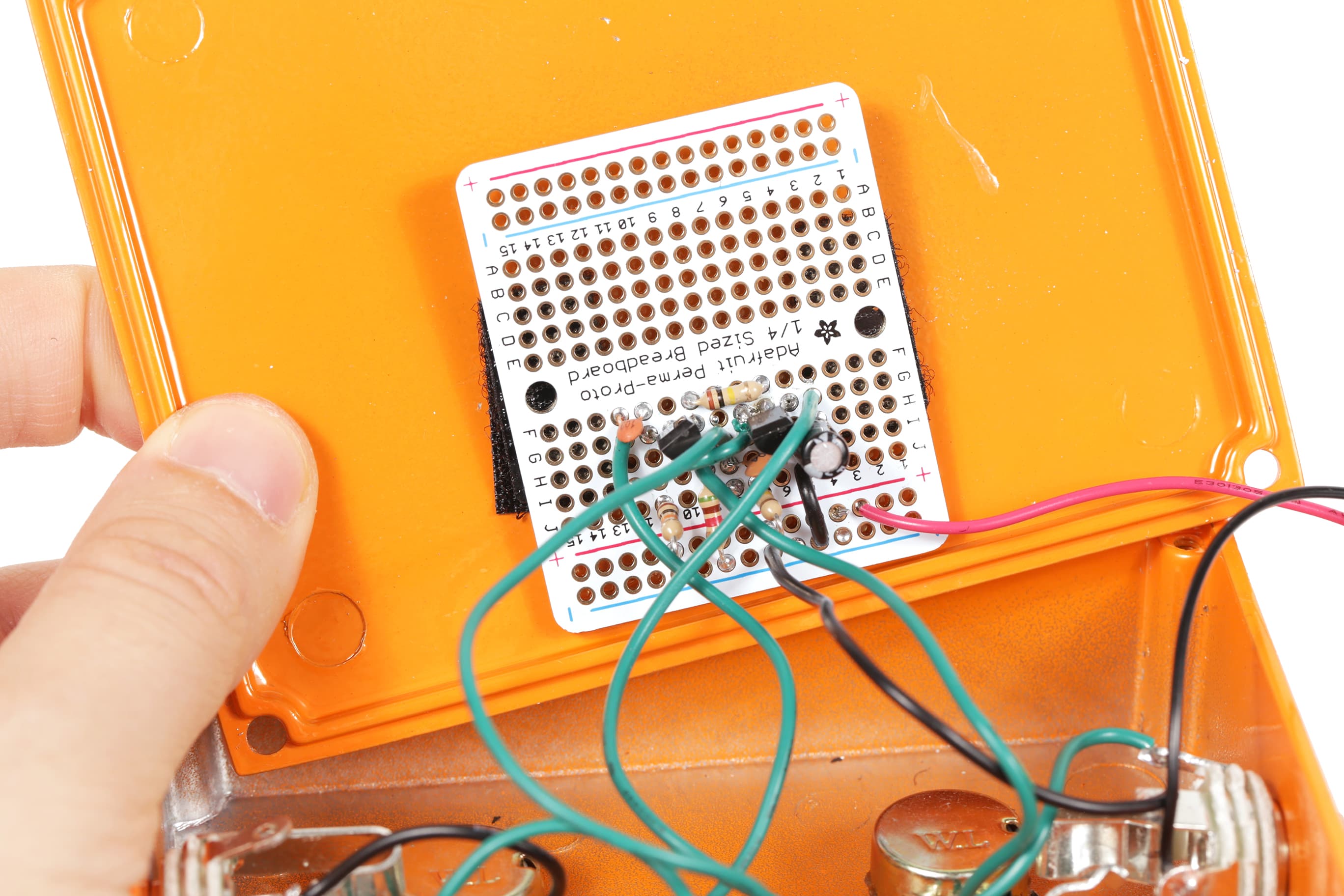

Attach the circuit board to the bottom of the enclosure using self-adhesive Velcro tabs. This both holds it in place,
and prevents it from touching the lid and shorting the circuit.
21

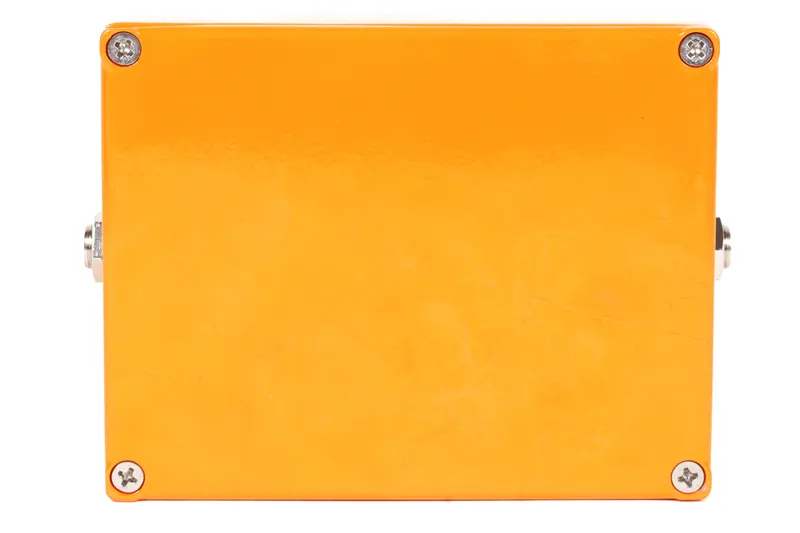

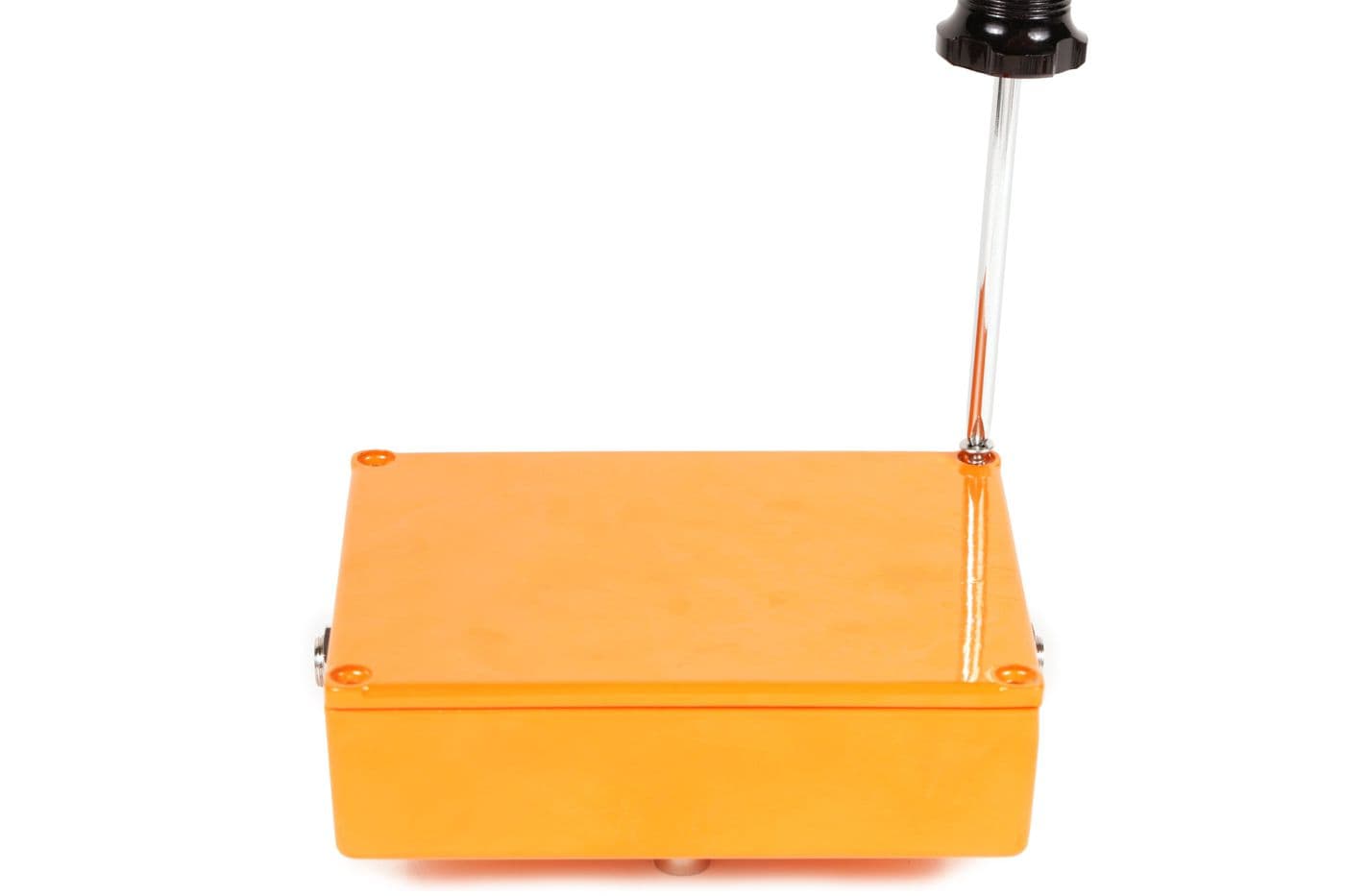

Shut the Enclosure
Shut the Enclosure
Shut the Enclosure

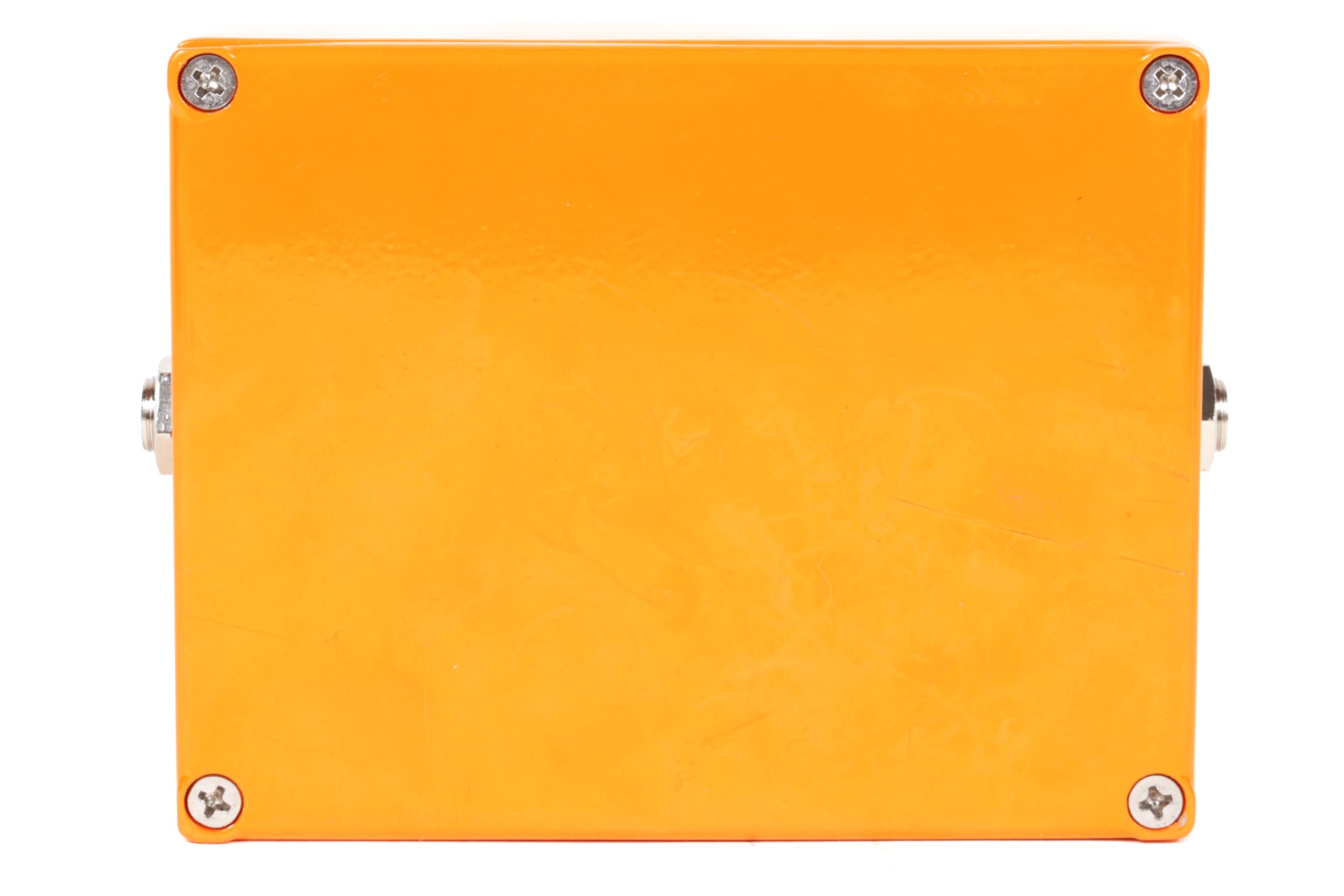

Plug in the battery if you have not done so already and fasten the lid onto the enclosure using its mounting screws.
22

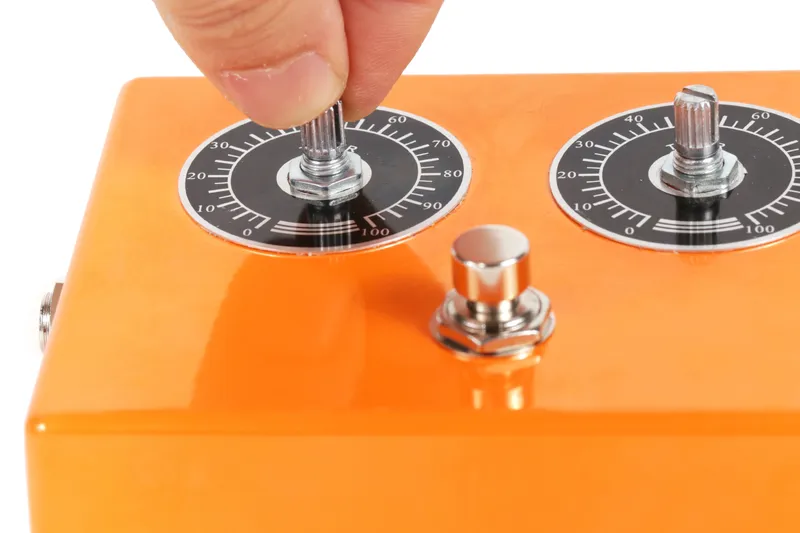

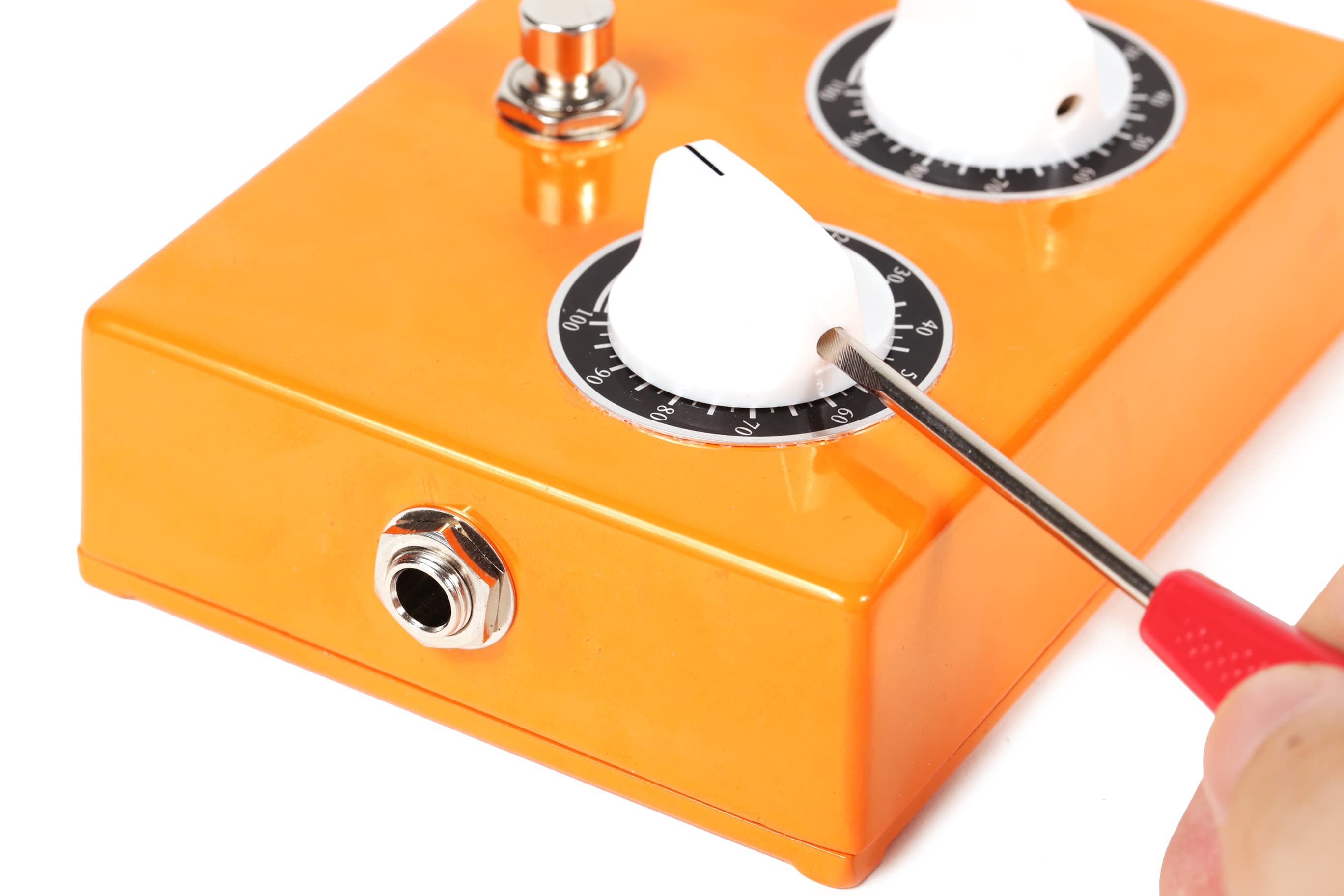

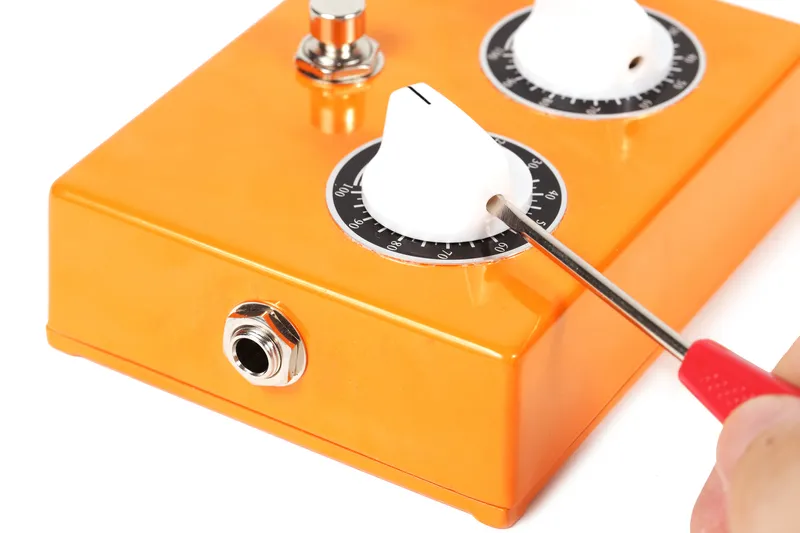

Attach the Knobs
Attach the Knobs
Attach the Knobs
Attach the Knobs
Attach the Knobs

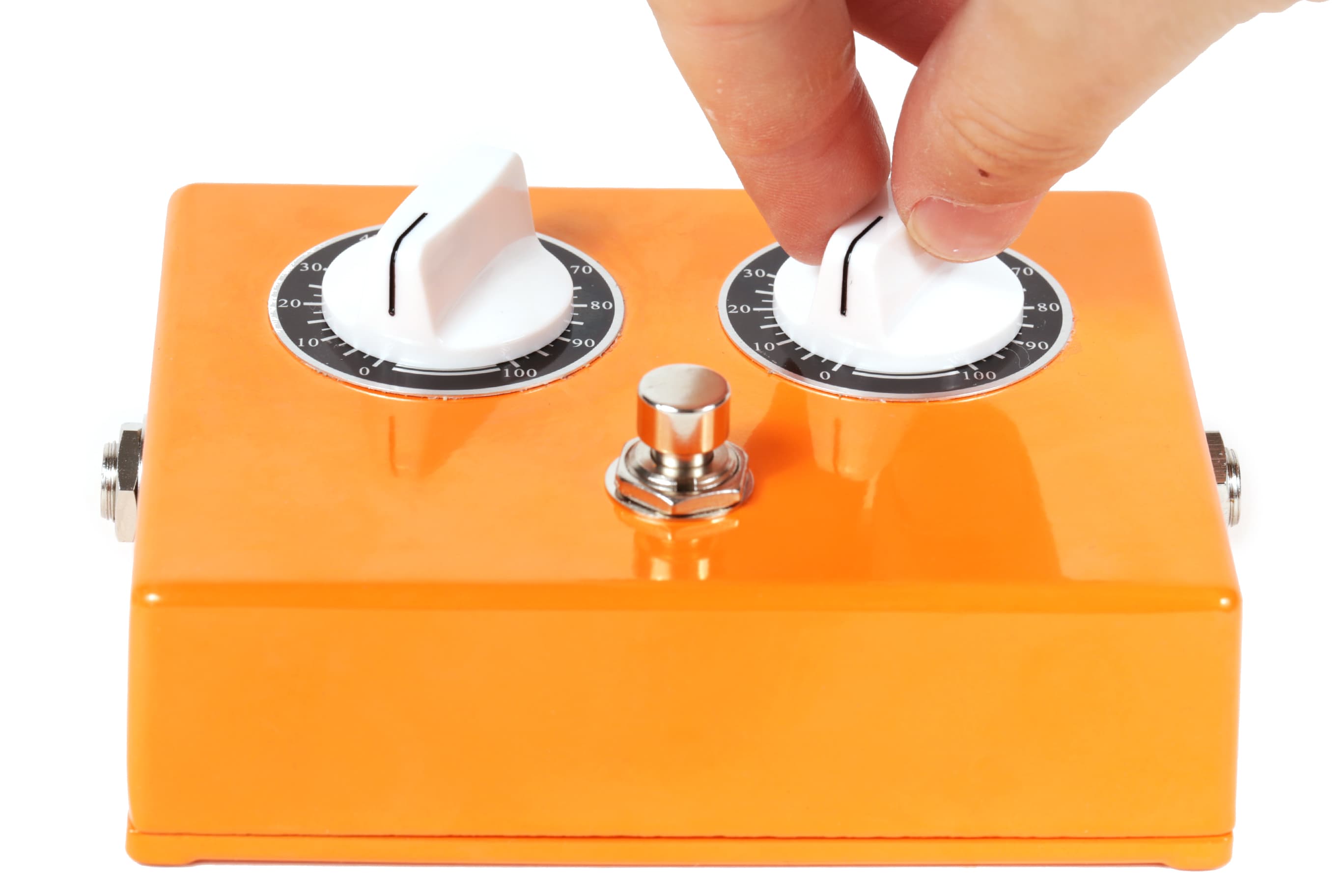

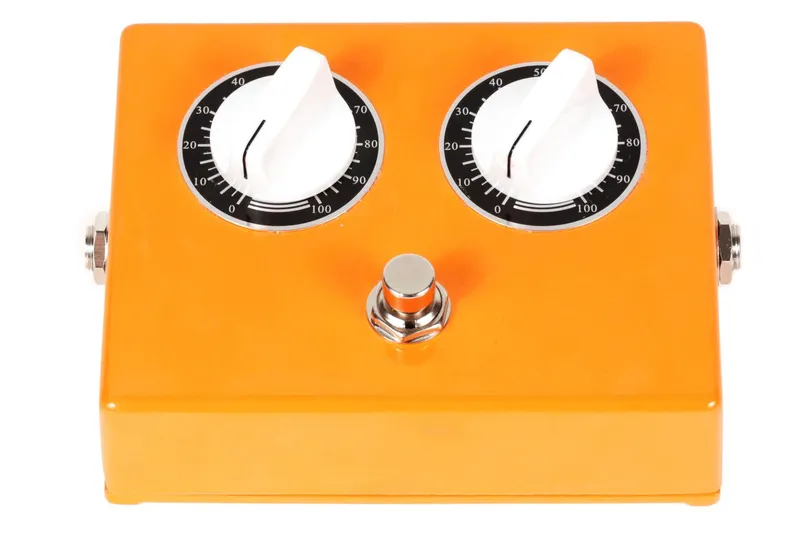

Turn the potentiometer knobs counter clockwise until they stop turning.
Place the knobs in place with their pointers pointing at the starting position on the dial.
Fasten the knobs in place with their set screws.
Conclusion
You are now ready to plug everything in and rock out.
