In this instructable I am going to show you how to make Bluetooth controled car with 2 DC motors.
Steps
1

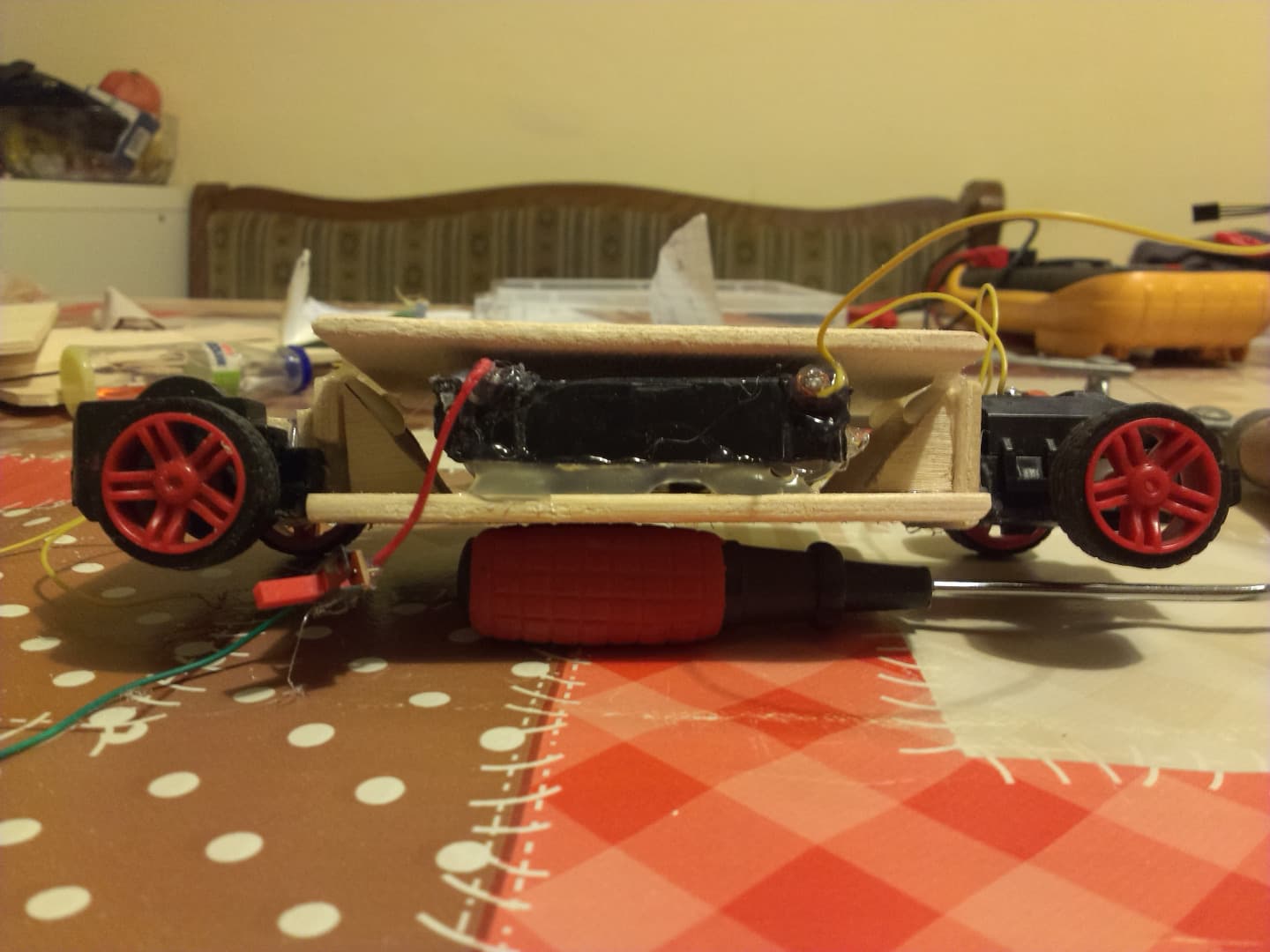

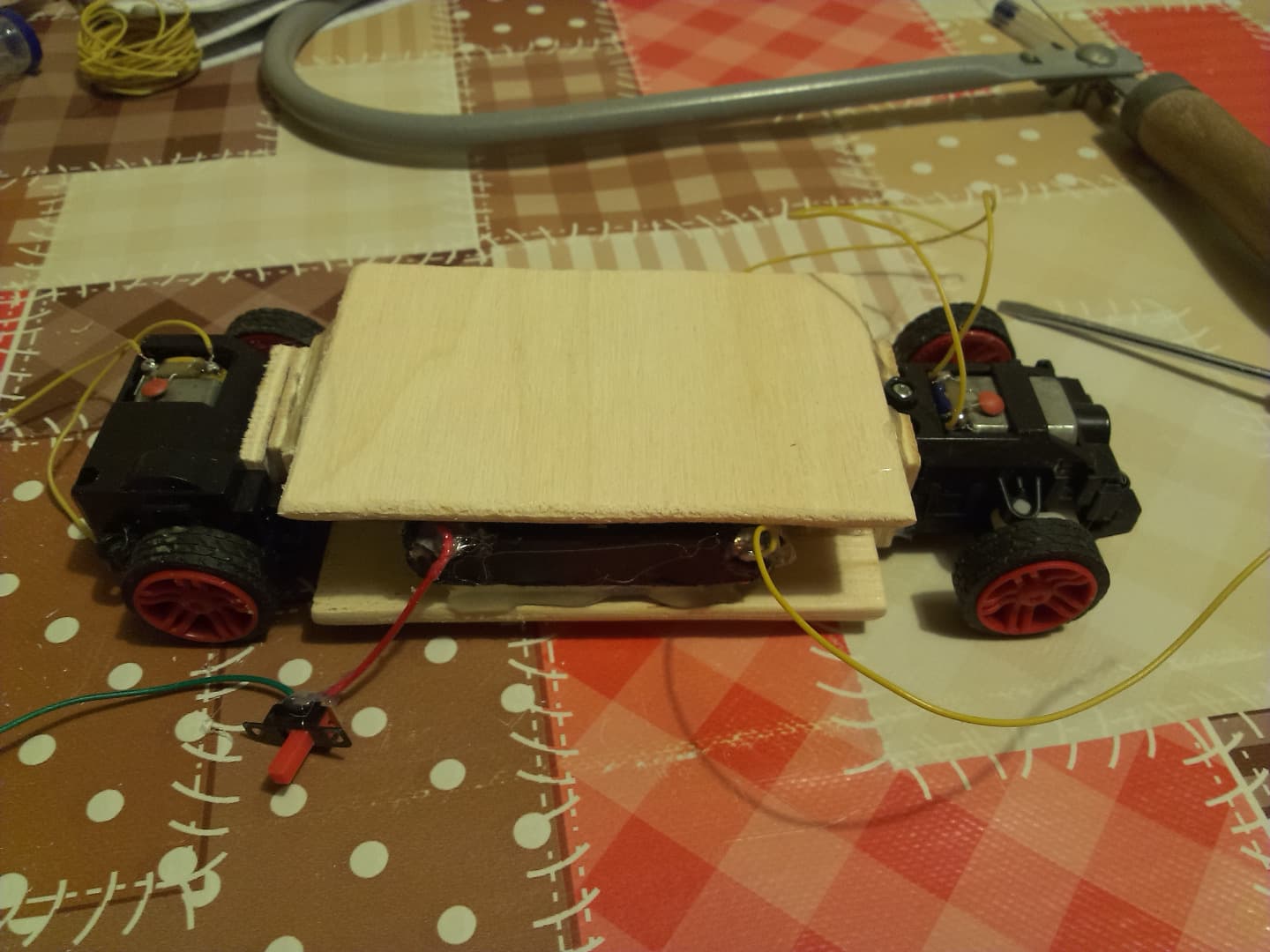

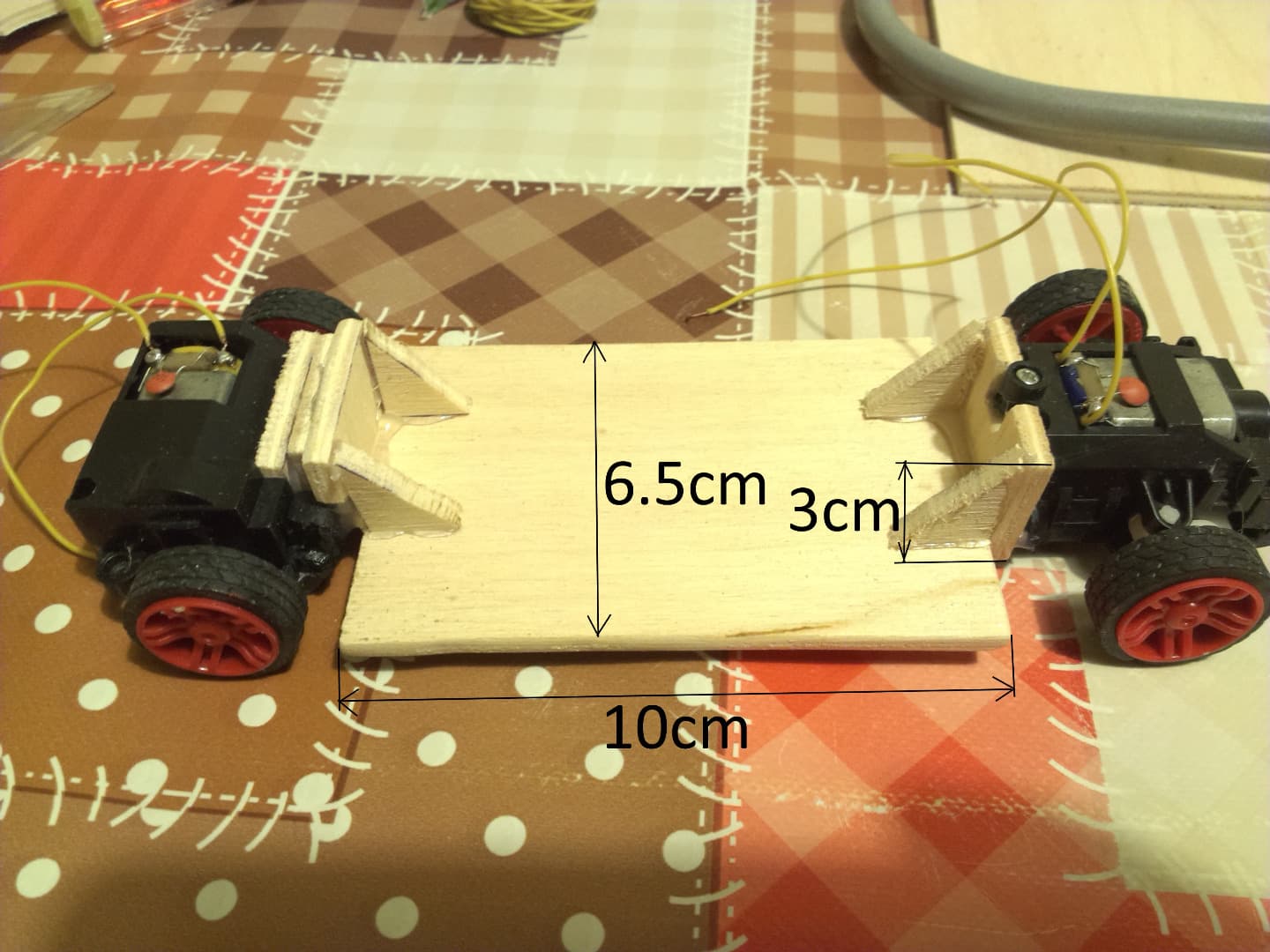

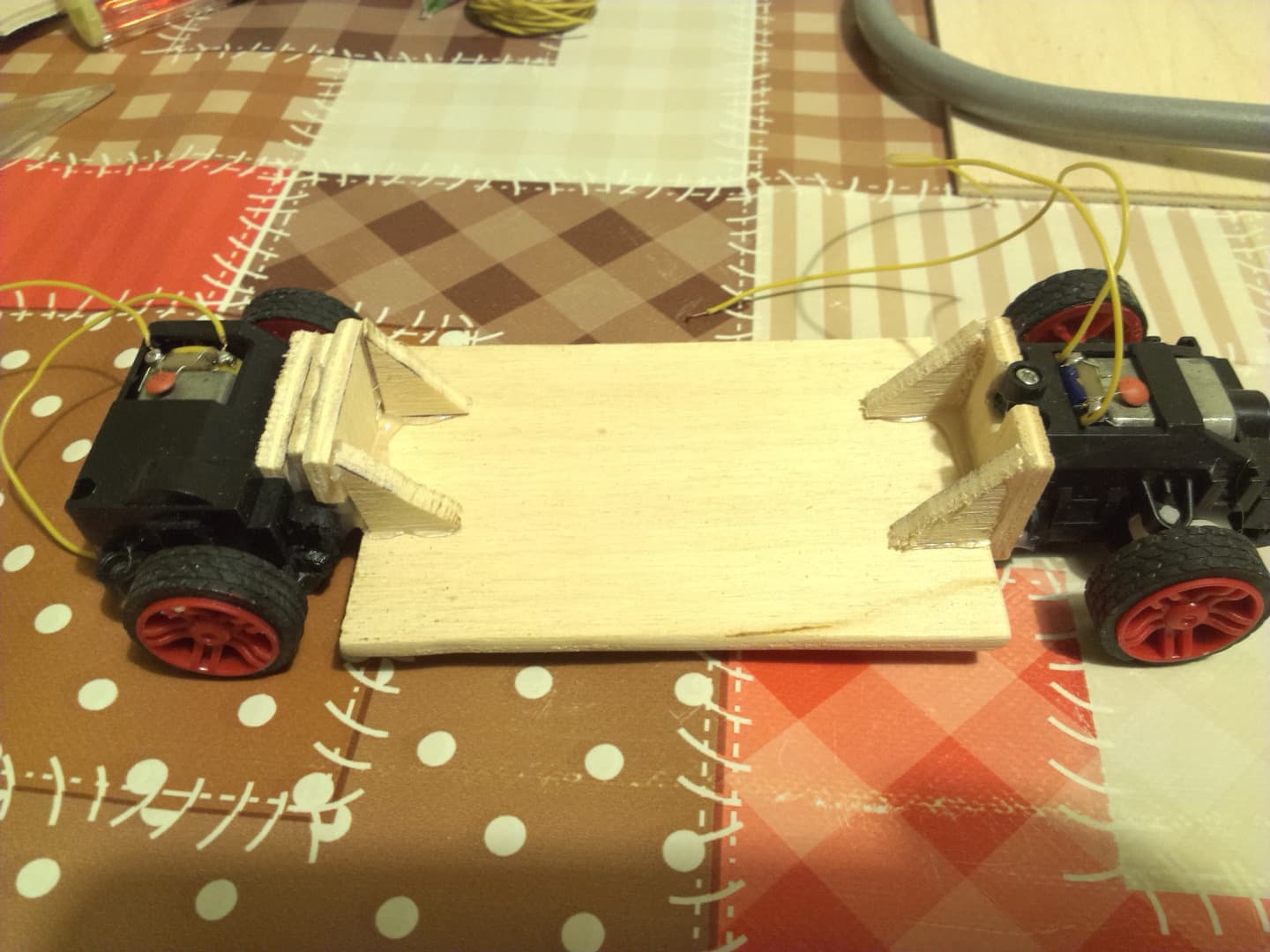

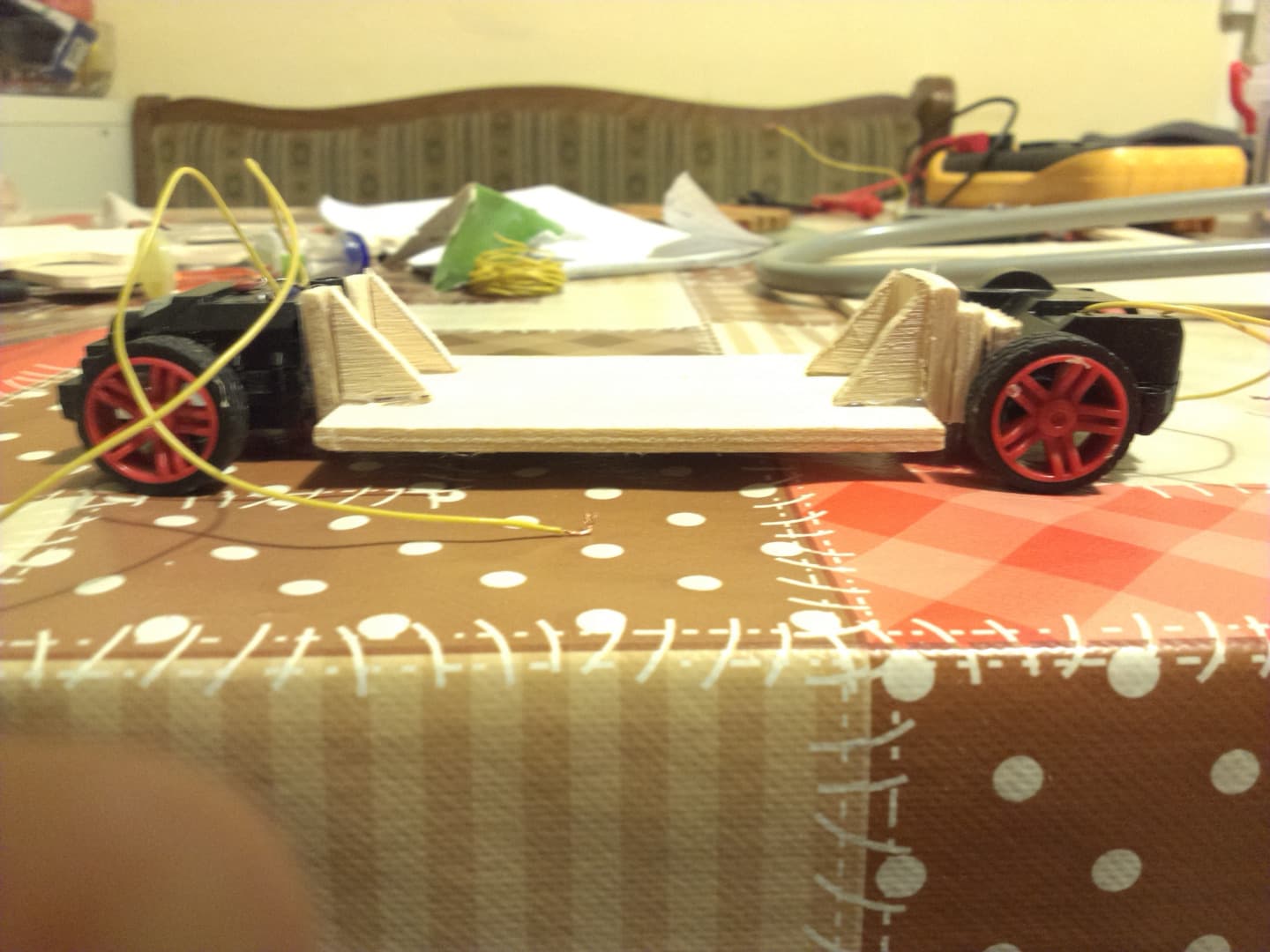

Chassis Editing
Chassis Editing
Chassis Editing
Chassis Editing
Chassis Editing
+2

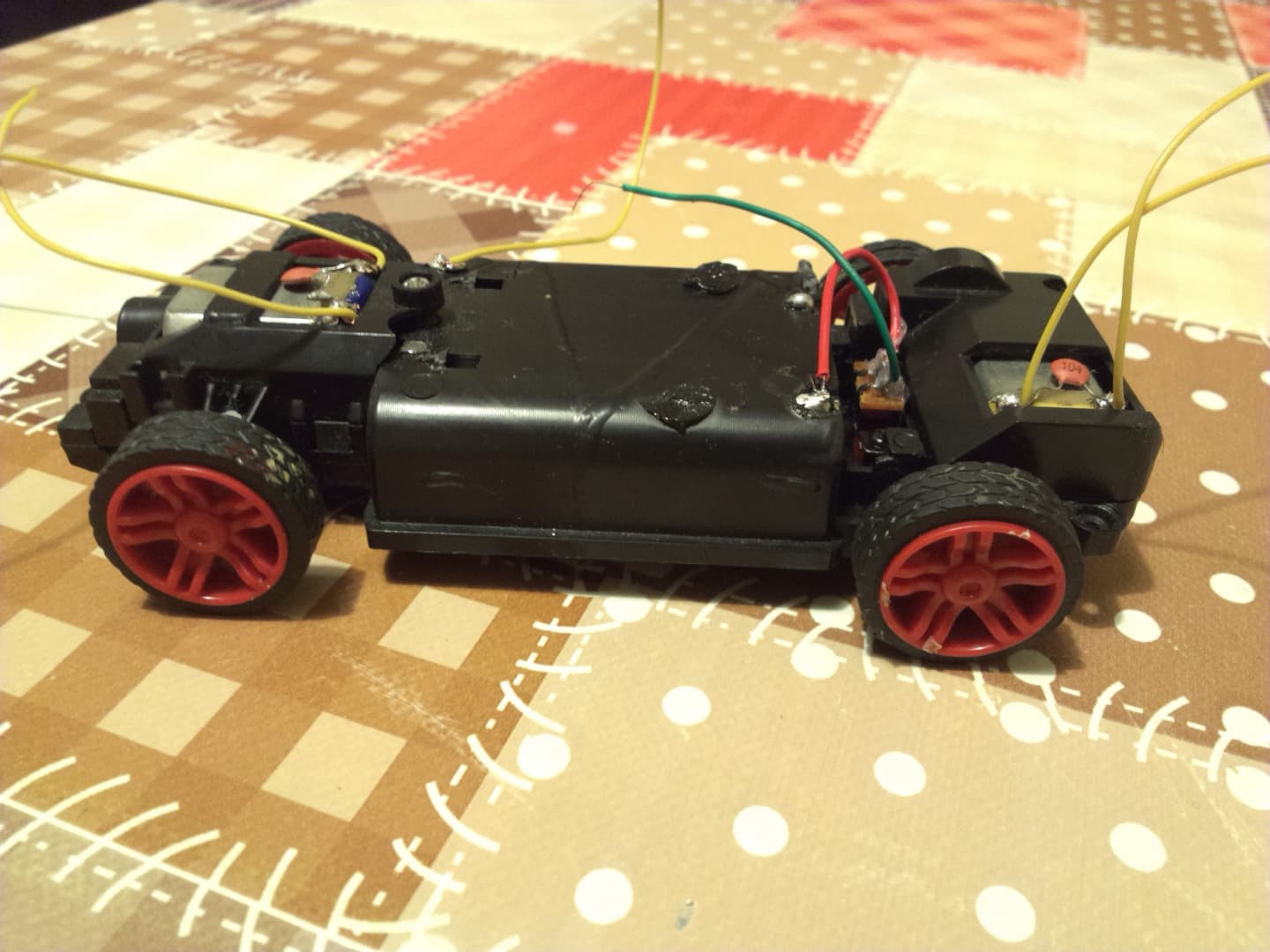

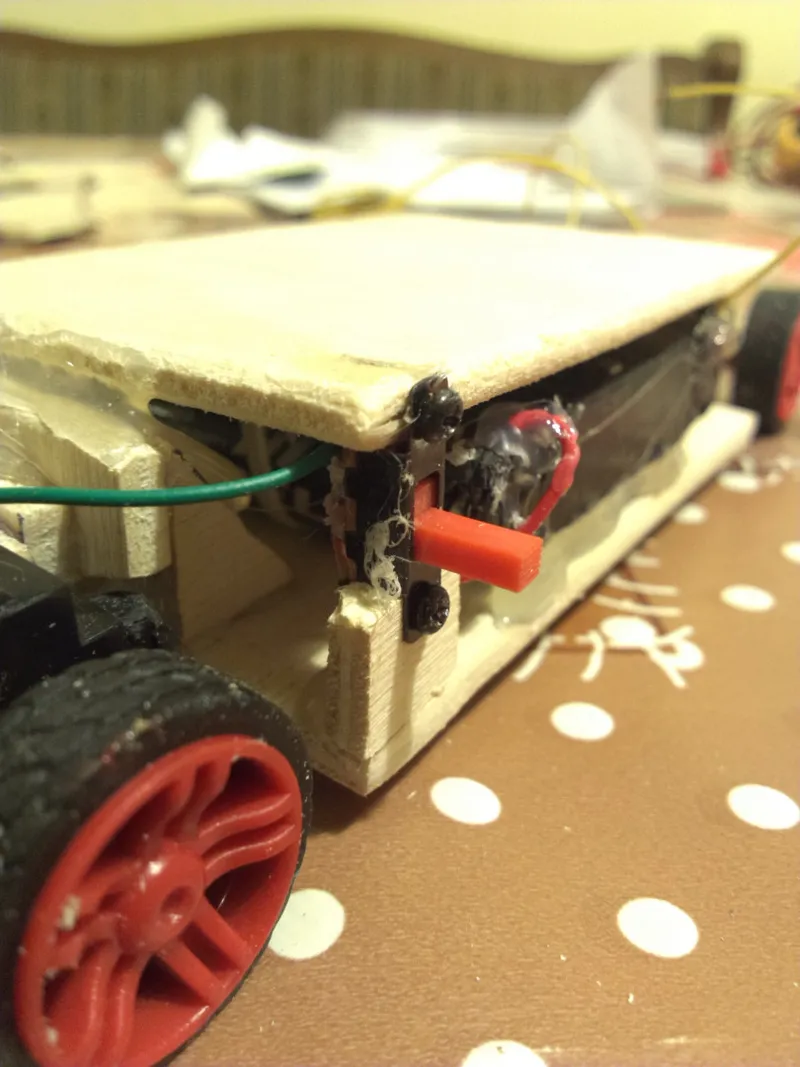

I cut off Middle plastic part and replaced it with wood, then I added 4x1.5V battery pack in the middle of it.
2

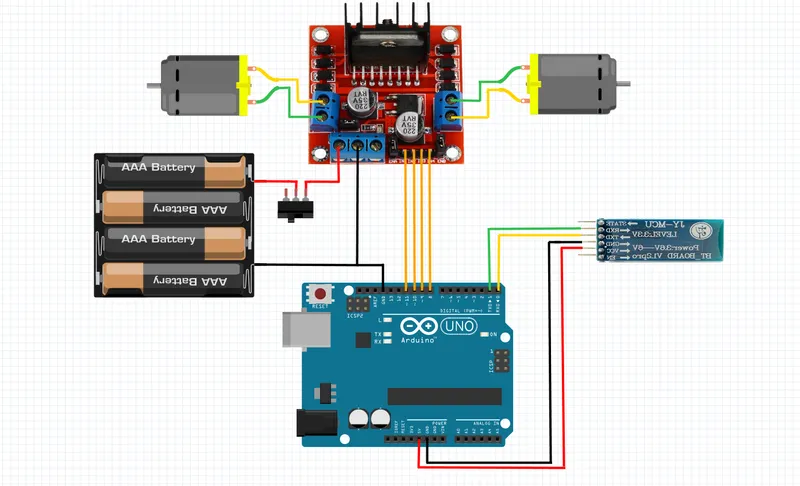

Wiring Scheme
Wiring Scheme
Connect one motor to the OUT1 and OUT2 pins of L298N, connect second to the OUT3 and OUT4 pins.
Connect positive wire of batteries to +12V pin and negative to the GND of L298N, then connect same GND to GND of arduino.
Pins of HC-05 are conected to arduino like this: GND to GND; VCC to 5V; RX to TX and TX to RX.
Pins of arduino 8,9,10,11 are connected to IN1,IN2,IN3,IN4 of L298N.
3

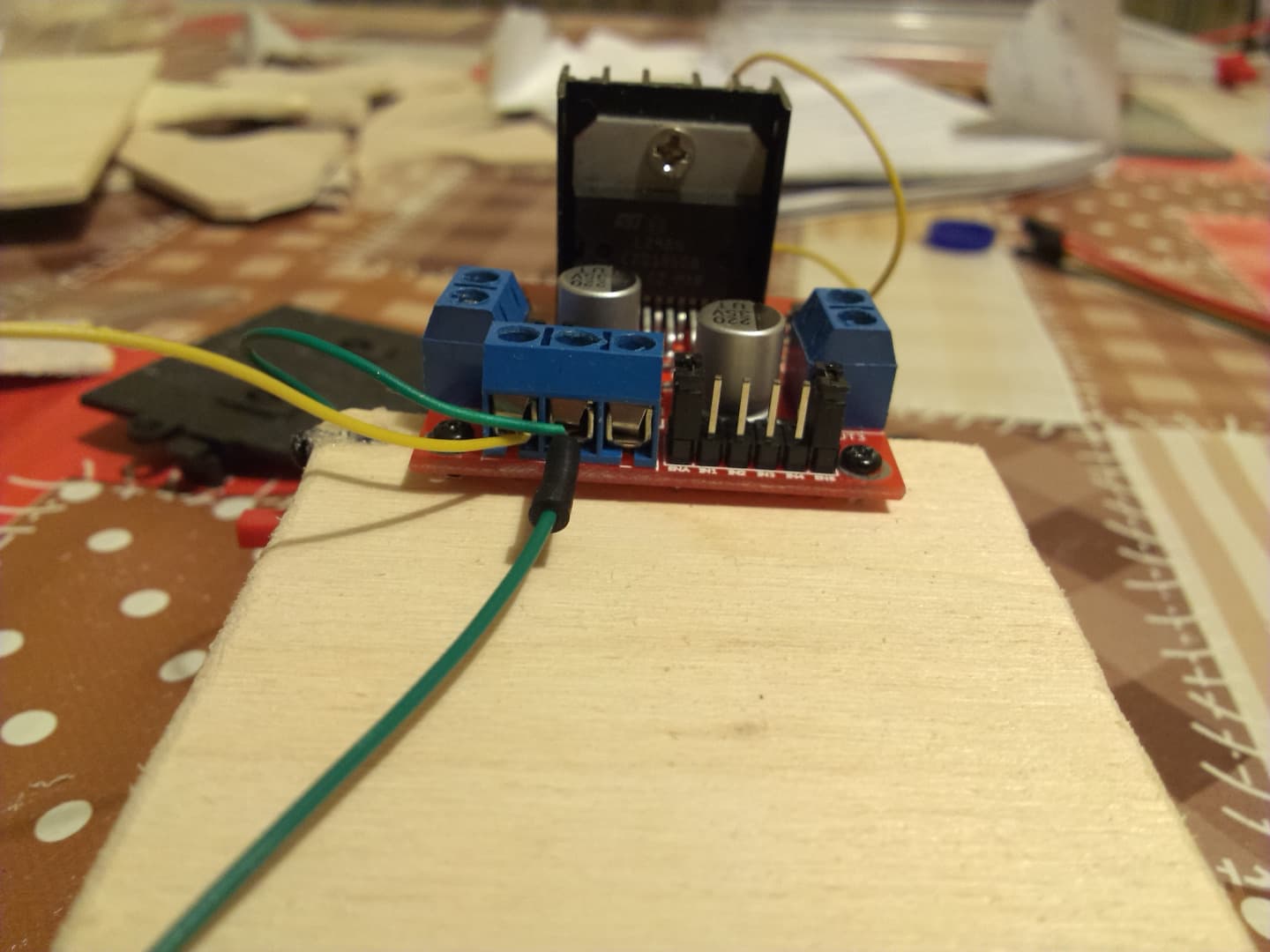

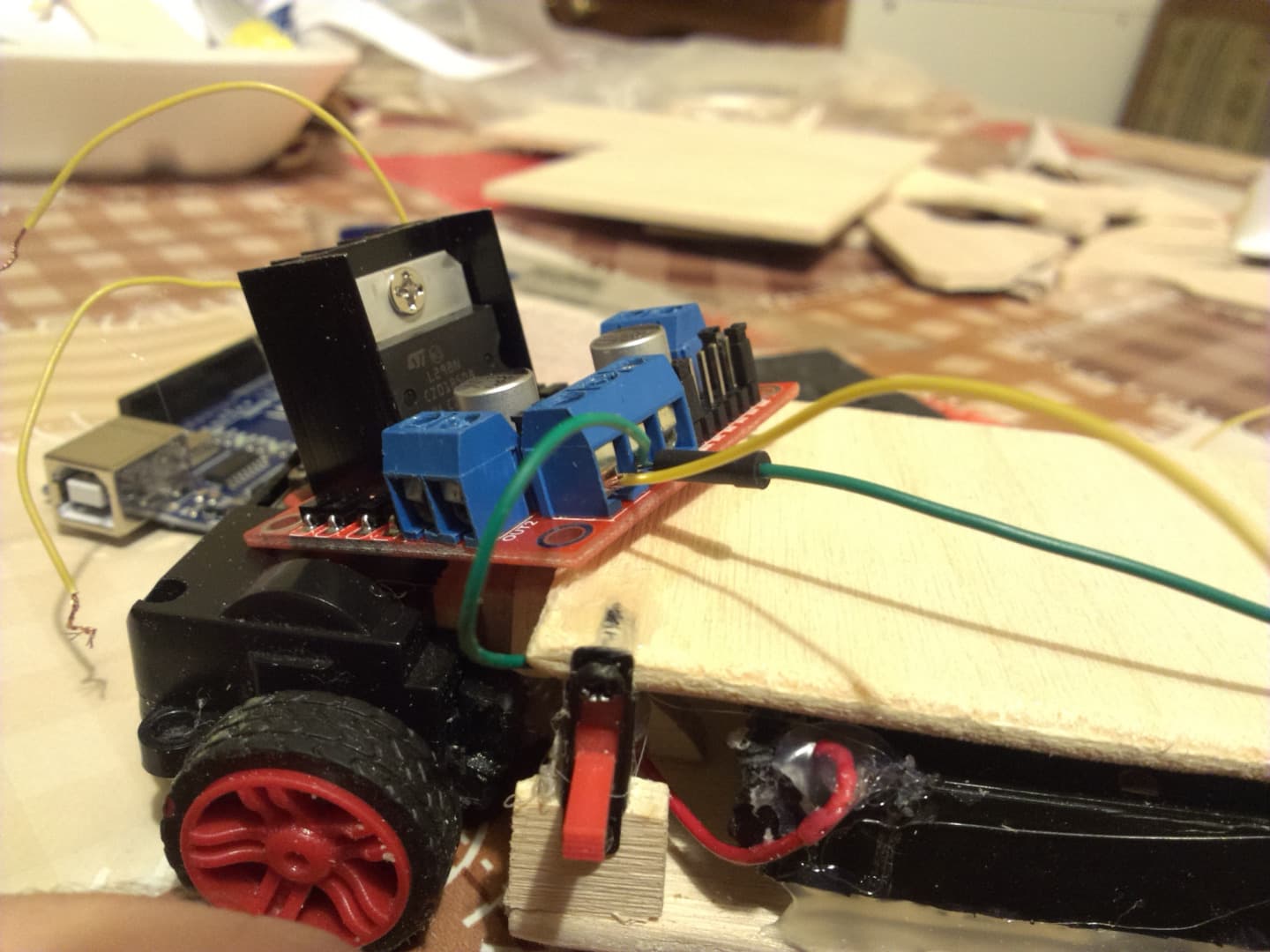

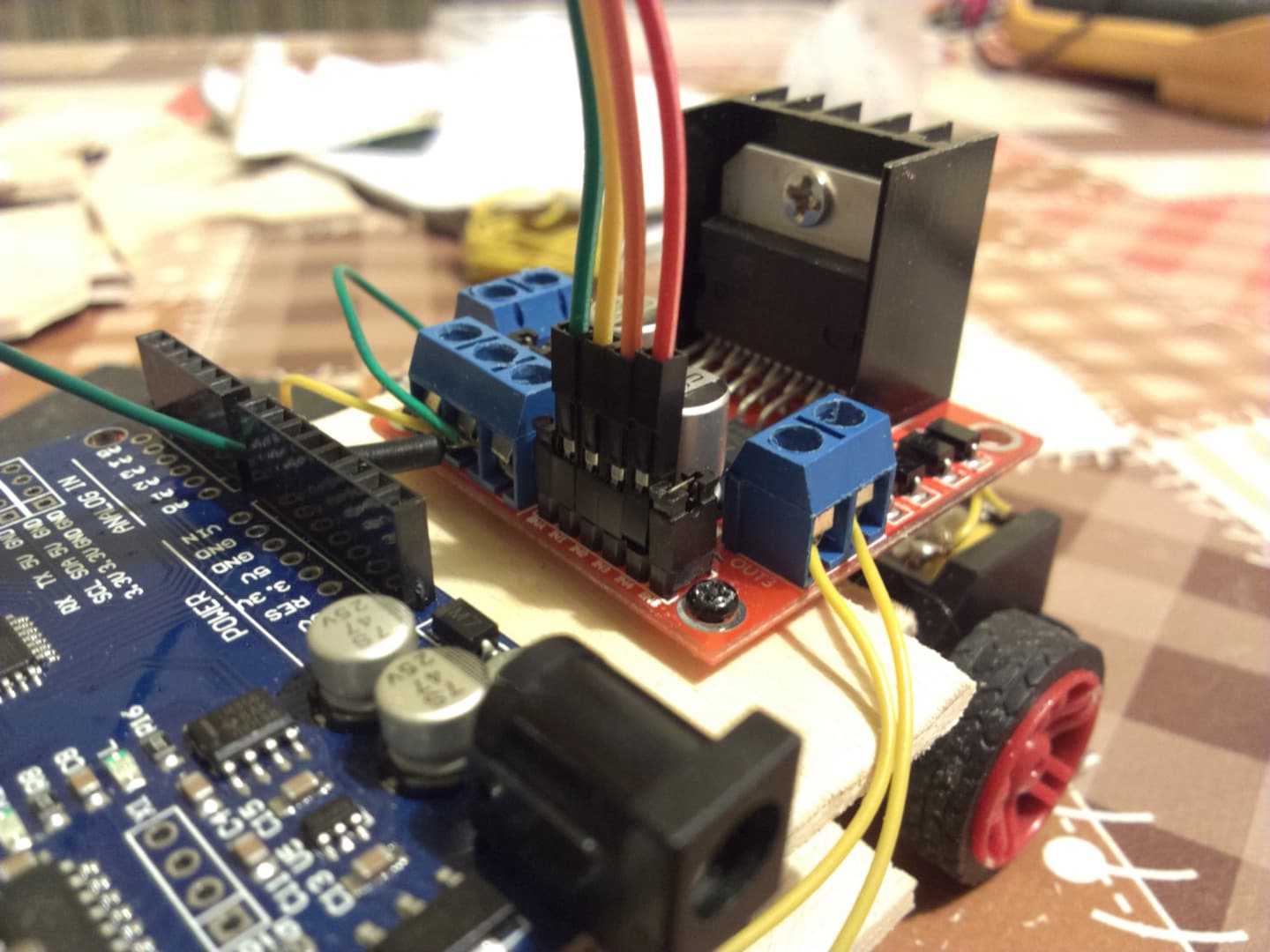

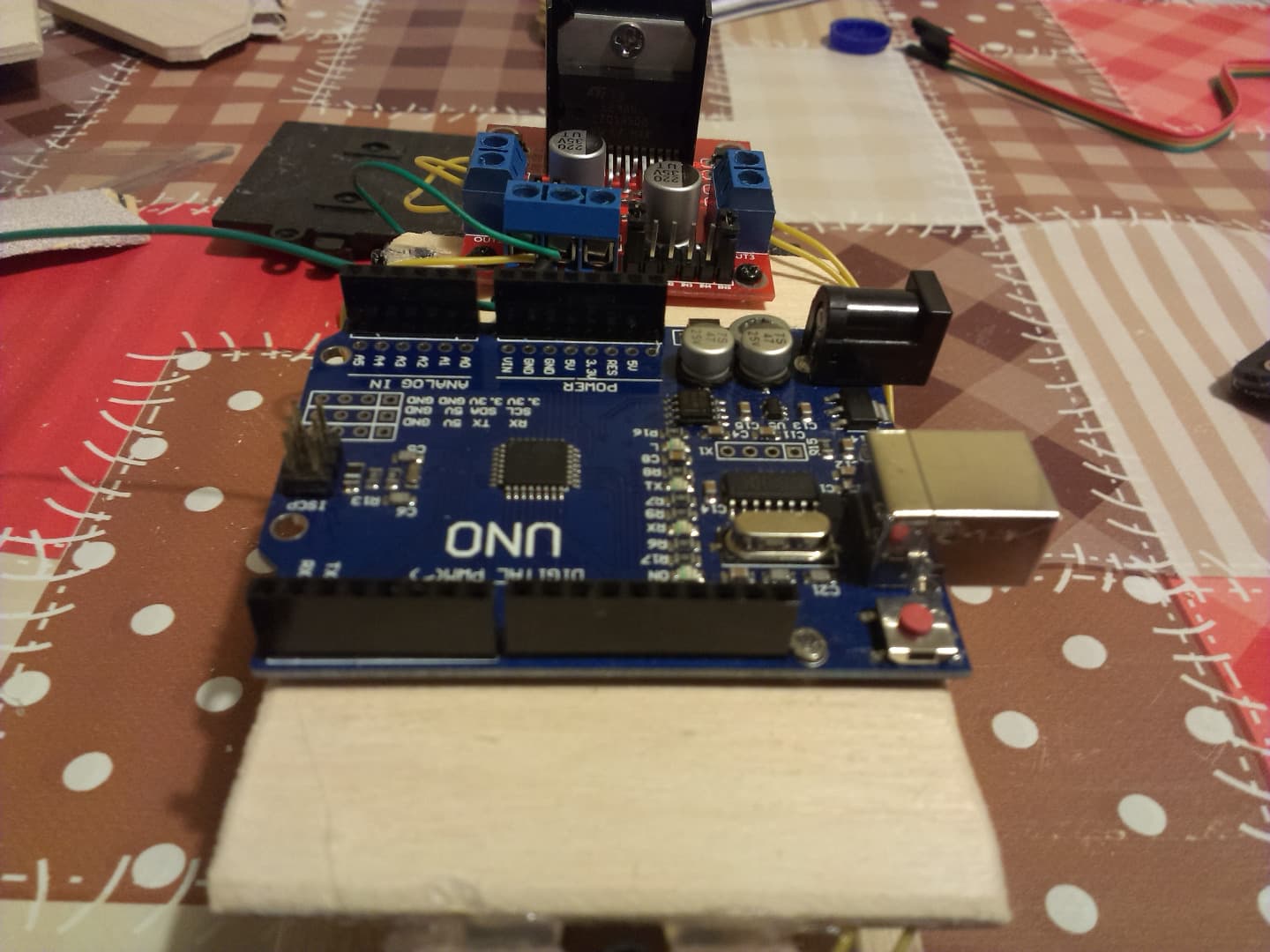

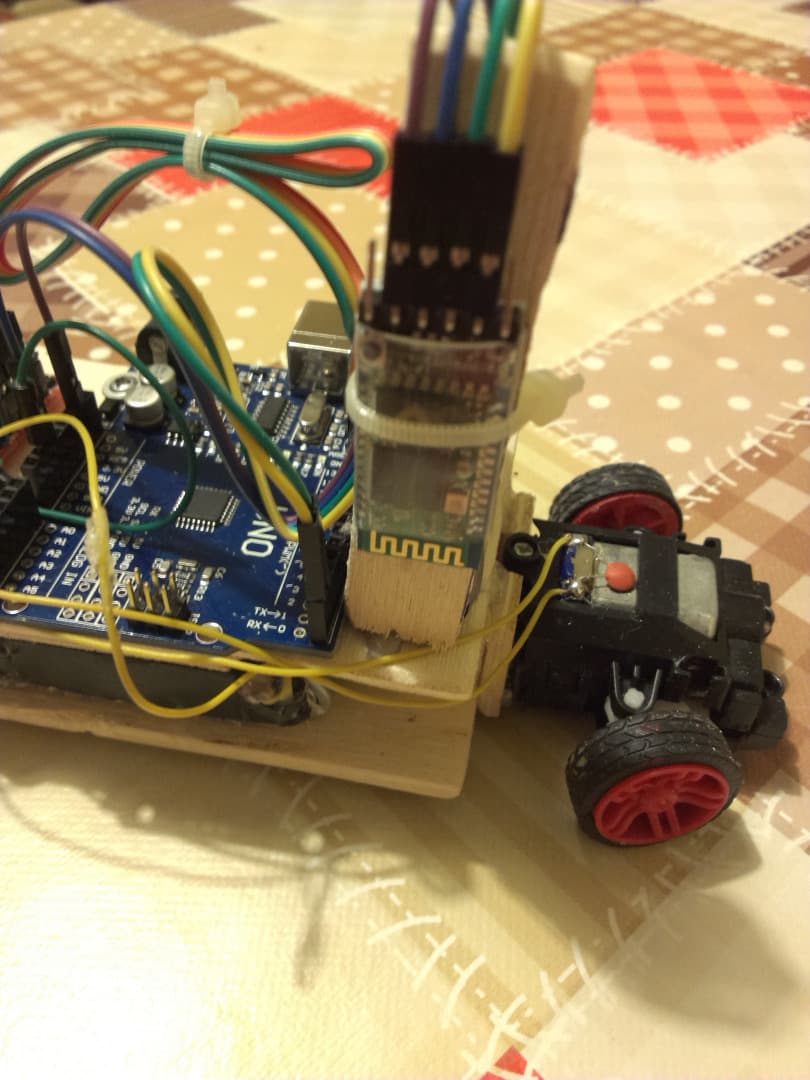

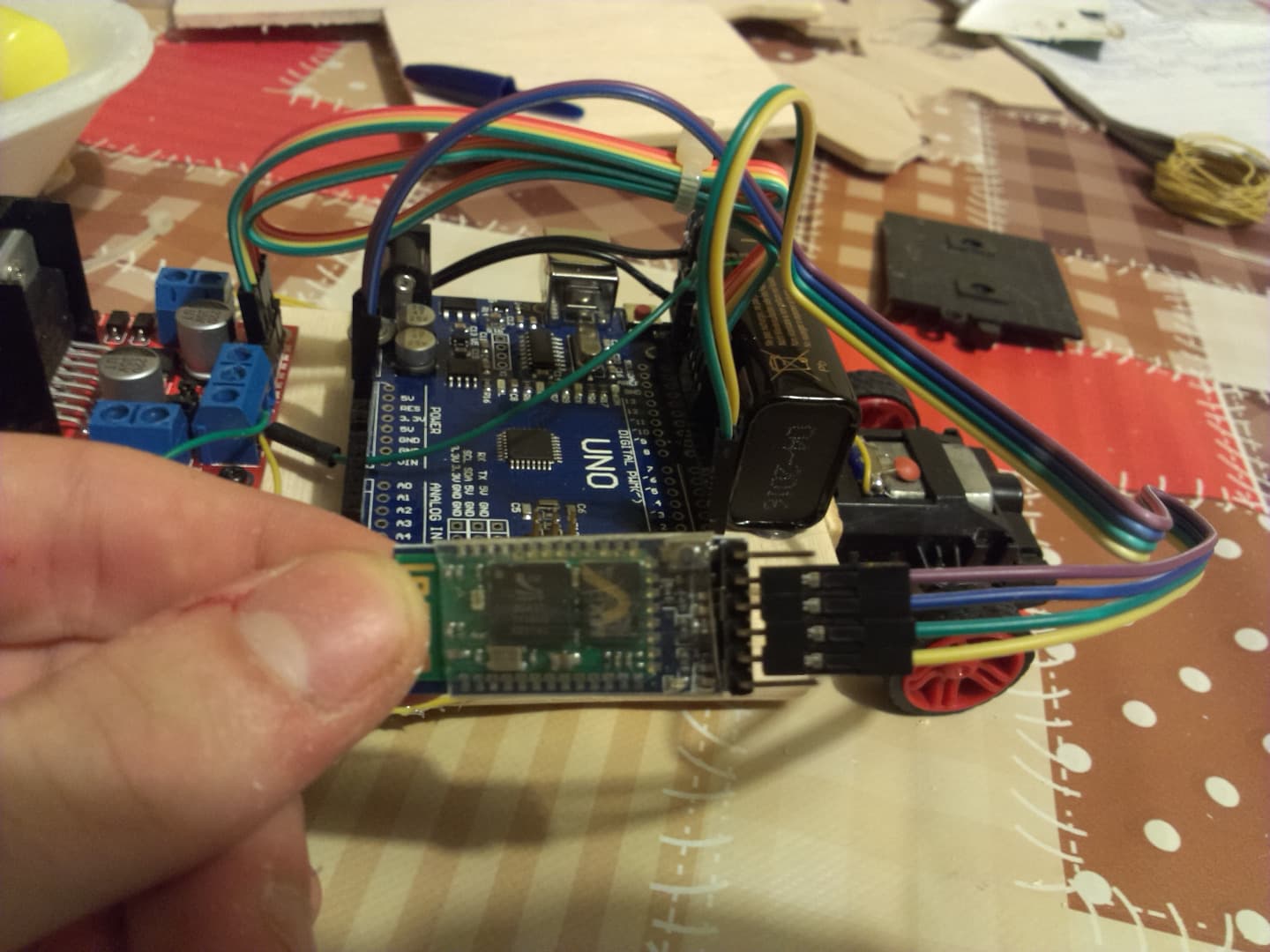

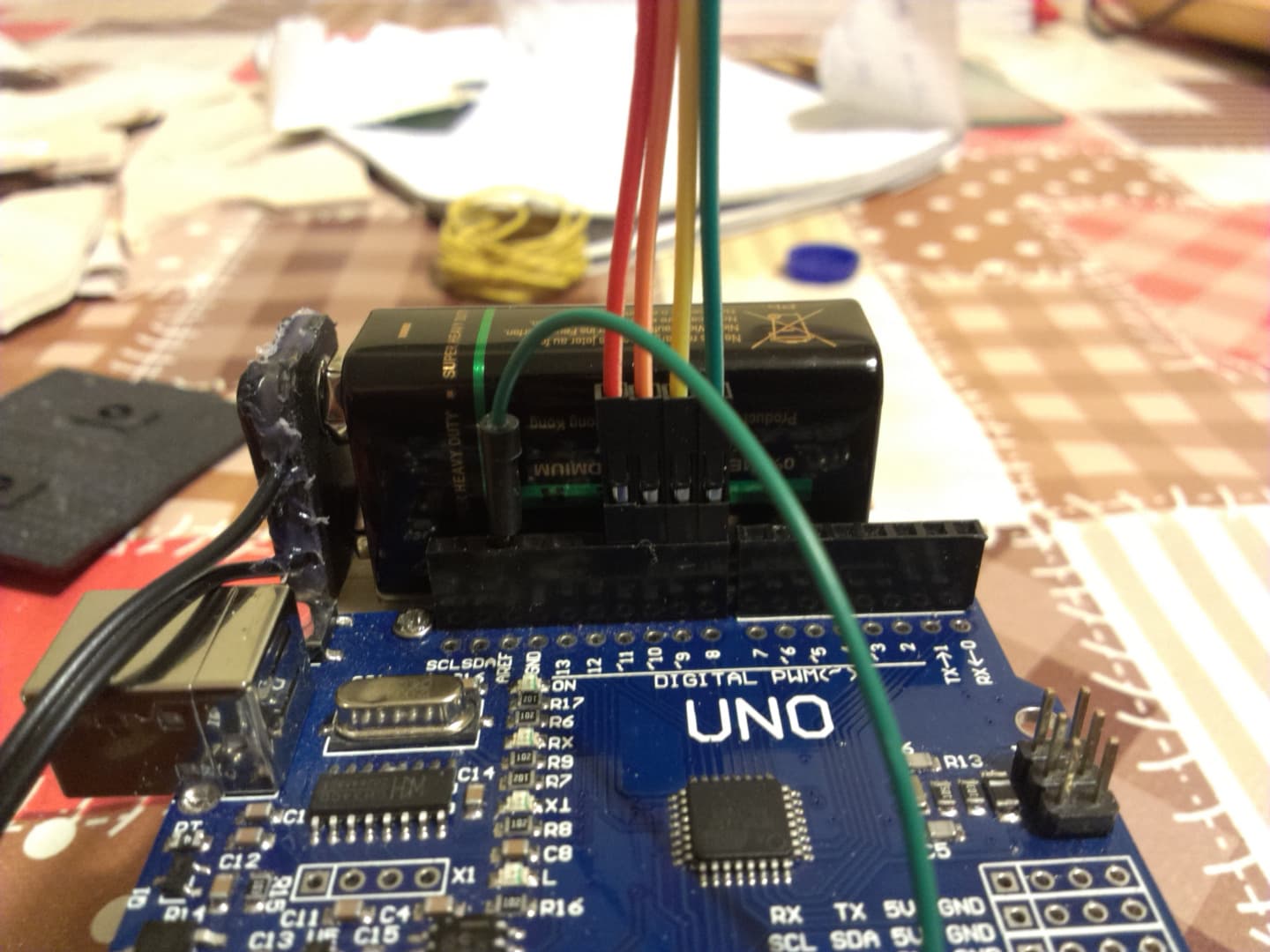

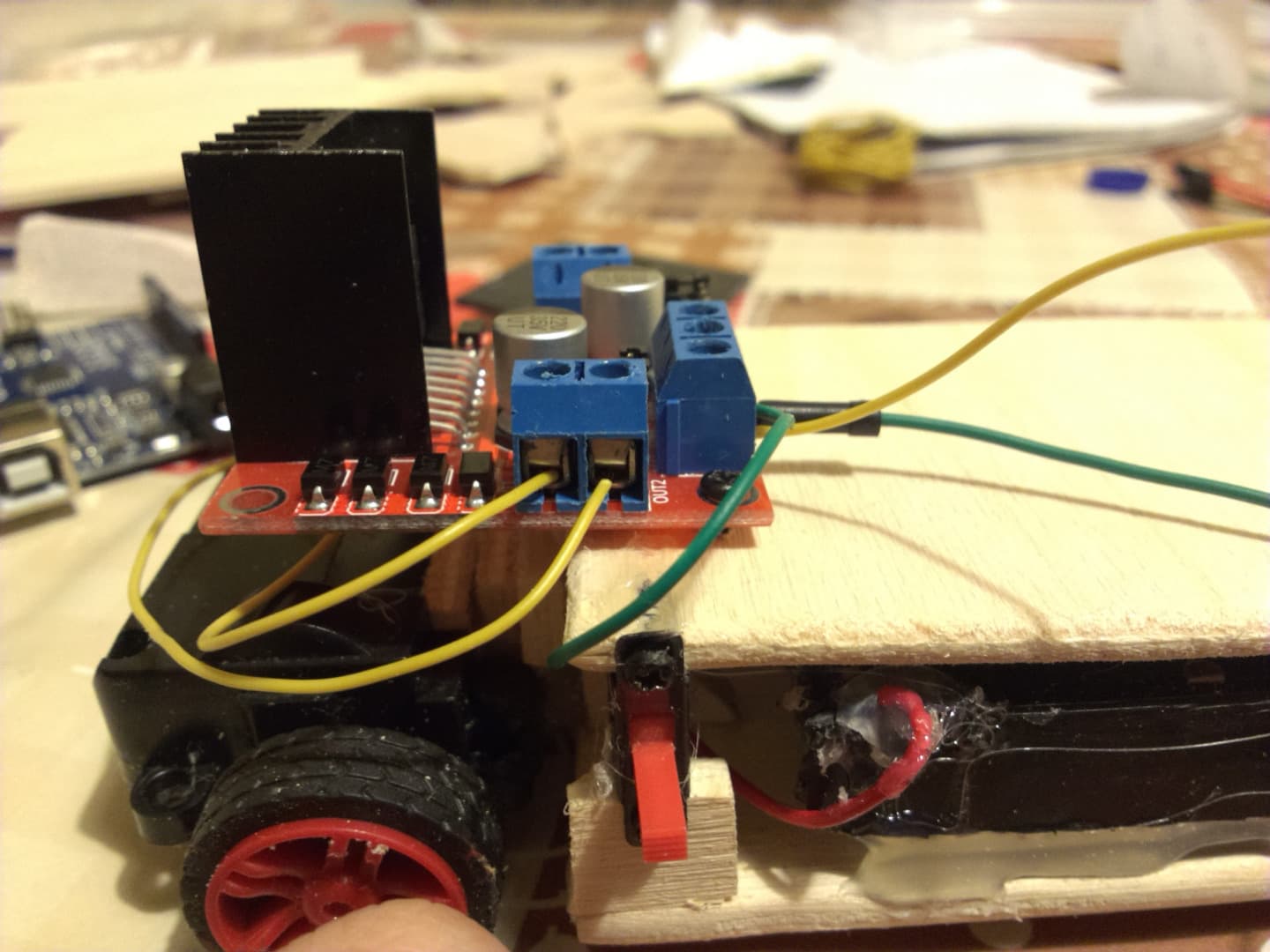

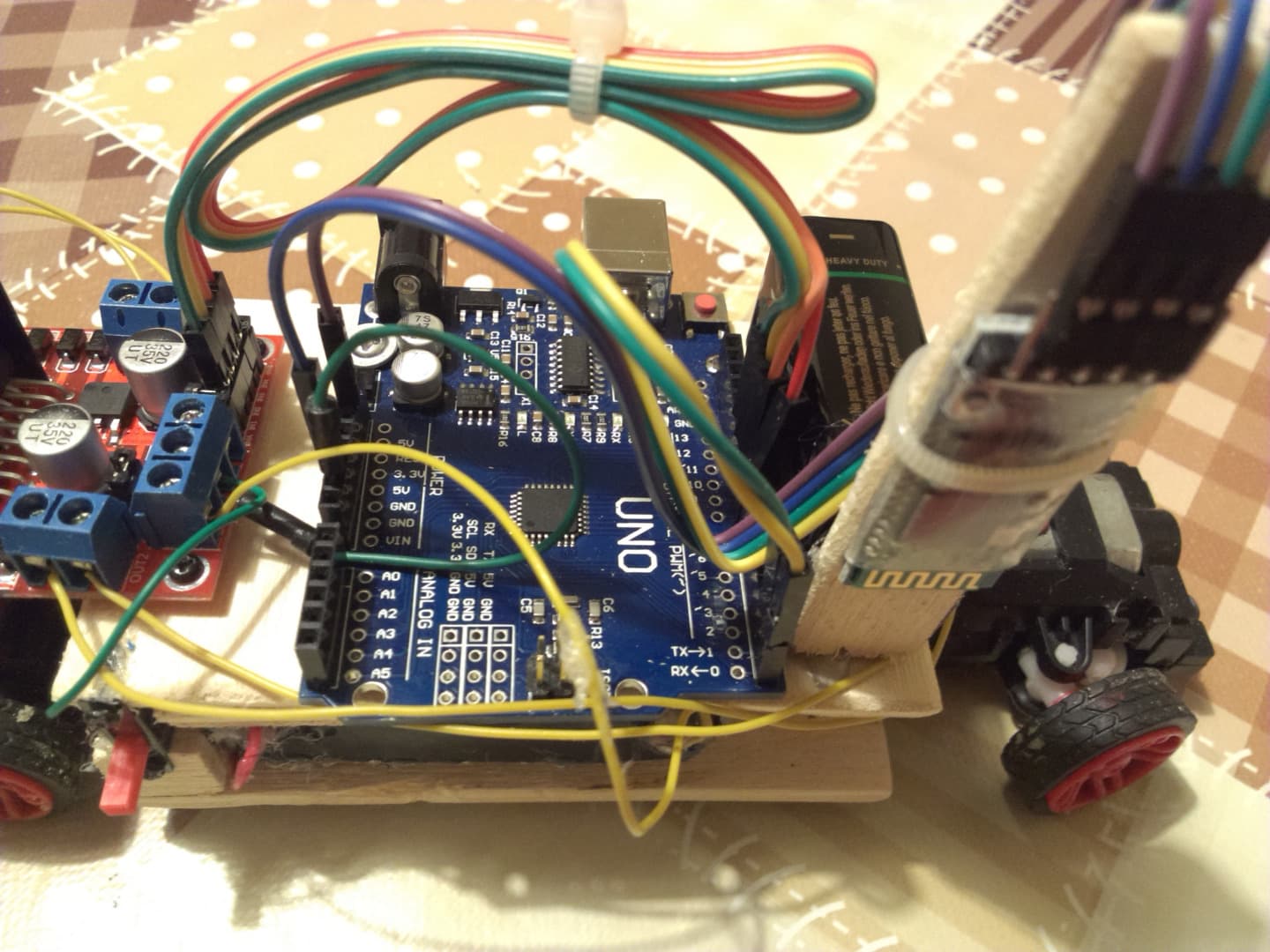

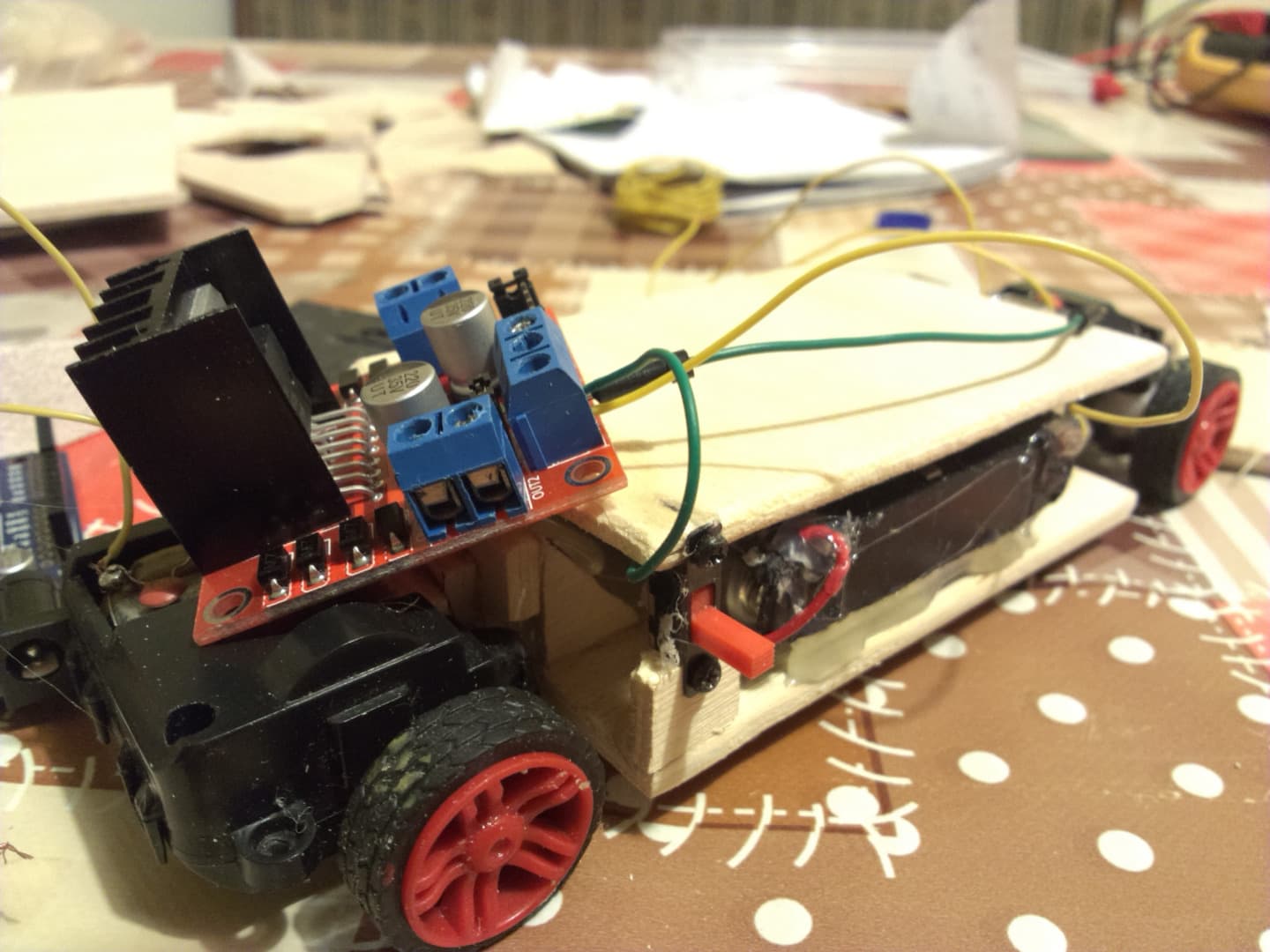

Connecting
Connecting
Connecting
Connecting
Connecting
+7

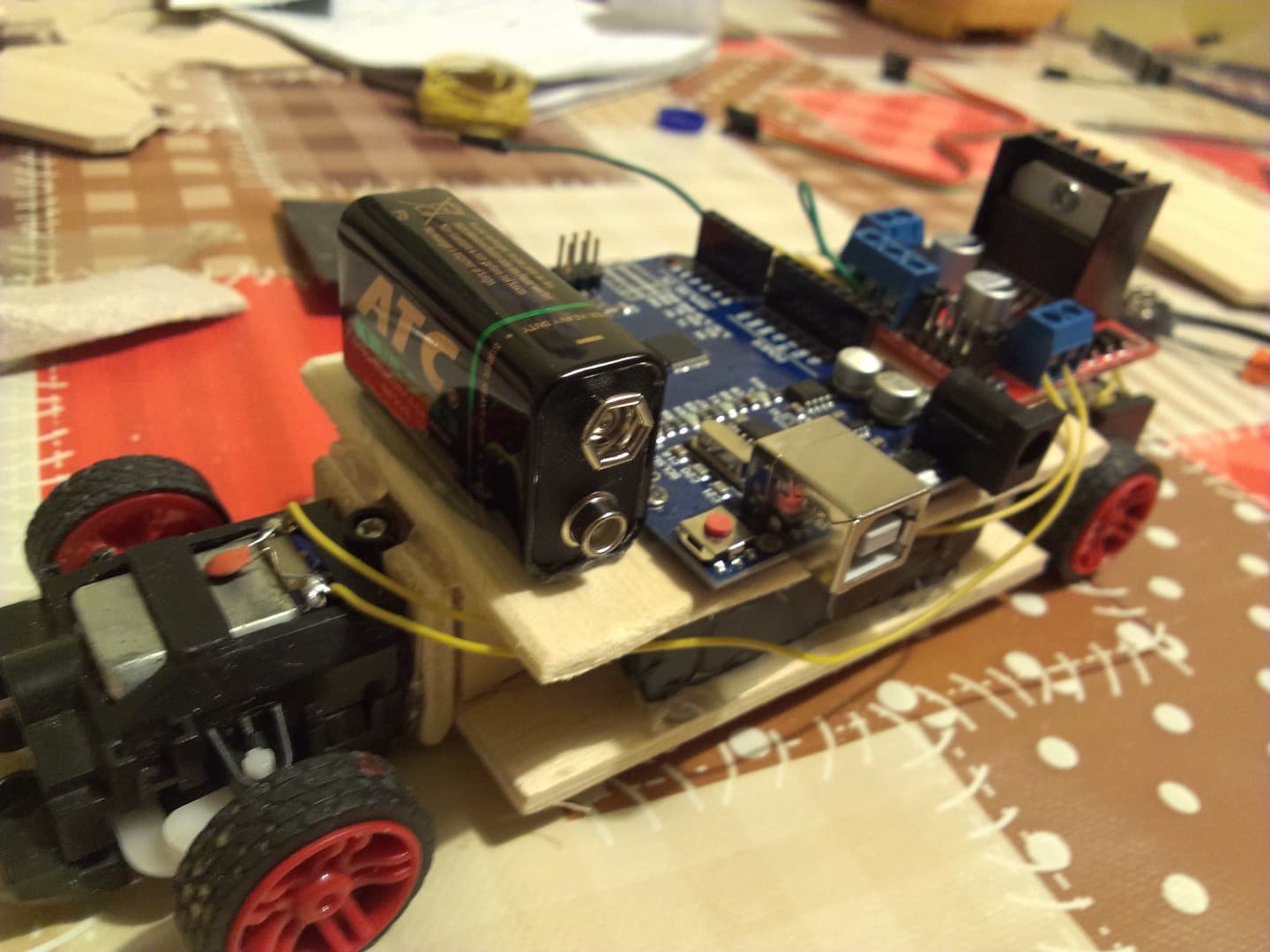

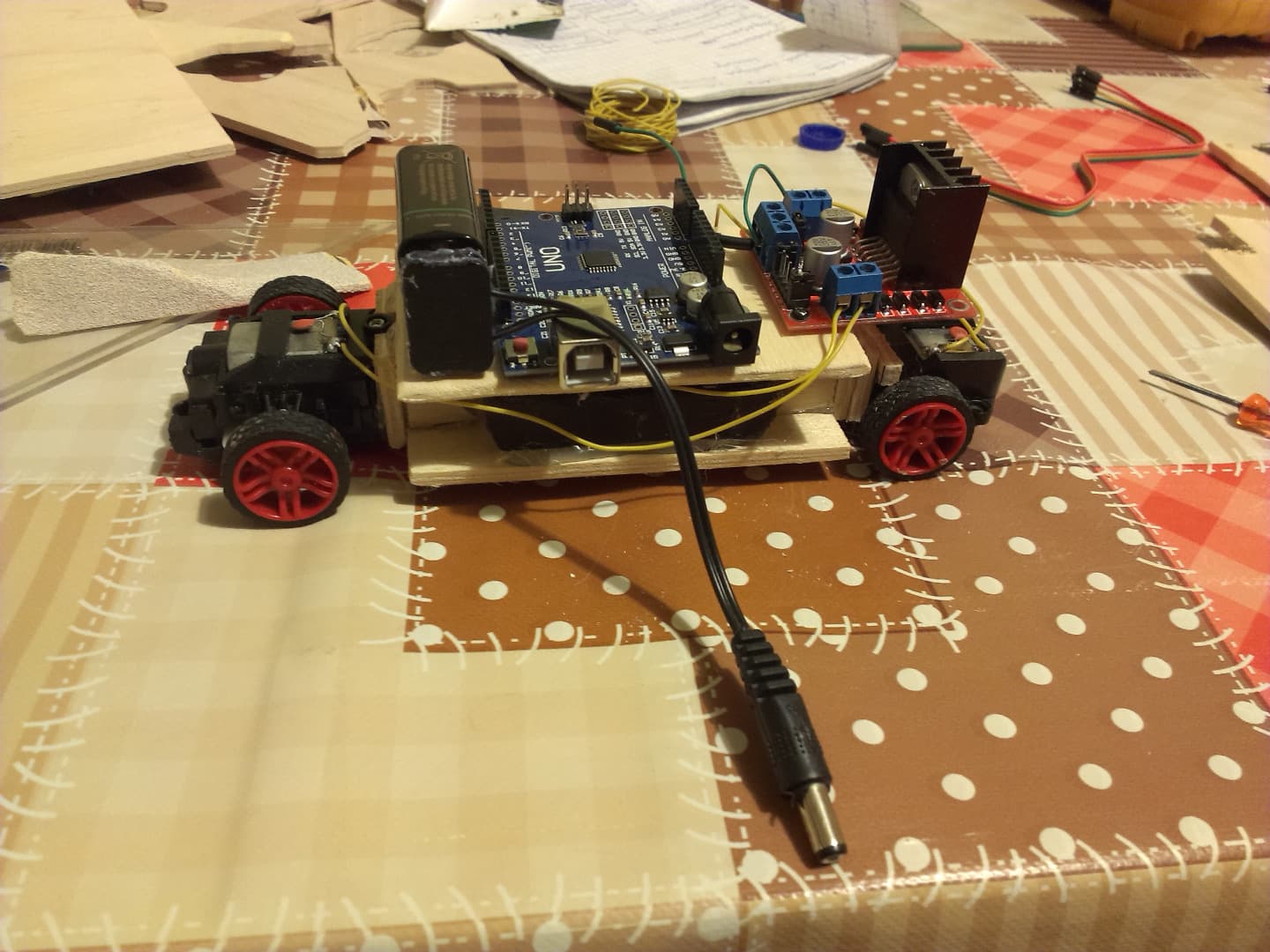

Connect wites like in prevous step.
4
Upload Code to Arduino
Upload Code to Arduino

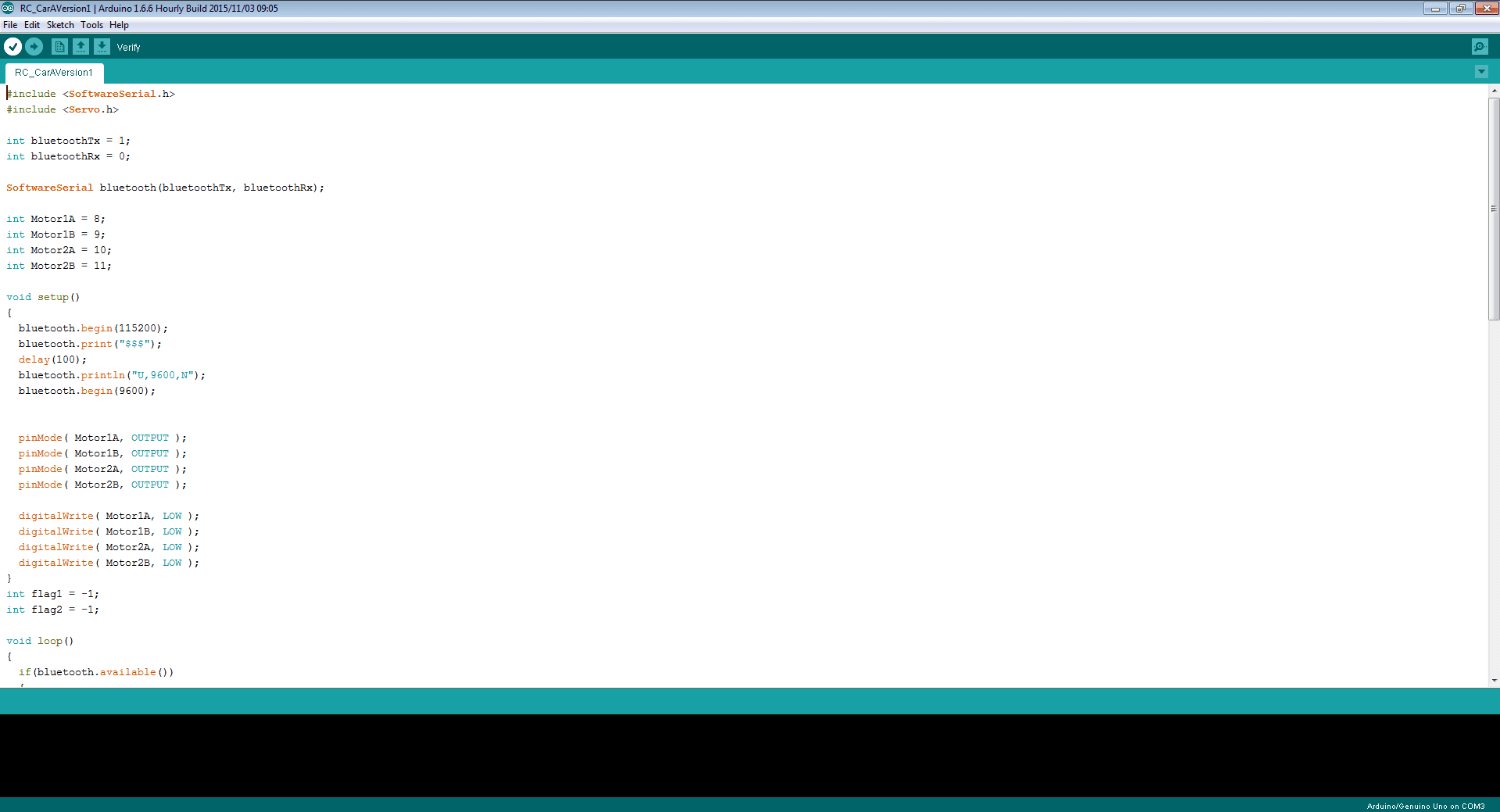

Connect your PC to Arduino and upload this code.
5

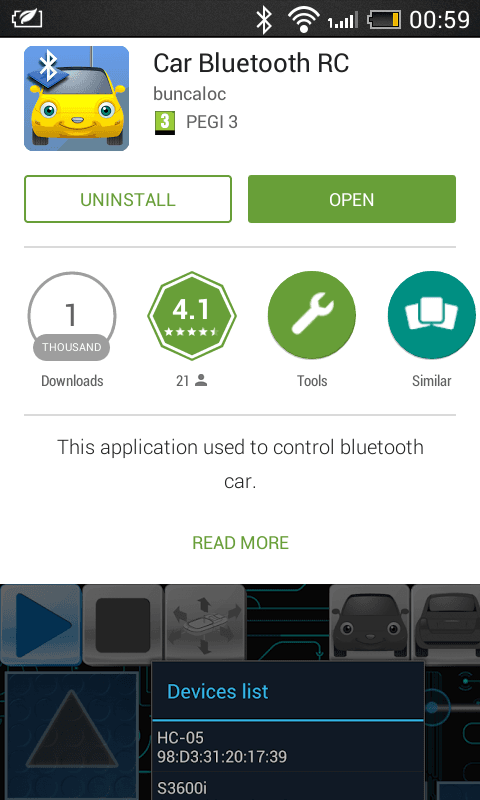

Download App
Download App
Download App

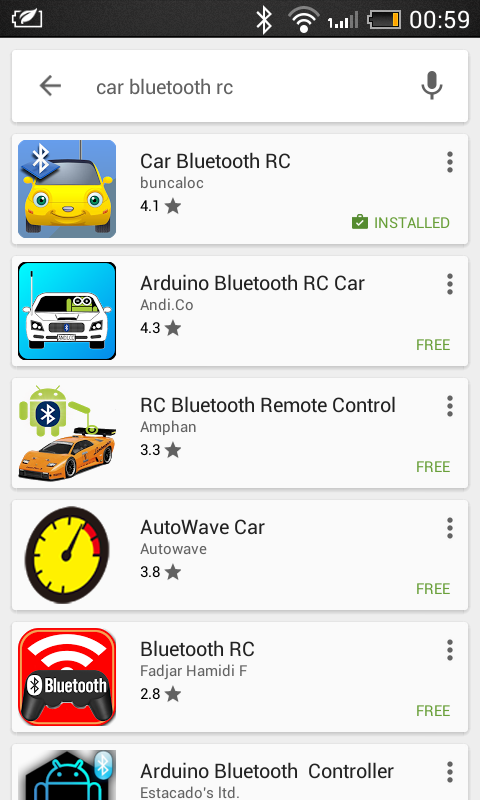

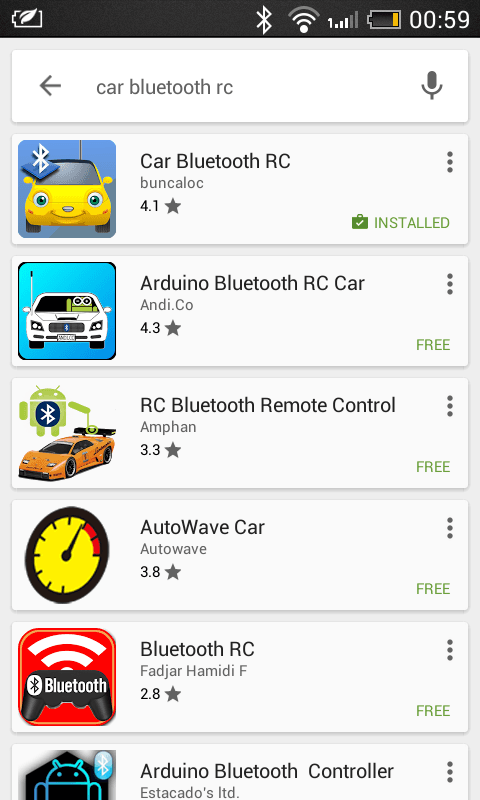

You can download app here:
https://play.google.com/store/apps/details?id=com.buncaloc.carbluetoothrc&hl=en
6

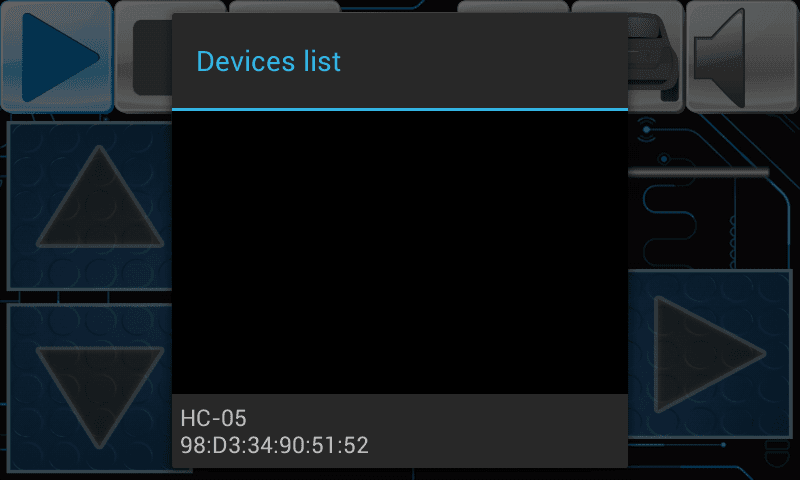

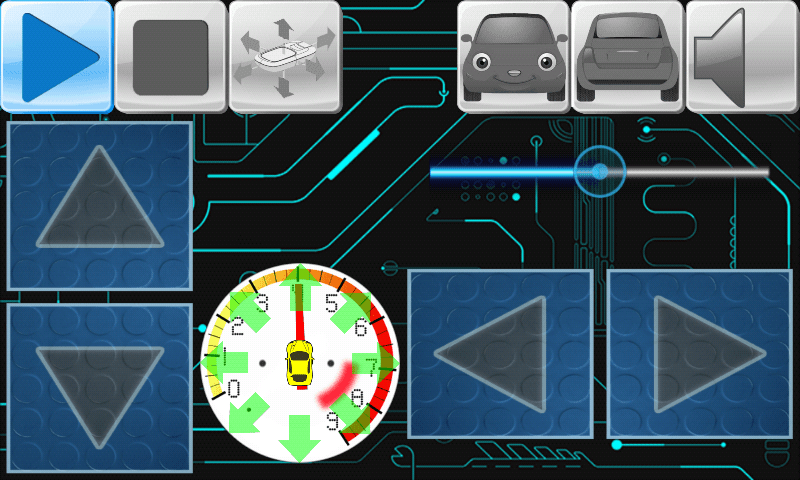

App
App
App
Turn on your car.
Open app, turn bluetooth on and connect it to the HC-05.
Conclusion
Special thanks to "Srpska Nauka", he helped me build this car.
